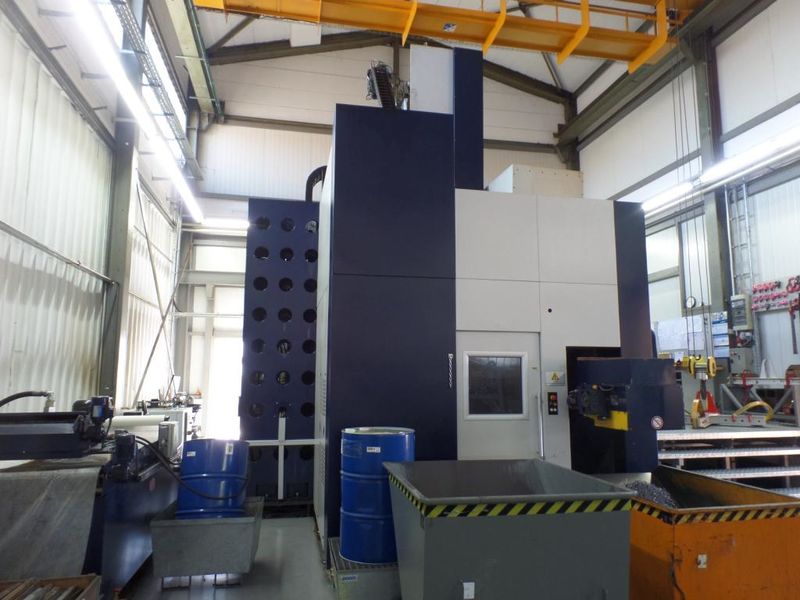

used Vertical Turret Lathe DANOBAT VTC-2500
| manufacturer: | DANOBAT |
| type: | VTC-2500 |
| built: | 2011 |
| control: | SINUMERIK 840 D solution line |

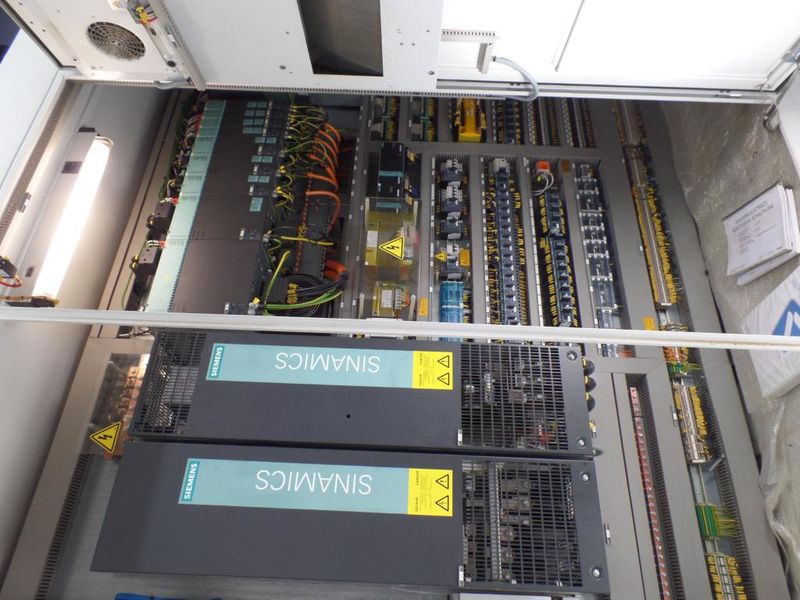

Our vertical lathe DANOBAT VTC 2500 is equipped with a Siemens Sinumerik 840D sl control, digital servo drives and the latest inverter generation Siemens Sinamics. The individual machine modules are made of grey cast iron and thus ensure increased rigidity during machining. With the 105 kW main drive, the VTC 2500 can process workpieces up to 2,500 mm in diameter and 20 tons in weight. Due to the electronically backlash-free clamped C-axis, the 48-fold tool magazine with automatic head change and the vertical milling attachment included in the scope of delivery, extensive drilling and milling operations are also possible on this carousel lathe. Our VTL Danobat VTC 2500 is in very good condition and has only approx. 6,100 operating hours.
Technical Equipment / Features
| working area: | |
| faceplate diameter | 2.100 mm |
| max. turning diameter | 2.500 mm |
| max. turning height | 1.600 mm |
| max. height under RAM | 1.800 mm |
| travel crossbar | 800 mm |
| travel RAM (Z-axis) | 1.500 mm |
| travel X-axis | 2.870 mm |
| faceplate: | |
| power on 100% ED | 105 kW |
| max. speed | 260 min-1 |
| max. workpiece weight | 20.000 kg |
| max. torque | 39.785 Nm |
| T-slot H 12, star shape | 28 mm |
| spindle bore | 160 mm |
| C-axis | |
| max. torque | 51.500 Nm |
| max. speed on milling | 3 min-1 |
| RAM with driven milling spindle: | |
| RAM measurement | 250 x 250 mm |
| travel RAM (Z-axis) | 1.500 mm |
| power milling drive 100 % ED | 30 kW |
| max. speed milling drive | 3.000 min-1 |
| max. torque milling drive | 1.200 Nm |
| vertical milling head | 160 mm |
| tool taper | SK 50 |
| length vertical milling head | 350 mm |
| max. spindle power | 30 kW |
| max. spindle speed | 3.000 min-1 |
| coolant supply internal and external |
| 48-fold tool changer |
Two disk magazine, mounted on the left and right side of the faceplate
Right side, 18 positions: Space for 2 pc. Turning tool head (equipped with one turning tool head), 2 pc. Milling head (equipped with one milling head), 7 pc. Turning tool holders horizontal with Capto C8, 7 pc. Turning tool holder vertical with Capto C8
Left side, 30 positions: Space for 8 pc. Turning tool holder horizontal with Capto C8, 8 pc. Turning tool holder vertical with Capto C8, 14 pc. SK 50 tool holder for milling and boring tools

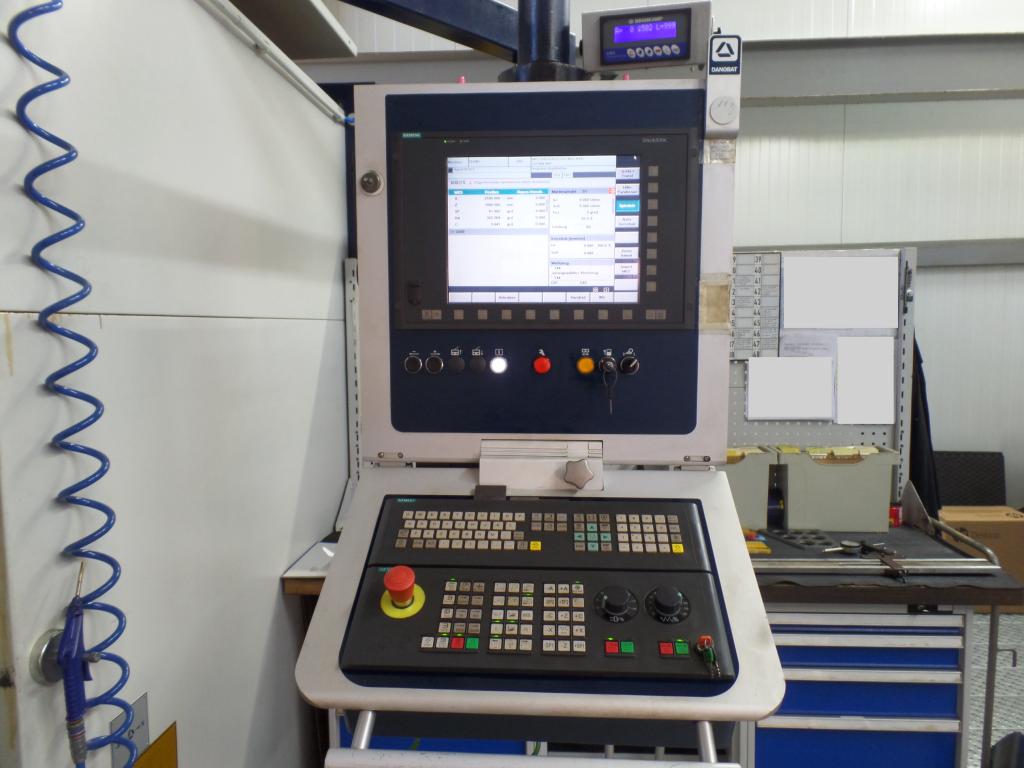

| CNC-control: | |
| SIEMENS SINUMERIK 840 D solution line | |
| PCU 50.3, NCU 572.5, 12,1" TFT monitor |
| accessories |
| faceplate Ø 2.100 mm, power105 kW alle drives in digital servo technology Fabr. SIEMENS CNC control SINUMERIK 840D sl coolant equipment with paper band filter 2 piece tool magazine left and right Chip conveyor longitudinal C-axis incl. driven tools adjustable crossbar – 800 mm enclosure open at top with automatic doors 1 piece faceplate Ø 2.100 mm 1 piece aditional face plate Ø 2.500 mm div. tool taper + div. driven tool tapers Ca. working hours: control ON 15.300 h, machine ON 12.800 h, program run 6.100 h |
