CNC Boring- and Milling Machine CASTEL GREEN
| manufacturer: |
CASTEL |
| type: |
GREEN |
| built: |
1997 |

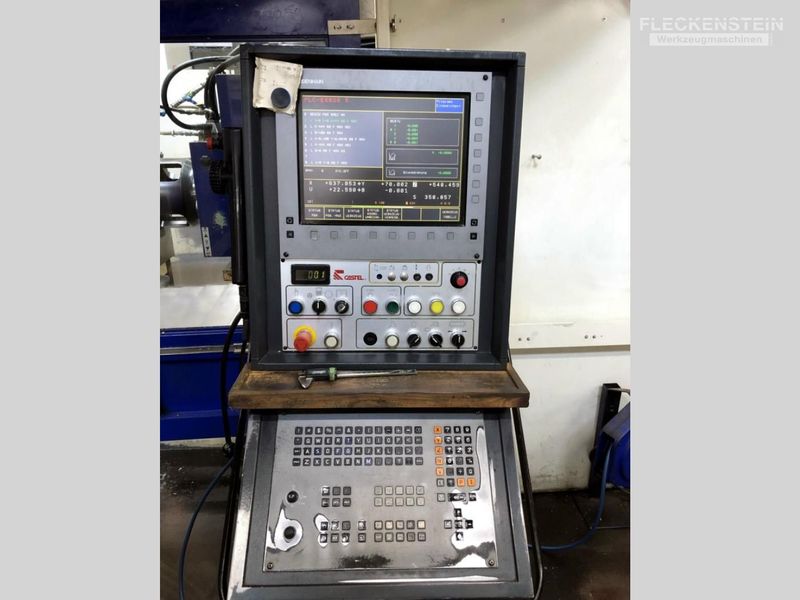

| control: |
HEIDENHAIN TNC 430 |
Technichal Equipment / Features
| X-axis, lateral movement table |
2.100 mm |
| Y-axis, vertical movement spindle unit |
1.500 mm |
| Z-axis, longitudinal movemet column |
1.000 mm |
| W-axis, movement quill |
500 mm |
| working spindle: |
|
| quill diameter |
110 mm |
| spindle taper DIN 6987140 |
ISO 50 |
| spindle power |
22 kW |
| spindle speed |
2.000 min-1 |
| pull stud |
form DIN 69871 |
| no. of gear steps |
2 |
| table: |
|
| max. workpiece weigth |
4.000 kg |
| clamping size |
1.100 x 1.300 mm |
| automatic positioning |
360 x 0,001° |
| feed range X-Y-W-Z axis |
0-10.000 mm/min |
| rapid feed X-Y- W-Z-axis |
10.000 mm/min |
| total weight |
23.000 kg |
| Length x Width x Height |
7,1 x 6,5 x 3,7 m |
| euqipment: |
support bearing
manual milling head
coolant tank with pump |
