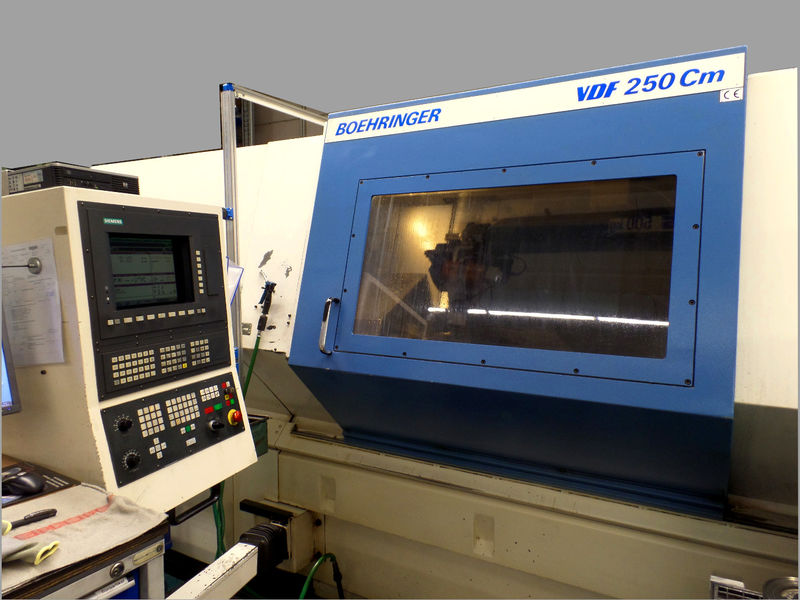

CNC-Lathe BOEHRINGER VDF 250 Cm
Details
| Make: | BOEHRINGER |
| Type: | VDF 250 Cm |
| Year of construction: | 1997 |
| Steering: | SIEMENS SINUMERIK 840 C |
Equipment & accessories
CNC Lathe for turning of chuck parts
- Pivoting control panel

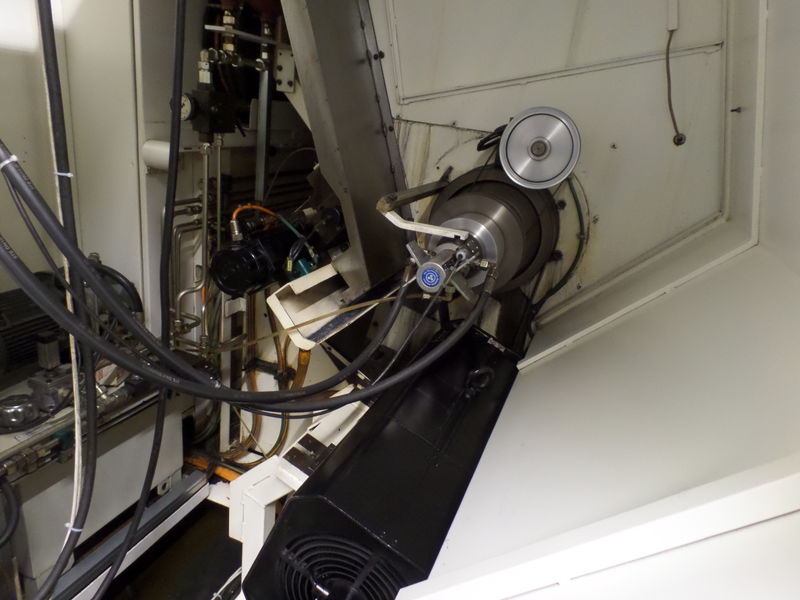

- Pressing oil full clamping cylinder make FORKARDT
- Hydraulic system make HYDROKRAFT

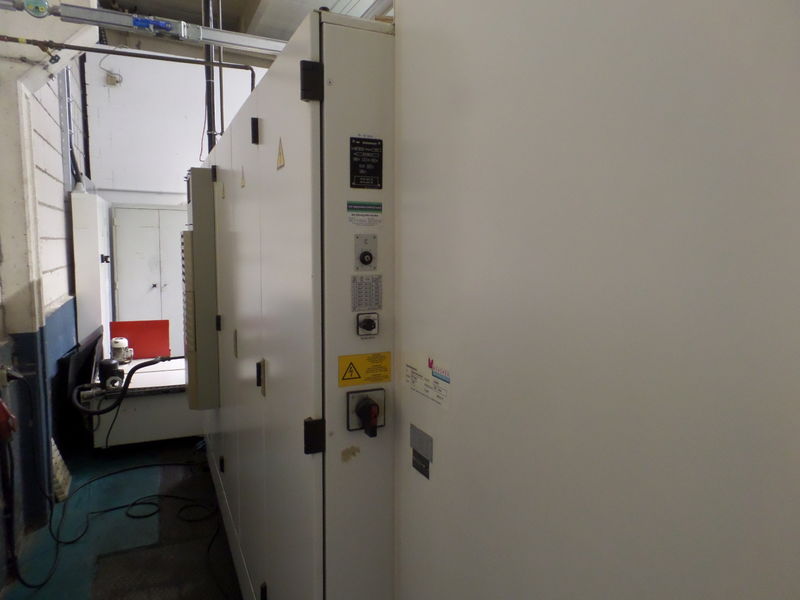

- Switch cabinet with cooling unit and temperature controller, make RITTAL
- Chip conveyor with tank capacity 325l, ejection right
- 1 pc. 3-jaw power chuck

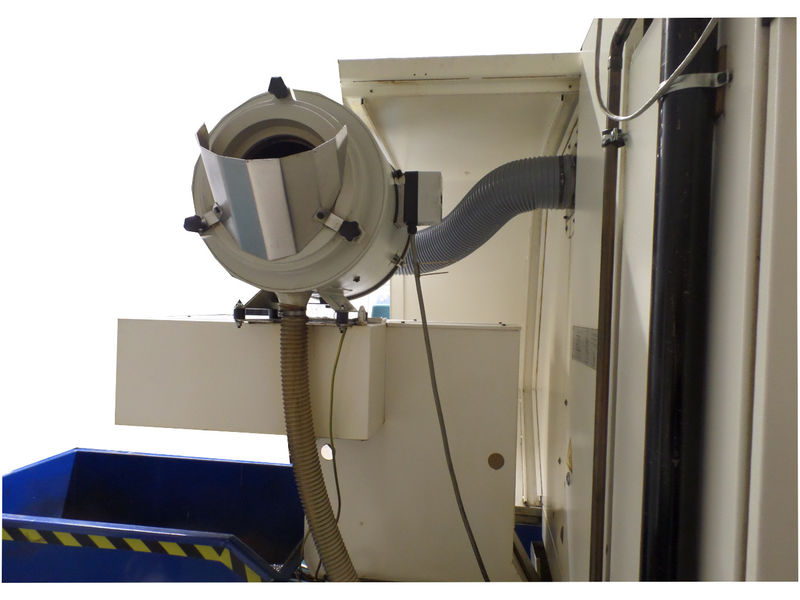

- Oil mist extraction

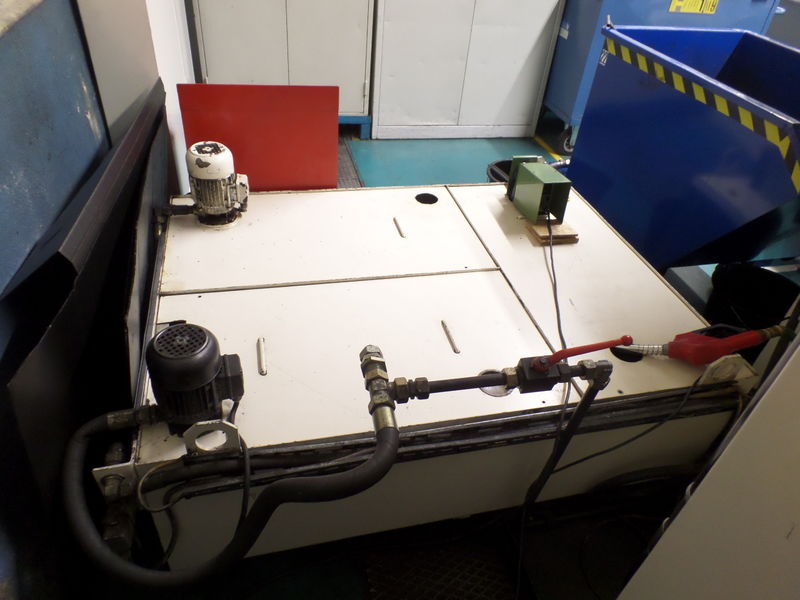

- Coolant system with tank capacity 600l, pump pressure Omax.=5.5 bar, flow rate
- Q=60l/min, pump capacity P = 1.1 kW
- Execution as chuck machine without tailstock
- Operating hours: 43956h, spindle hours: 14525
| Working area | |
| Swing Ø over cover | 550 mm |
| Swing Ø over cross slide | 480 mm |
| Axial travel (X-axis) | 405 mm |
| Longitudinal travel (Z-axis) | 1.099 mm |
| Max. turning length | 1.000 mm |
| Turret | |
| Number of seats | 12 piece |
| tool holder | VDI 50 DIN 698800 |
| Driven tools | No |
| Headstock | |
| Spindle head size | 8 DIN 55026 |
| Diameter front bearing | 150 mm |
| Spindle bore | 103 mm |
| Max. chuck diameter | 315 mm |
| Max. drive power, 50% ED | 53 kW |
| Max. torque | 780 Nm |
| Speed range | 30-3.000 min-1 |
| Feeds | |
| Cross slide (X-axis) | 10.000 mm/min |
| Longitudinal slide (Z-axis) | 10.000 mm/min |
| Rapid traverse X-axis | 10 m/min |
| Rapid traverse Z-axis | 10 m/min |
| Max. feed force | 15 kN |
| Dimensions, weight | |
| Machine dimensions L x W x H approx. | 5400 x 3200 x 2400 mm |
| Machine weight approx. | 11.000 kg |
