CNC - Bettfräsmaschine ZAYER KFCU-5000-AR
Details
| Make: | ZAYER |
| Type: | KFCU-5000-AR |
| Built: | 2007 |

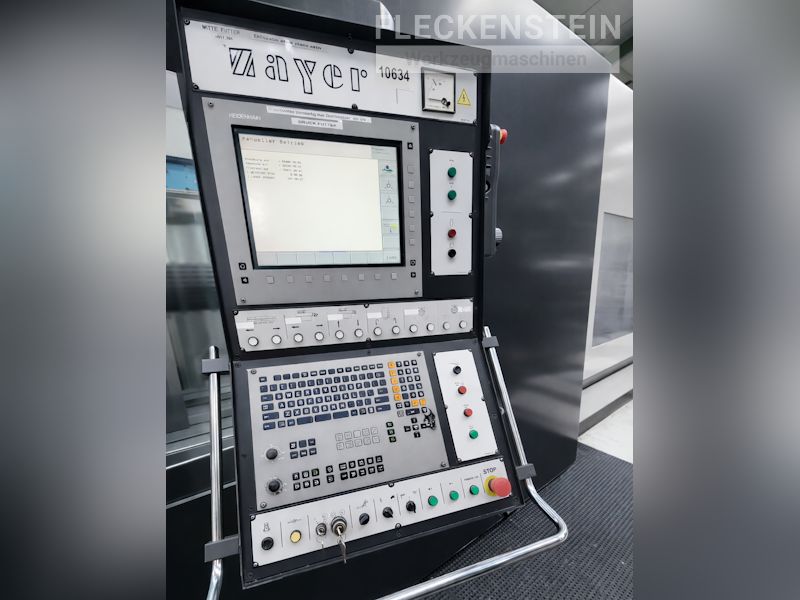

| Control: | HEIDENHAIN iTNC 530 |
Description

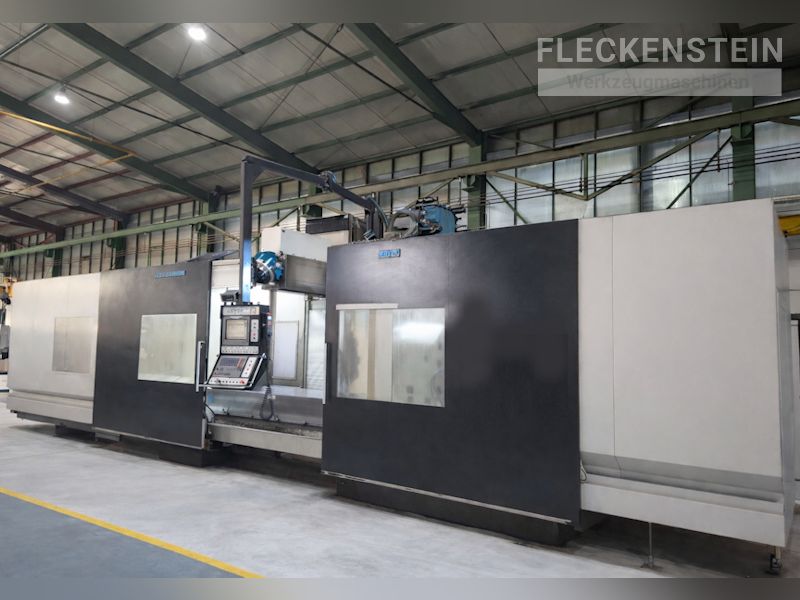

ZAYER KFCU-5000-AR CNC Bed Type Milling Machine with 4th Axis – Heidenhain iTNC 530

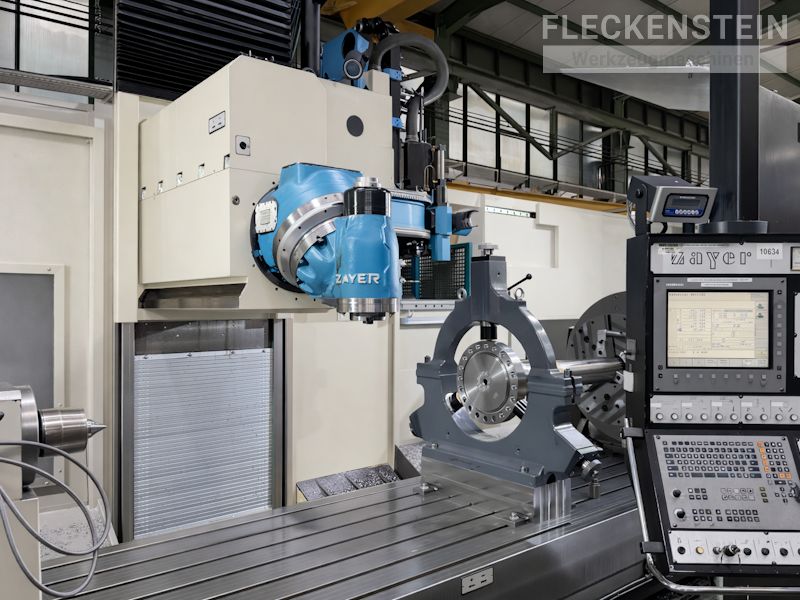

The used ZAYER KFCU-5000-AR CNC bed type milling machine is a powerful heavy-duty machining solution designed for precise milling of large workpieces. Equipped with the reliable HEIDENHAIN iTNC 530 control, a 37 kW universal milling head, and an automatic tool changer with 60 positions, this machine is ideal for demanding applications in mechanical engineering, mold making, and heavy industry.
With large travels of 4,700 x 1,250 x 1,500 mm and a 5,000 x 1,000 mm clamping table, the machine can handle workpieces up to 10,000 kg. It is also equipped with a fully integrated 4th axis PEISELER AWU800 rotary table (as an option) and high-pressure coolant system, and multiple chip conveyors.
Thanks to a comprehensive reconditioning process , the machine cannot be compared to standard used machines on the market, either technically or visually.
This making it an excellent choice for companies looking for a reliable used CNC bed milling machine for heavy machining.
| Travels | |
| Table movement (X-Axis) | 4.700 mm |
| Head cross movement (Y-Axis) | 1.250 mm |
| Head vertical movement (Z-Axis) | 1.500 mm |
| Clamping table | |
| Clamping surface | 5.000 x 1.000 mm |
| Max. workpiece weight | 10.000 kg |
| Feeds | |
| X-, Y- and Z-Axis, stepless | 6 - 15.000 mm/min |
| Rapid traverse in X / Y / Z | 25.000 mm/min |

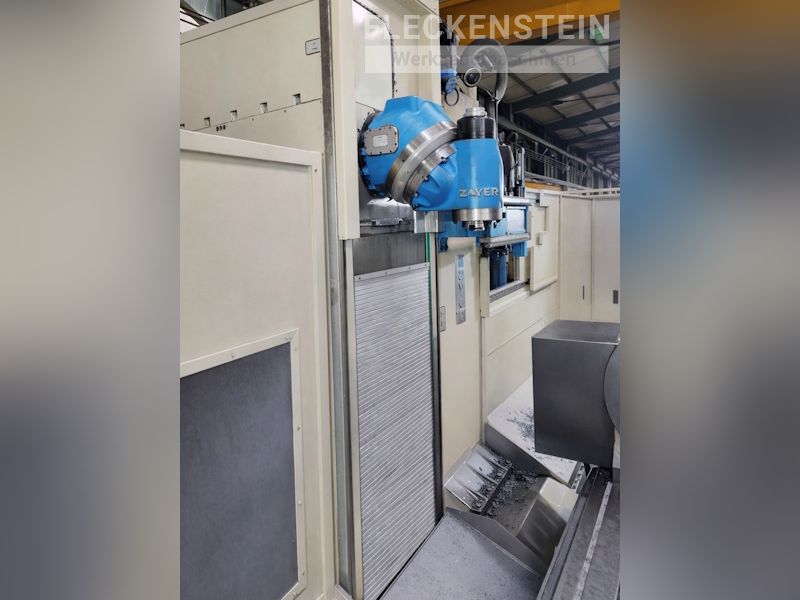

| Zayer-NC-Milling Head stepless | |
| Power | 37 kW |
| Speed range, stepless | 35 - 4.500 min-1 |
| Tool taper | SK50 |

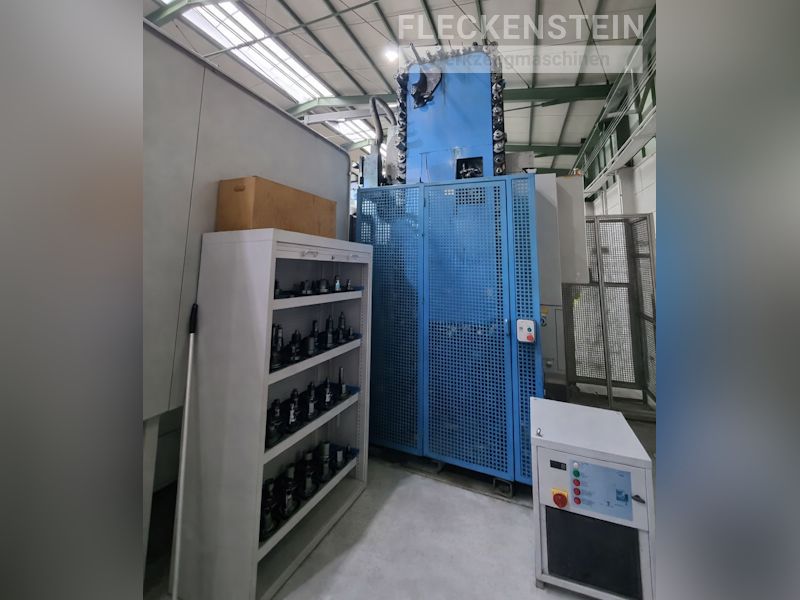

| Automatic Toolchanger | |
| Tool positions | 60 Places |
| Accessories | |
| Coolant system with belt filter and two coolant circuits | 1.100 l, 40 bar IKZ |
| Chip conveyor in front and back of the machine table | 2 pieces |
| Cip conveyor on the left side of the machine | 1 piece |

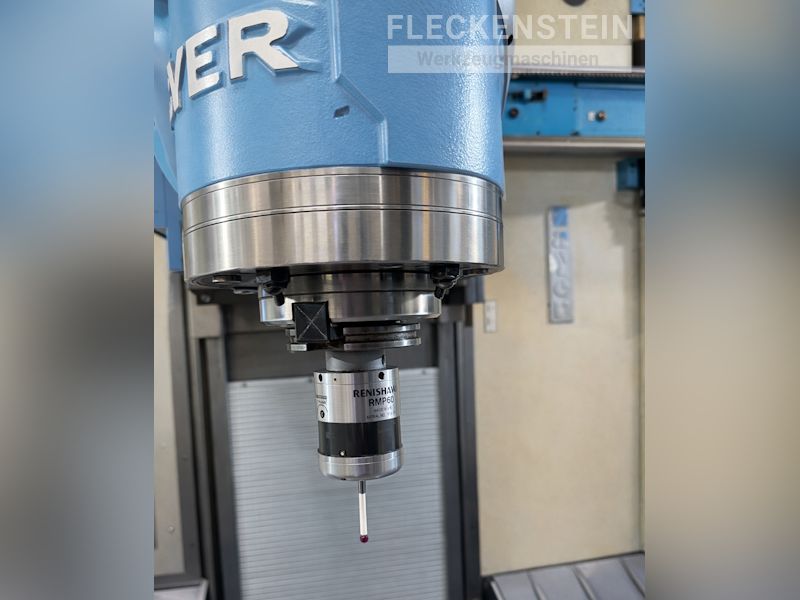

| 3D Measuring probe | in tool changer |

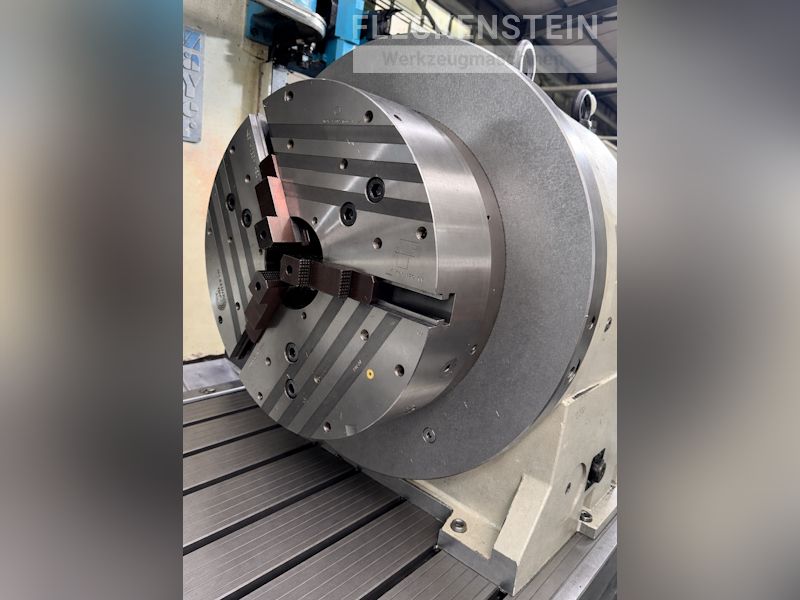

| If required: | 4. Axis with PEISELER AWU800 rotary table |
