CNC - Bettfräsmaschine MTE BF 4200 (Kopie)
Details
| Make: | MTE |
| Type: | BF 4200 |
| Built: | 2008 |
| Control: | HEIDENHAIN iTNC 530 HSCI |
Description

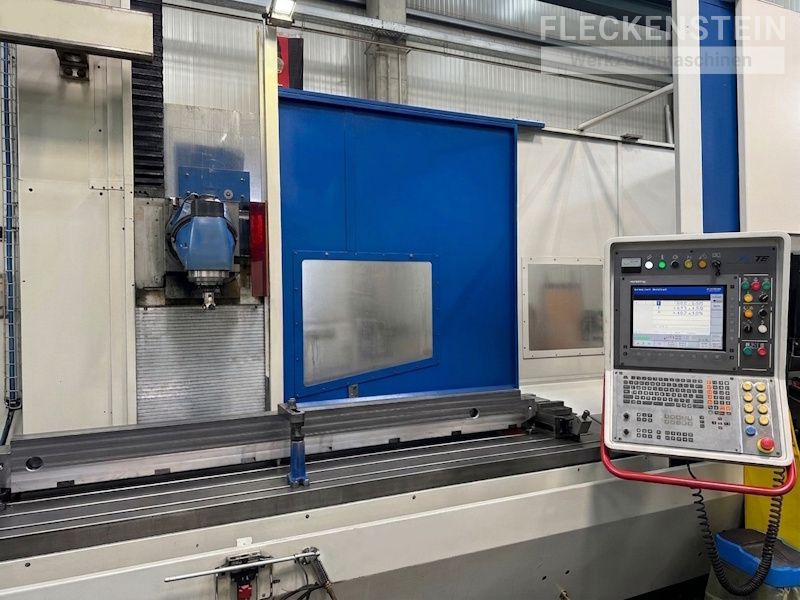

The CNC bed milling machine MTE BF 4200 is a powerful and reliable solution for machining large and heavy workpieces with high precision. Featuring extensive travel distances of 4,000 mm (X-axis), 1,200 mm (Y-axis) and 2,000 mm (Z-axis), along with a robust clamping table supporting up to 13,000 kg, this machine is ideal for demanding applications in mechanical engineering and heavy-duty manufacturing.
Equipped with the proven HEIDENHAIN iTNC 530 control system, a high-performance 30 kW spindle drive and a 60-position automatic tool changer, the machine ensures maximum efficiency and flexibility in complex machining processes. Precision guideways, digital drive systems and direct measuring systems guarantee excellent accuracy and dynamic performance.
The machine has undergone comprehensive mechanical and visual refurbishment, ensuring high operational reliability and making it a cost-effective alternative to a new machine. It is ready for immediate use in high-performance production environments.
| Travels | |
| Table movement (X-Axis) | 4,000 mm |
| Head cross movement (Y-Axis) | 1,200 mm |
| Head vertical movement (Z-Axis) | 2,000 mm |
| Clamping table | |
| Clamping surface | 4,200 x 1,000 mm |
| Max. workpiece weight | 13,000 kg |
| Number and size of T-slots | 22 x 7 mm |
| Distance of T-slots | 140 mm |

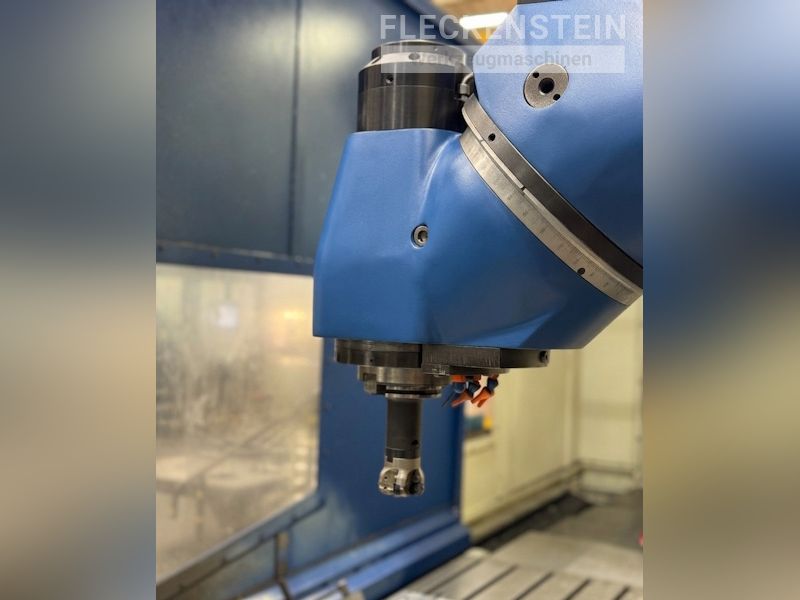

| NC-Milling Head | |
| Swiveling front/rear section | 2.5 x 2.5 ° |
| Power | 30 kW |
| Max. torque | 1460 Nm |
| Speed range, stepless | 40 – 3.000 min-1 |

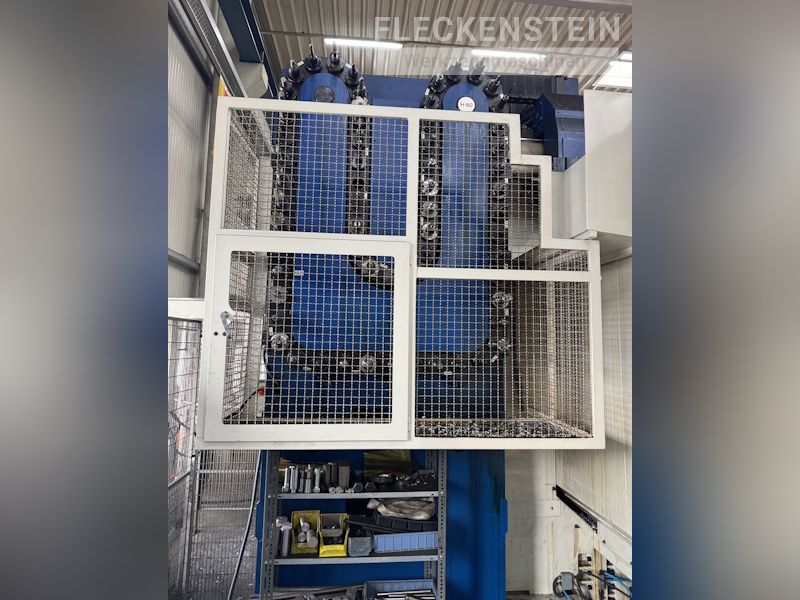

| Automatic Toolchanger | |
| Tool positions | 60 |
| Max. tool diameter | 125/240 mm |
| Max. tool length | 350 mm |
| Max. tool weight | 20 kg |
| Dimensions and weight | |
| Footprint Maschine | ca. 10.2 x 5.3 m |
| Total height | ca. 4.1 m |
| Machine weight | ca. 20,000 kg |
