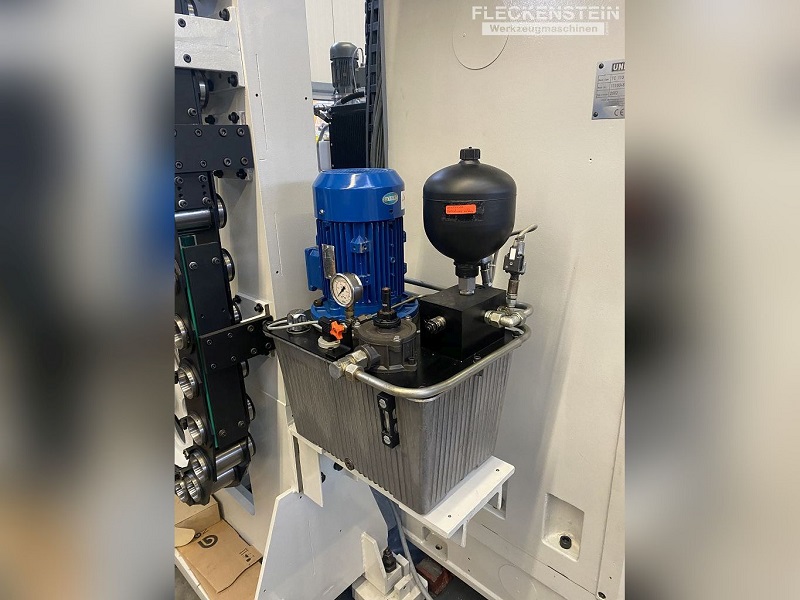

Horizontal boring and milling machine UNION TC 110
| manufacturer: |
UNION |
| type: |
TC 110 |
| built: |
2002 / 2023 |
| control: |
HEIDENHAIN iTNC 530 |
Our retrofit project UNION TC-110 is a 5-axis table-type boring mill for effective multi-sided machining of complex small and medium-sized workpieces. The horizontal boring and milling machine in cross table design is equipped with a main spindle and quill Ø 110mm and a tool magazine with 60 pockets and automatic tool change system.
The working table with a clamping surface of 1,250x1,600mm can carry workpieces weighing up to 6 tons. The main spindle has a maximum torque of 2,012 Nm and delivers 22kW at 3,000rpm. A coolant system with belt filter system and internal and external coolant supply complete the equipment package of this versatile UNION TC-110 boring mill.
Technichal Equipment / Features
| X-Axis, table cross adjustment |
2.000 mm |
| Y-Axis, vertical adjustment headstock |
1.600 mm |
| Z-Axis, longitudinal adjustment table |
1.500 mm |
| W-Axis, quill adjustment |
550 mm |
| B-Axis, positioning |
360.000 x 0,001° |

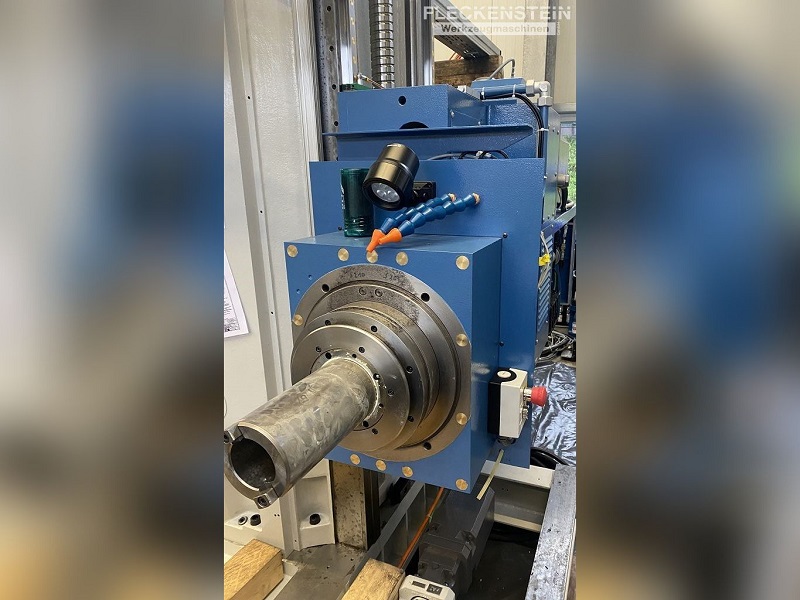

| headstock with main spindle: |
|
| Spindle diameter Ø |
110 mm |
| Fixed spindle throat, length |
300 mm |
| Fixed spindle throat, diameter |
260 mm |
| smallest distance, Spindle edge to table center |
50 mm |
| Lowest position above table surface |
0 mm |
| Tool holder (short taper acc. to DIN 69871) |
ISO 50 |
| Drive power S1 (100%) / S6 (60%) |
22/27 kW |
| Max. torque at spindle |
2.012 Nm |
| Spindle speed range, stepless adjustable |
5-3.000 min-1 |
| NC-Rotary Table: |
|
| Clamping surface |
1.600 x 1.250 mm |
| Center hole in table |
100 mm H6 |
| table load (max.150mm except table m.) |
6.000 kg |
| T-slot width |
22 mm |
| T-slot distance |
125 mm |
| Holding torque B-axis |
30.000 Nm |
| Positionability |
360.000 x 0,001° |

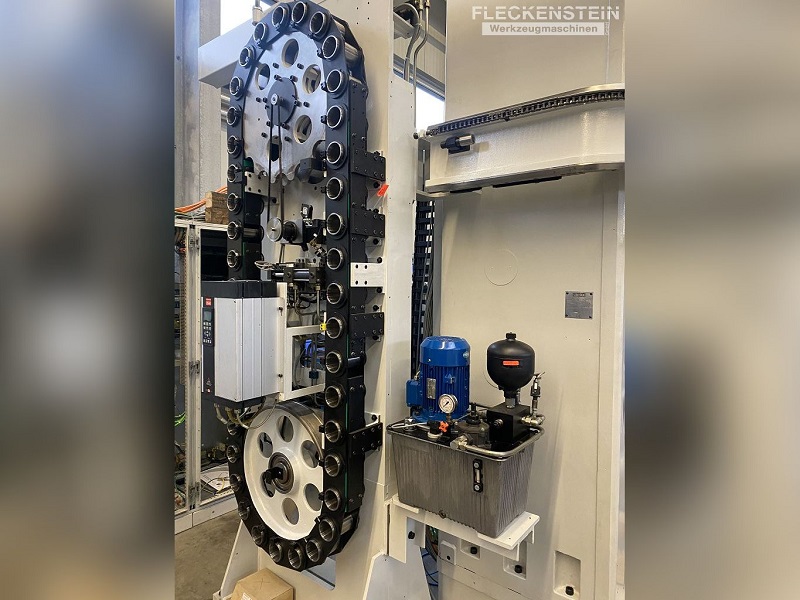

| Type |
chain magazine |
| Number of magazine spaces |
40 |
| max. Ø without free auxiliary places |
125 mm |
| max. Ø with free auxiliary places |
250 mm |
| max. tool length |
500 mm |
| max. tool weight |
30 kg |
| max. permissible weight of all tools |
800 kg |
Further detailed technical information please find in our data sheet.
