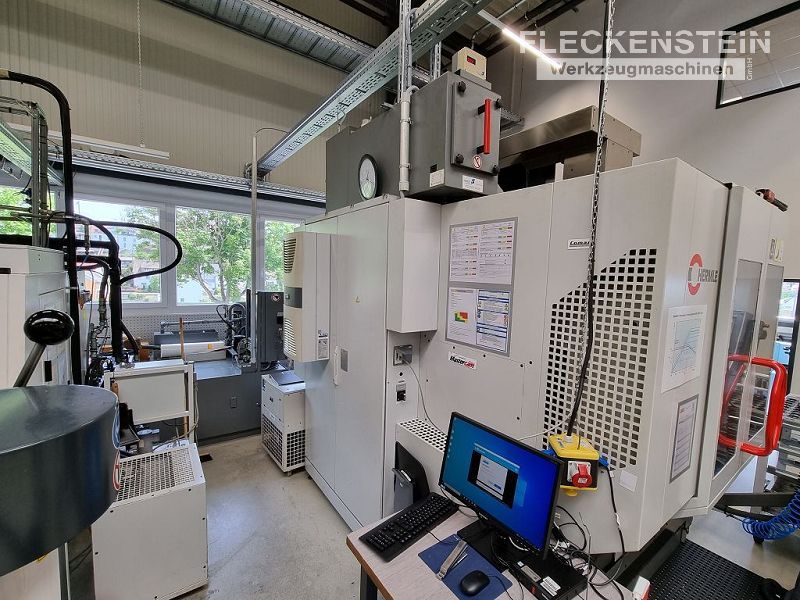

used CNC 5-axis Machining Centre HERMLE C40 U

manufacturer: HERMLE
type: C40 U
built: 2003

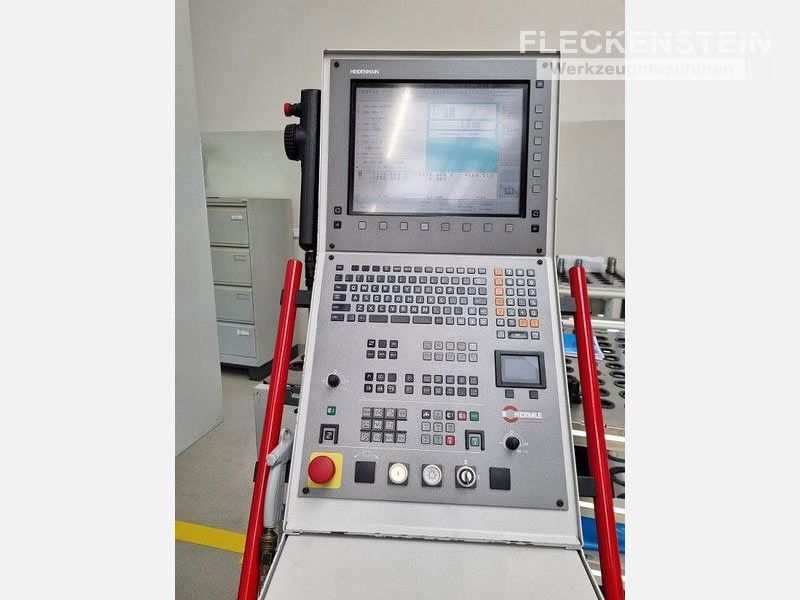

control: HEIDENHAIN iTNC 530

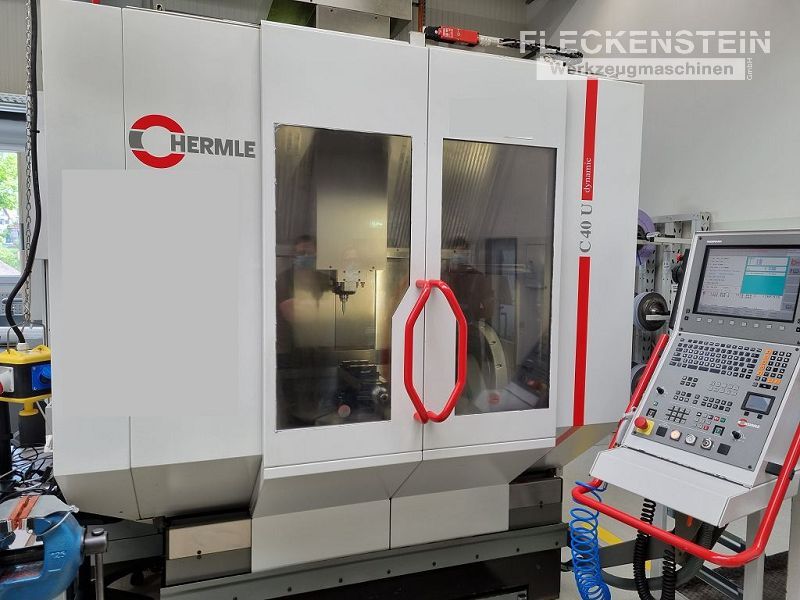

The C 40U dynamic 5-axis high-performance machining center from German manufacturer HERMLE is equipped with a HEIDENHAIN iTNC530 control. The machine has two axes in the workpiece and three axes in the tool. This enables dynamic positioning at a maximum of 60 m/min in rapid traverse and secure fixing of the workpiece in the desired machining position. With dimensions of X = 850 x Y = 700 x Z = 500, the C40 U has a very large working area in relation to its footprint. Tools are changed automatically via a tool magazine with 38 pockets, and the Ø 800mm NC swivel rotary table offers sufficient space even for medium-sized components. The main spindle with Capto C5 spindle mount turns up to 18,000 rpm and is connected to an internal coolant supply system with 40 bar high pressure. A Renishaw probe is included in the scope of delivery.

Sold EN

Technical Equipment/Features

X-axis (column transverse) 850 mm
Y-axis (upright longitudinal) 700 mm
Z-axis (vertical) 500 mm
Rotation range C-axis 360 Grad
Swivel range A-axis 135 (-110/+25) Grad

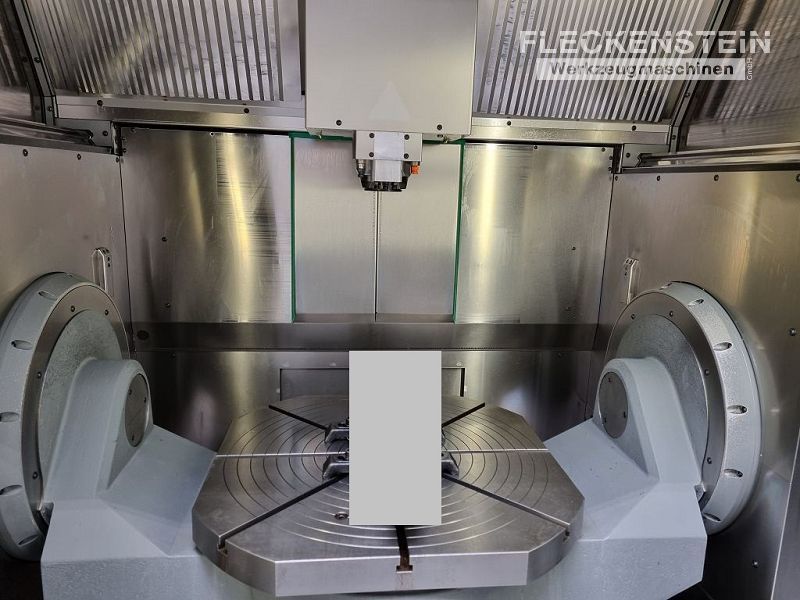

NC-swivel rotary table
Diameter Ø 800 mm
Max. Table load 1.400 kg
Circle of interference Ø 1.000 mm
Number of T-slots (star-shaped) 8 St 14 H7
table feed with motor cooling


Milling spindle
max. power (40 % ED) 23 kW
max. torque 79 Nm
Speed range 18.000 min-1
Tool holder Capto C5
Spindle diameter at the front bearing Ø 70 mm


Feed rate, Rapid traverse
Accerlation in X-Y-Z-axis 10 m/s2
Feed force in X-Y-Z-axis 8.500 N
Rapid traverse speed in X-Y-Z-axis 60.000 mm/min
Diameter and pitch of the feed spindles
X-axis 40/20 mm
Y-axis 50/40 mm
Z-axis 40/30 mm


Tool magazine, Tool changer
Number of tool places 38
Tool taper Capto C5
DIN/Form DIN 69063


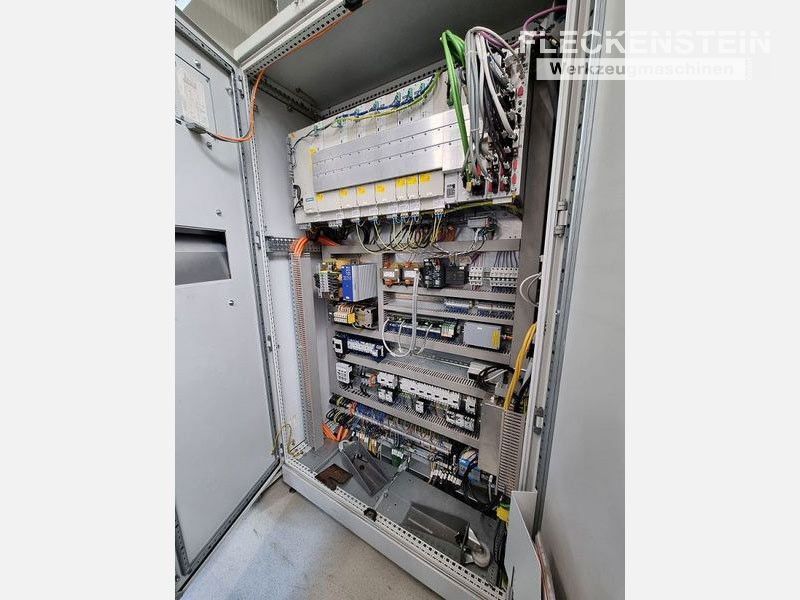

Connection data
Operation voltage 400 V~50Hz
Control voltage 24 V
Total rated current 63 A
Total connected load 43 KVA


Machine dimensions
Space requirement ca. 6,5 x 4,5 x 3,1 m
Machine weight ca. 10.000 kg
Total weight ca. 11.000 kg


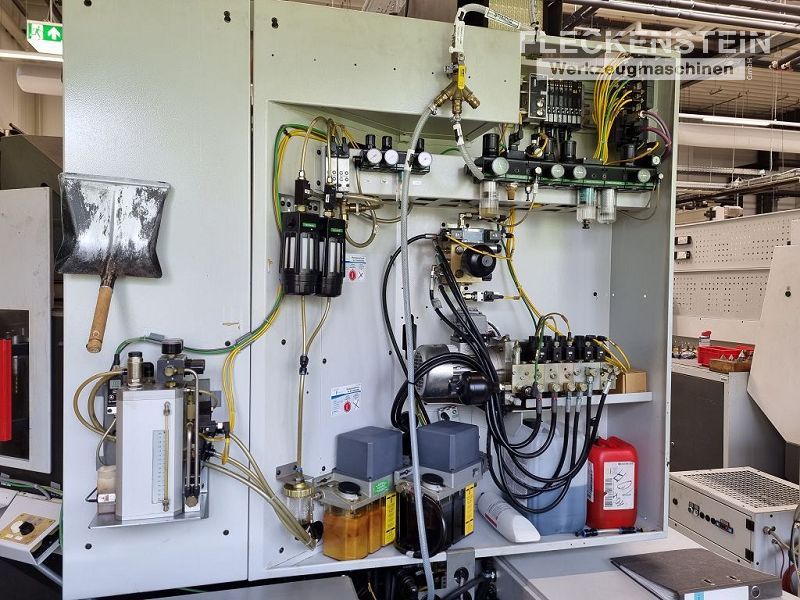

Equipment, accessories

• Former demonstration and training workshop machine, best condition
• Main spindle 18.000 1/min
• Control Heidenhain iTNC 530
• Linear axes dynamic version
• 38 tool places
• Internal coolant supply 40 bar
• Strainer basket filter for IKZ system
• Inner and outer MQL
• Scraper belt conveyor
• Chip flushing pistol
• Blow off device
• Sealing air for scales
• Electronic handwheel
• Electrical heat conpensation
• Oil mist extraction unit
• Aggregate for spindle cooling
• Coolant system with tank capacity 1.000 l and high pressure pump 40bar for internal coolant supply
• Workpiece touch probe system with Renishaw probe, Capto C5 holder
• chip catcher
• manuel cabin door
• manuel cabin roof
• Rotoclear incl. laminated glass
• Various toolholders Capto C5
• Machine ON: 12.200 h, spindle ON:1.300 h
