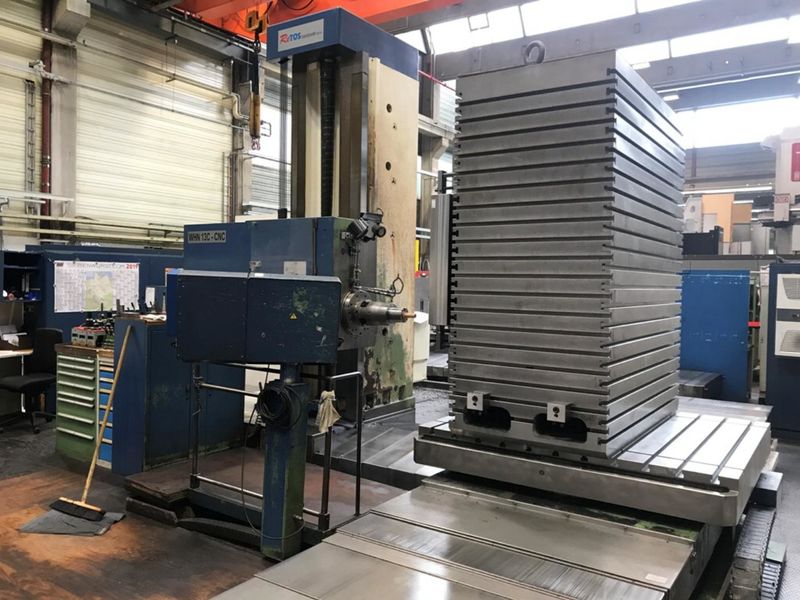

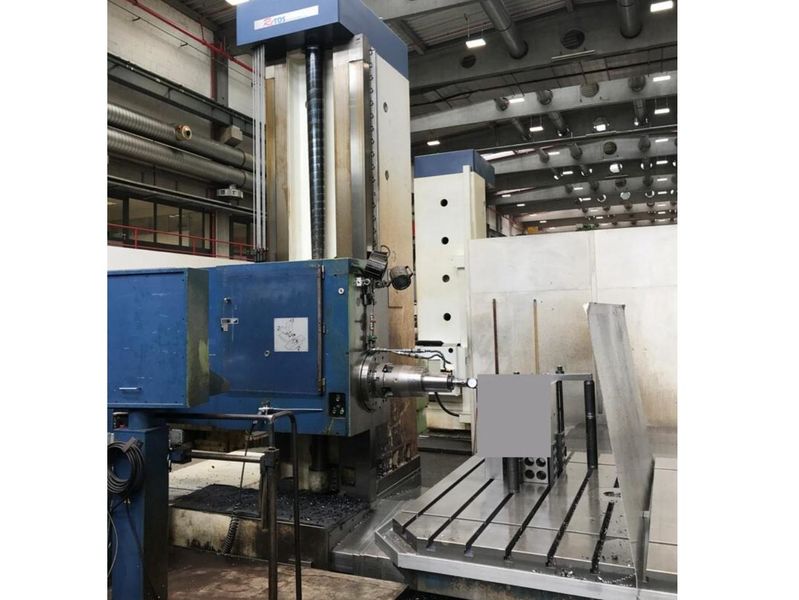

used 5-axis horizontal Table Type Borer TOS WHN 13.8
| manufacturer: |
TOS VARNSDORF/ReTOS |
| type: |
WHN 13.8 CNC |
| built: |
2000 |
| control: |
SINUMERIK 840 D |
Technichal Equipment / Features
| The horizontal boring and milling machine TOS WHN 13.8 CNC with Siemens SINUMERIK 840D control has five fully controlled CNC axes (X, Y, Z, W and B). The machine column can be moved with a travel Z = 1,250mm. The working table with a clamping surface of 1,800 x 1,800 mm has a full B axis and can take a load of 12,000 kg. The main spindle has a drive power of 37 kW and a maximum speed of 2,500 rpm. The design of all basic components of the machine in grey cast iron and the generous flat guides in all linear axes make the WHN 13.8 CNC a universal machine tool for precise milling, coordinate drilling, boring and threading of box, plate and shape-complicated cast iron, cast steel and steel workpieces up to 12,000 kg in weight. |
| X-axis (lateral movement table) |
3.500 mm |
| Y-axis (vertical movement spindle unit) |
2.000 mm |
| Z-axis (longitudinal movement column) |
1.250 mm |
| W-axis (movement quill) |
800 mm |
| B-axis (rotary movement table) |
360° |
| Spindel: |
|
| spindle diameter |
130 mm |
| spindle cone |
SK 50 |
| spindle power |
37 kW |
| spindle speed |
10-2.500 min-1 |
| Pull stud |
DIN 69871/A |
| rotary table: |
|
| max. workpiece weight |
12.000 kg |
| clamping size |
1.800 x 1.800 mm |
| no. of T-slots |
11 |
| feed range X-, Y-, Z- axis |
4-3.000 mm/min |
| feed range W-axis |
4-3.000 mm/min |
| rapid feed X-axis |
10.000 mm/min |
| rapid feed Y, Z, W-axis |
10.000 mm/min |
| Total weight |
44.000 kg |
| Length x Width x Height |
7.826 x 7.120 x 4500 mm |
| Total connected load |
82 kVA |
- Documentation in german language
- Spindle cooling unit
- coolant tank with cooling through outer coolant nozzles
(inner cooling via cooling adapter possible)
- electronic handwheel
