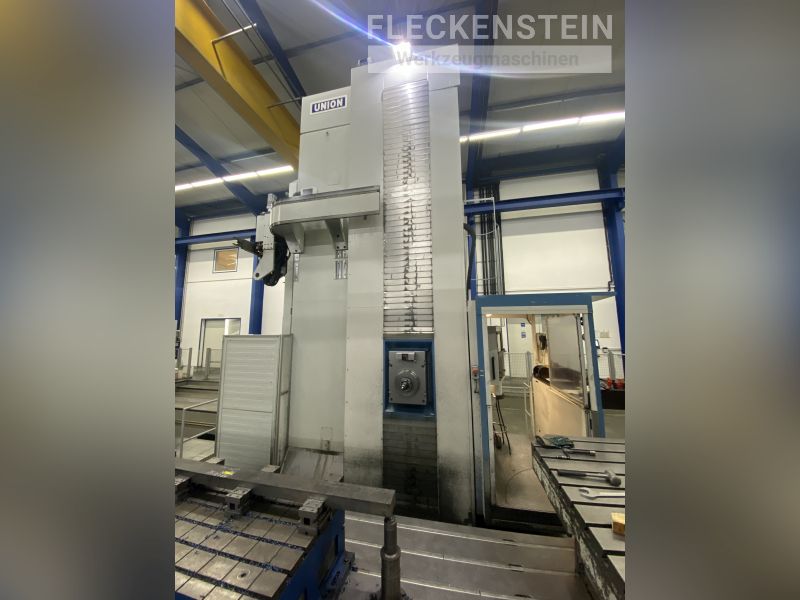

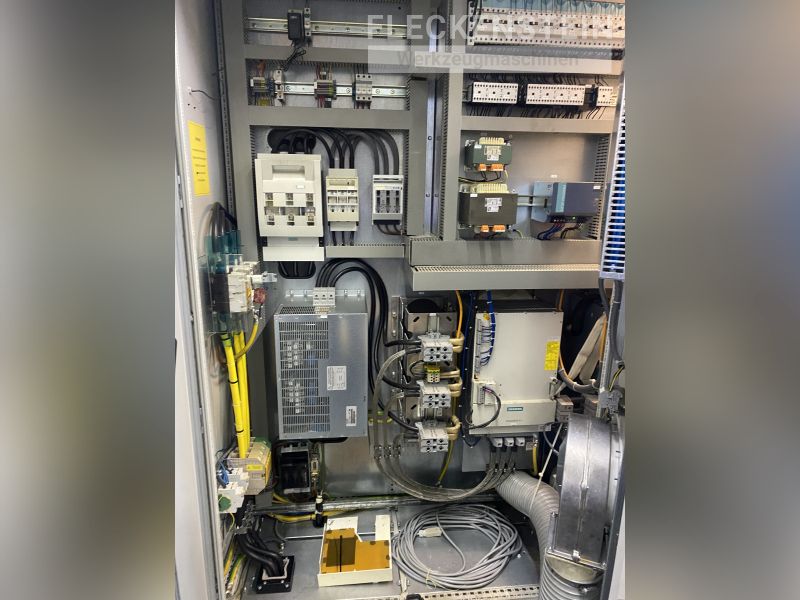

Hydrostatic Boring Mill UNION PCR 150
Video about the machine
Details
Make: | UNION |
Type: | PCR150 |
Build: | 2010 |

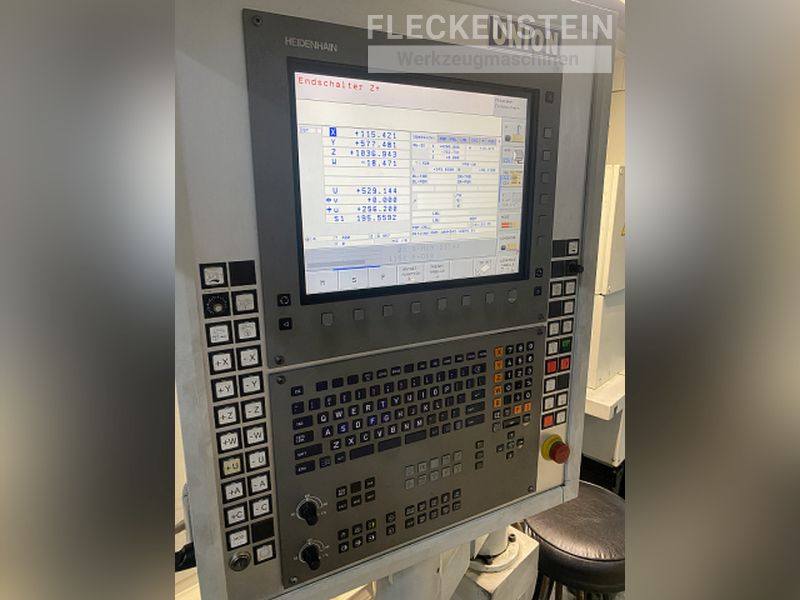

Control: | HEIDENHAIN iTNC 530 |
Pickup-Station for interchangeable heads | 4-fold |
Continous Fork Milling | KFU NC4/90 |

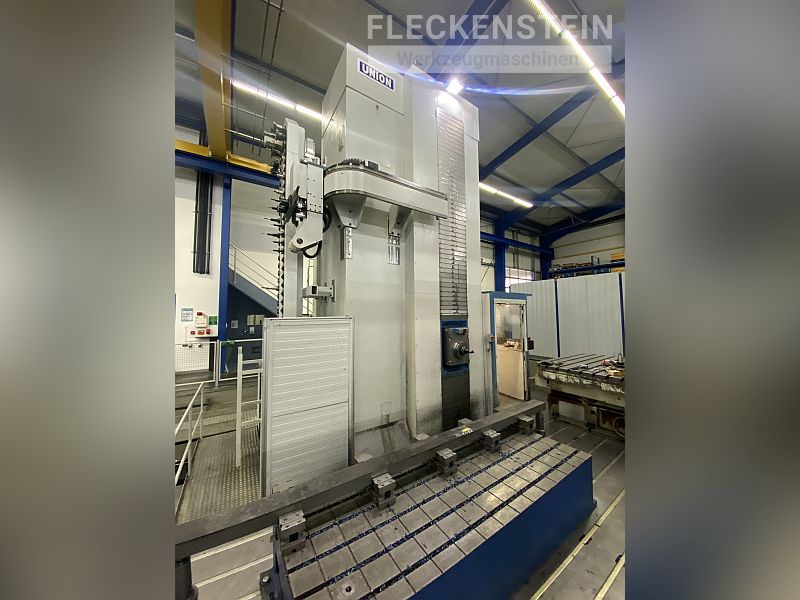

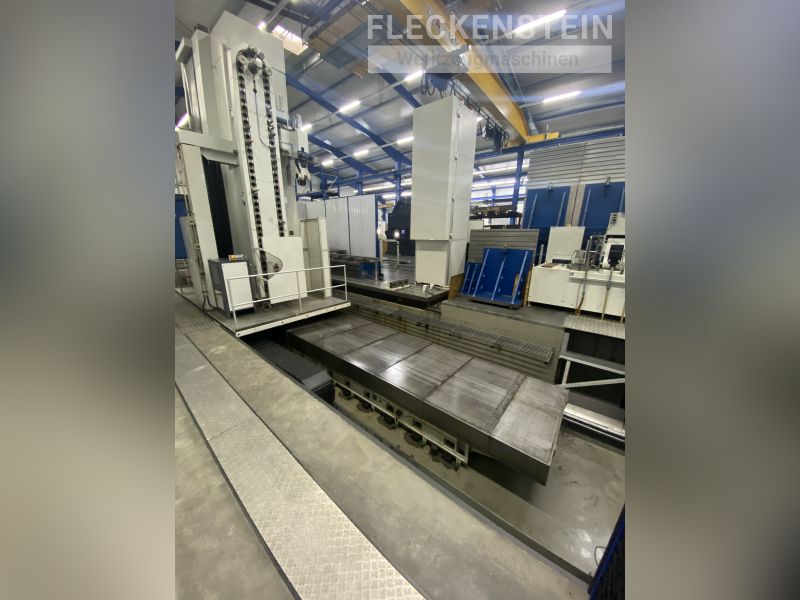

Floor plate | 10.000 x 3.000 mm |

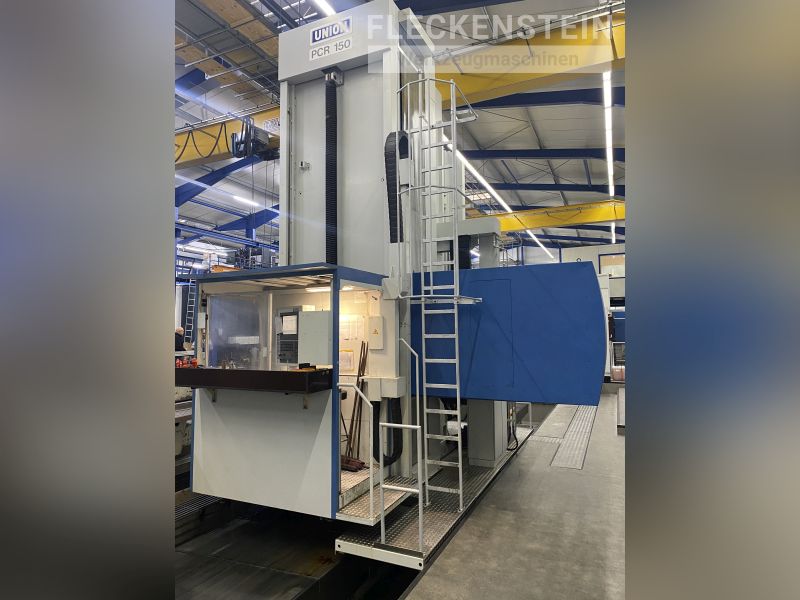

Operator platform | automatically movable |

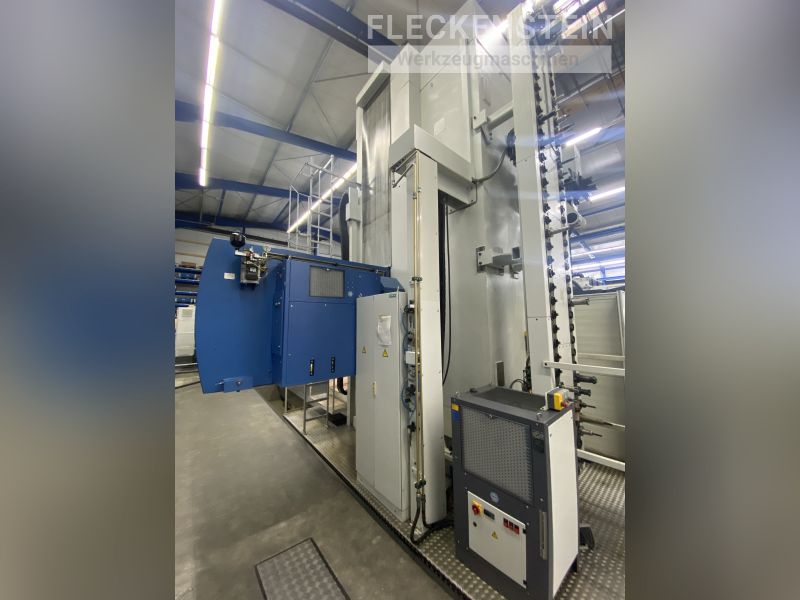

Coolant and filtration unit | Yes |
Chip conveyor | 2 pcs. |
Optional features available upon request. | |
Travels | |
X-Axis | 10.000 mm |
Y-Axis | 4.000 mm |
Z-Axis | 1.500 mm |
W-Axis | 700 mm |
Feeds | |
Max. feed X-, Y-, Z- and W-Axis | 0 - 6.000 mm/min |
Max. feed force | 25.000 N | up to Y = 3.000 mm |
Rapid traverse in X / Y / Z | 15.000mm/min |
Spindle unit | |
Quill diameter | Ø 150 mm |
Cross section RAM | 450 x 550 mm |
Main drive | with gearbox |
No. of gear steps | 2 |
Gear step 1 | 5 - 676 rpm |
Gear step 2 | 677 - 3.000 rpm |
Max. power S1 / S6, 100%/ 60% ED | 37 / 46 kW |
Max. torque S1 / S6 | 1.683 /2.094 Nm |
Tool paper | SK50 ISO 7388/1 Form AD |
Tool clamping force | 25 kN |

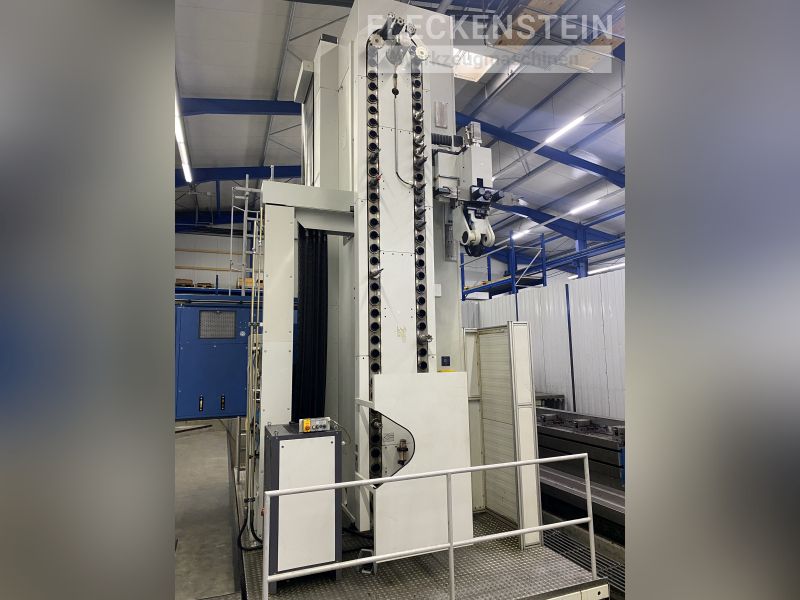

Automatic toolchanger | |
Type | chain magazine mounted at column |
No of pockets | 80 pcs. |
Max. tool diameter | Ø 125 / 250 mm | secondary occupied / free |
Max. tool length | 500 mm |
Max. single tool weight | 30 kg |
Max. total weight of tools in magazine | 1,120 kg |
Tool taper | SK50 |
