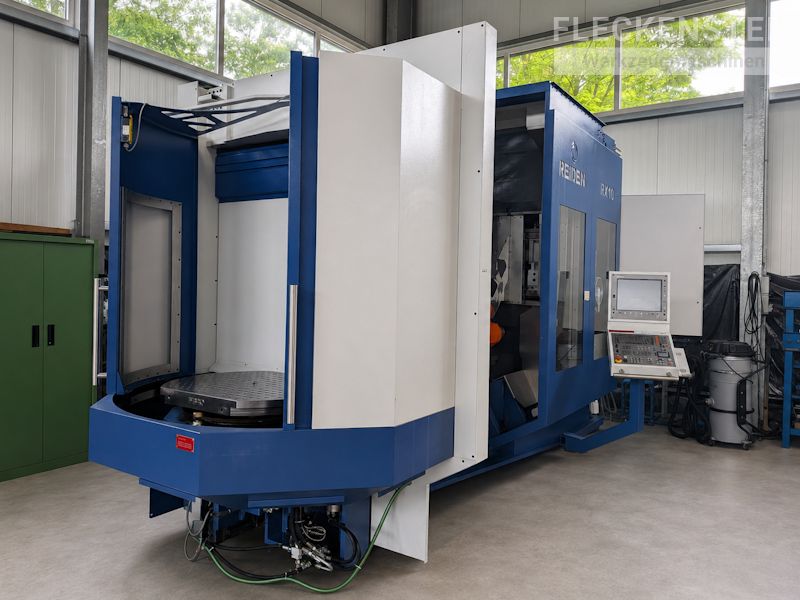

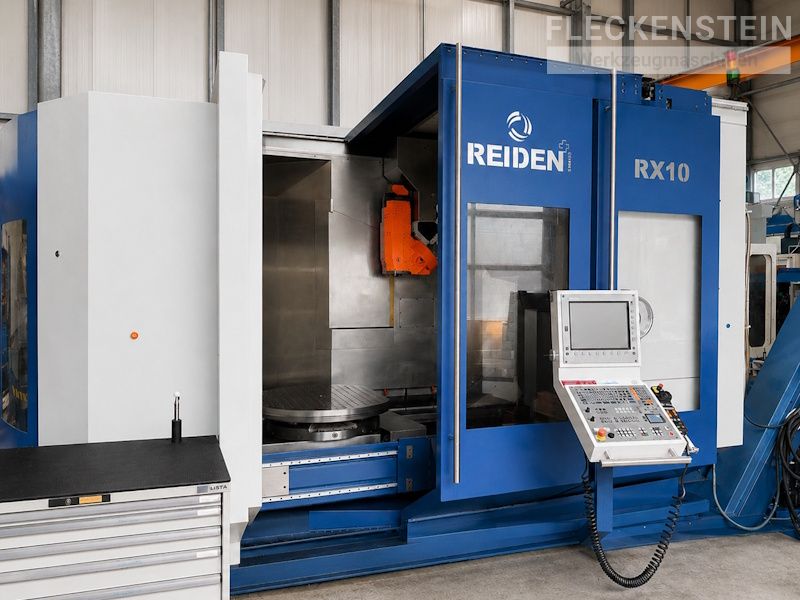

CNC-Universal 5-Axis-Machining Center
REIDEN RX10 PCS
Video about the machine
Details
| Make: | REIDEN |
| Type: | RX10 PCS |
| Built: | 2011 |

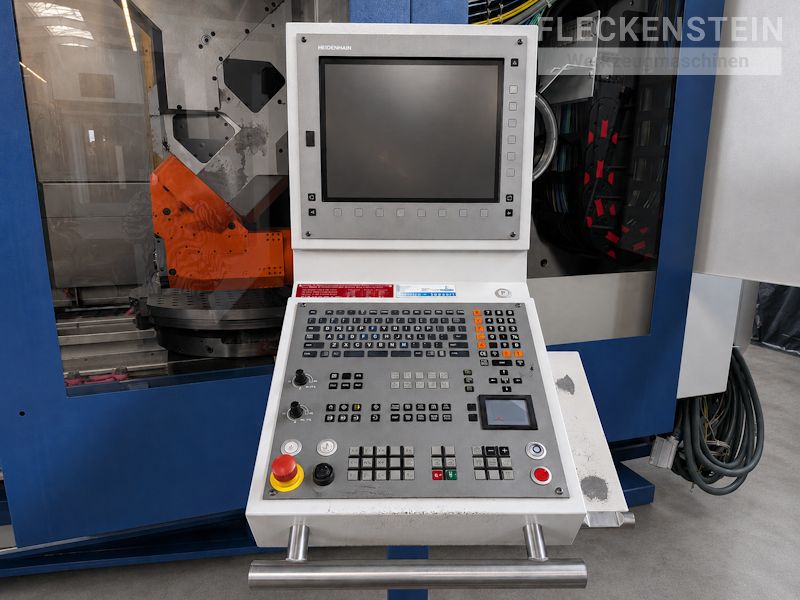

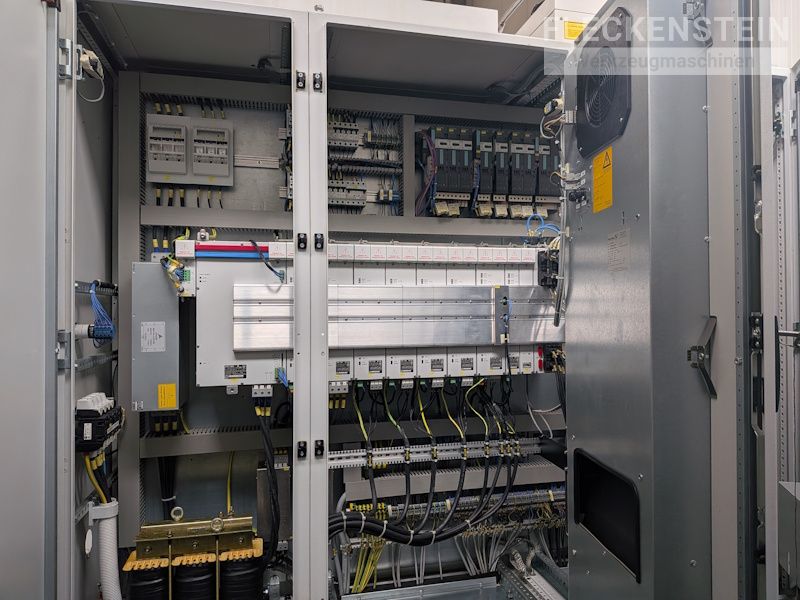

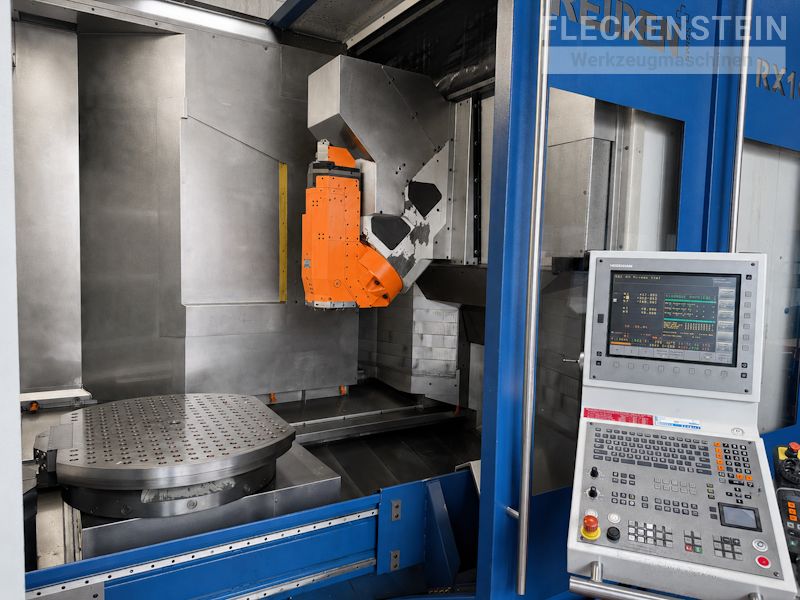

| Control: | HEIDENHAIN iTNC 530 HSCI |
Description
REIDEN RX10 PCS – CNC 5-Axis Machining Center with Pallet Changer
The REIDEN RX10 PCS is a high-precision CNC 5-axis machining center built in Switzerland for demanding machining applications. Ideal for toolmaking, mold manufacturing, and small-batch production, the machine features a HEIDENHAIN iTNC530 HSCI control, generous travels of 1,000 x 1,100 x 810 mm, and an automatic pallet changing system for maximum productivity.
Its innovative DDT double drive spindle technology combines high-speed machining up to 16,000 rpm with powerful high-torque cutting performance. The large tool magazine with 273 tool positions ensures efficient and automated manufacturing processes.

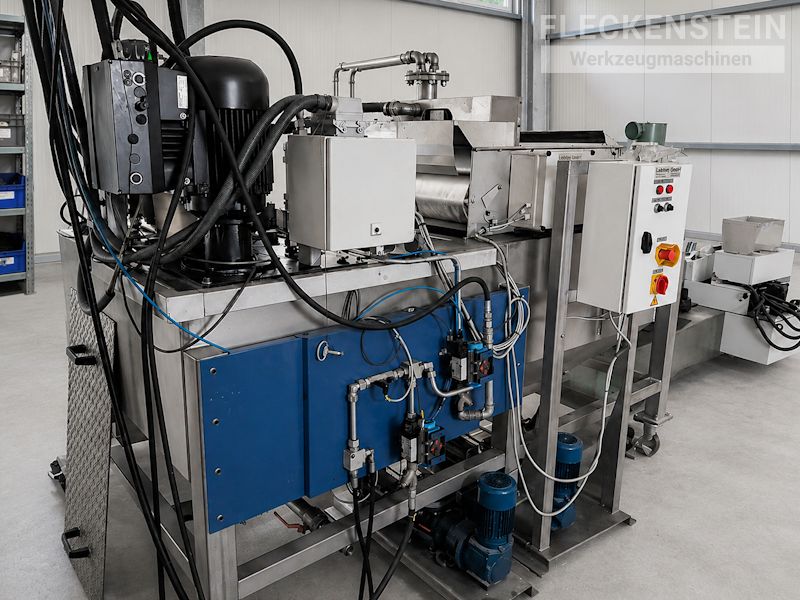

Additional features include a hydraulically clamped NC swiveling milling head, 40 bar through-spindle coolant, BLUM 3D touch probe, and a highly rigid machine construction.

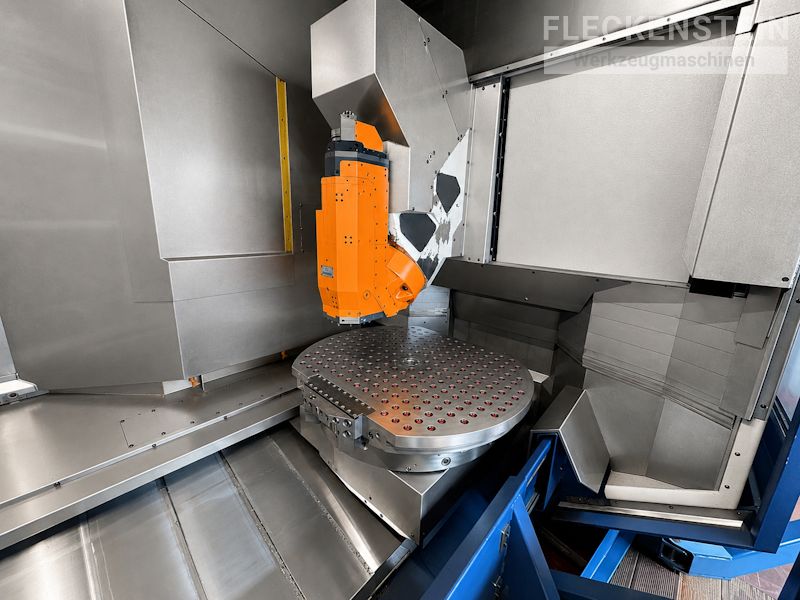

| Travels | |
| Longitudinal movement of the milling head (X-axis) | 1,000 mm |
| Transverse movement of the table (Y-axis) | 1,100 mm |
| Vertical movement (Z-axis) | 810 mm |
| Swivel axis of the milling head (A-axis)) | 0 - 180 ° |
| Rotational movement of the table (C-axis) | 360 ° |
| Working Area | |
| Clamping surface | Ø1,000 x 800 mm |
| Max. workpiece height with fixtures | 1,480 mm |
| Max. swing diameter | Ø1,000 mm |
| Max. workpiece weight | 800 kg |
| Feeds and Rapid traverse | |
| X, Y, and Z axes, stepless | 0 - 60,000 mm/min. |
| Rapid traverse in X / Y / Z axes | 60,000 mm/min |
| High Speed-Spindle | |
| Max. Power High Speed Motor | 28 kW |
| Max. Torque High Speed Motor | 63/83 Nm |
| Max. Speed High Speed Motor | 16,000 min-1 |
| High Torque Spindle | |
| Max. Power High Speed Motor | 21/27 kW |
| Max. Torque High Speed Motor | 226/290 Nm |
| Max. Speed High Speed Motor | 3,000 min-1 |

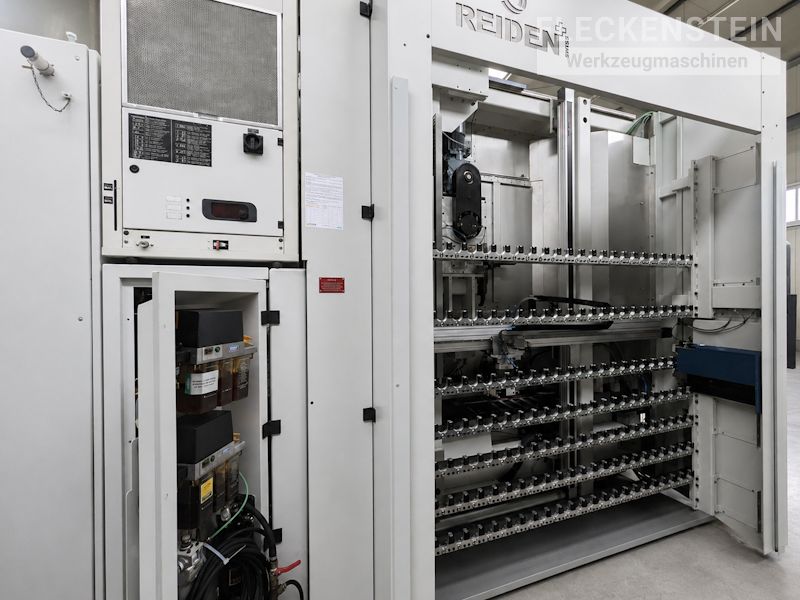

| Shelf magazine with automatic toolchanger | |
| Tool stations | 273 Places |
