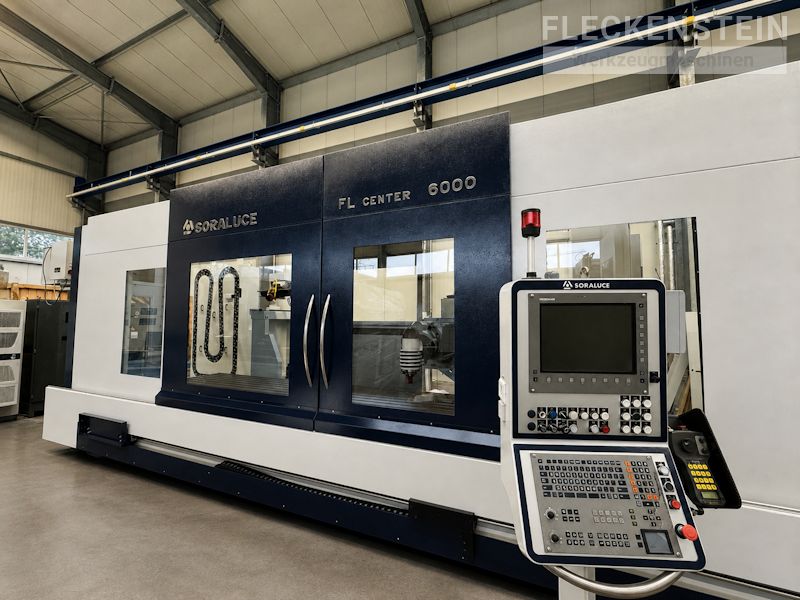

CNC-Travelling Column Machining Center
SORALUCE FL-Center 6000
Details
| Make: | SORALUCE |
| Type: | FL-Center 6000 |
| Built: | 2006 |

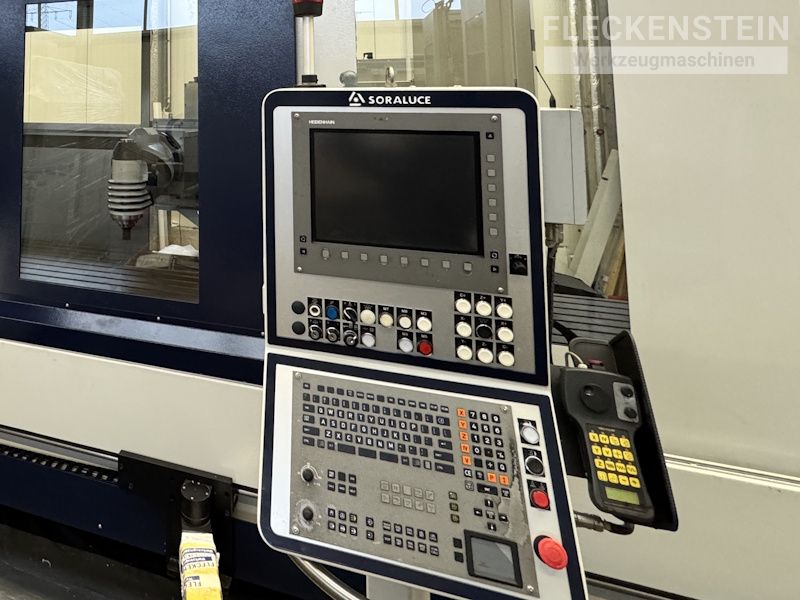

| Control: | HEIDENHAIN i TNC 530 |
Description

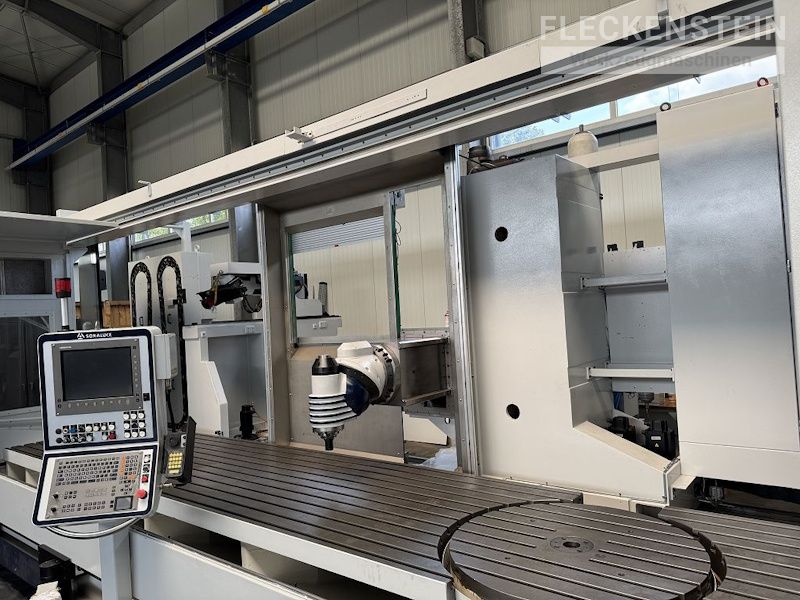

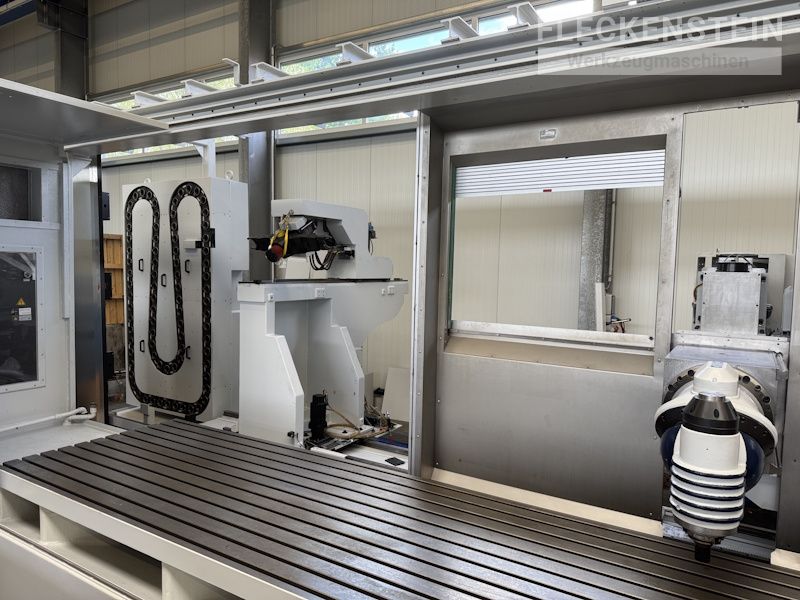

The SORALUCE FL-Center 6000 is a high-performance, reconditioned CNC travelling column machining center designed for precision machining of large workpieces. Featuring 5,500 mm X-axis travel, 1,400 mm Y-axis travel, an integrated Ø 1,000 mm NC rotary table, a 28 kW universal milling head, and the reliable HEIDENHAIN iTNC 530 control, this machine is ideal for toolmaking, mechanical engineering, and heavy-duty manufacturing. Its 5-sided machining capability, 80-position automatic tool changer, and 70-bar through-spindle coolant system ensure maximum productivity, flexibility, and machining accuracy.
| Travels | |
| Longitudinal movement (X-axis) | 5.500 mm |
| Vertical movement (Y-axis) | 1.400 mm |
| Cross movement (Z-axis) | 1.000 mm |

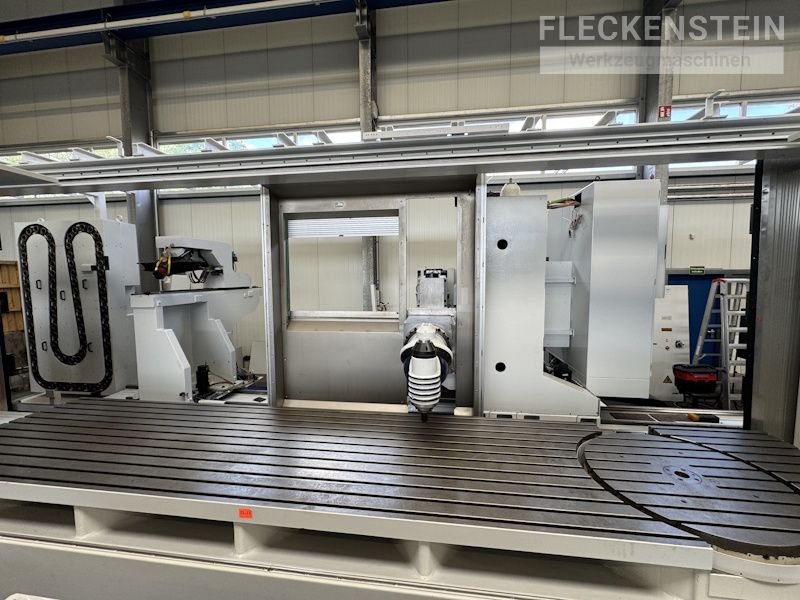

| Clamping table | |
| Clamping surface | 6.000 x 1.200 mm |
| Max. work piece weight | 13.500 kg |
| Number of T-slots | 12 pcs. |
| Size of T-slots | 22 mm |
| Spacing of the T-slots | 100 mm |
| NC-rotary table | |
| Position | Right. flush integrated in table surface |
| Clamping surface | Ø 1.000 mm |
| Positioning accuracy | 360 x 0,001 ° |
| Max. work piece weight | 3.500 kg |
| Number of T-slots | 9 pcs. |
| Size of the T-slots | 22 mm |
| Distance between the T-slots | 100 mm |
| Distance between the T-slots | 100 mm |
| Universal-NC-Milling head | |
| Swiveling front/rear plane | automatic |
| Indexing | 2,5 x 2,5 ° hirth coupling |
| Constant Power at 100 % ED | 28 kW |
| Speed range, infinitely variable | 15 - 5.000 min-1 |
| Max. torque | 815 Nm |
| Tool holder | SK50 DIN 69871 AD |
| Internal coolant supply | Through the spindle centre |
