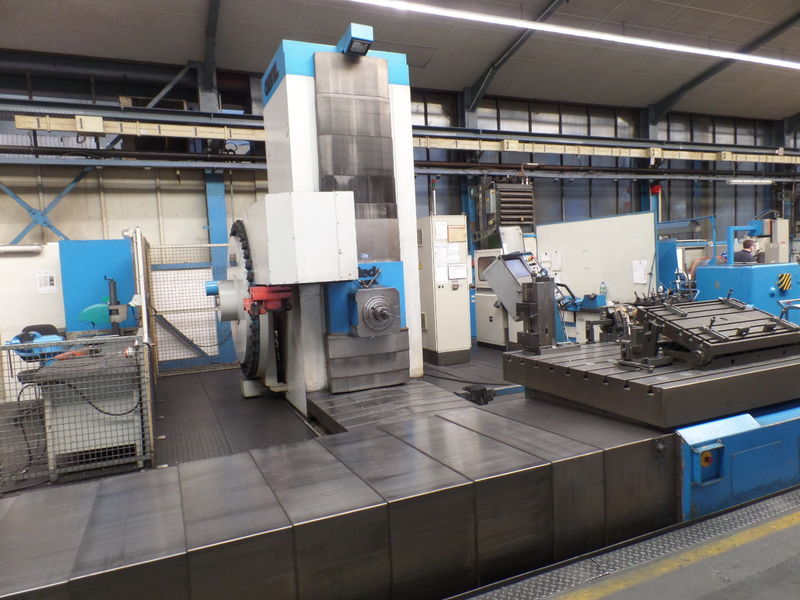

CNC-Boring- and Milling Machine CASTEL RED 1T10 A 40

Video about the machine

Details

Make:	CASTEL
Type:	RED 1T10 A 40
Built:	1992
Control:	HEIDENHAIN iTNC 530

Request a quote

Download data sheet

Do you have any questions?

+49 6096 97060

fleckenstein@fleckenstein-machine.com


Travels
X-axis, lateral movement table	3.100 mm
Y-axis, vertical movement spindle unit	1.800 mm
Z-axis, longitudinal movemet column	2.000 mm
W-axis, movement quill	800 mm

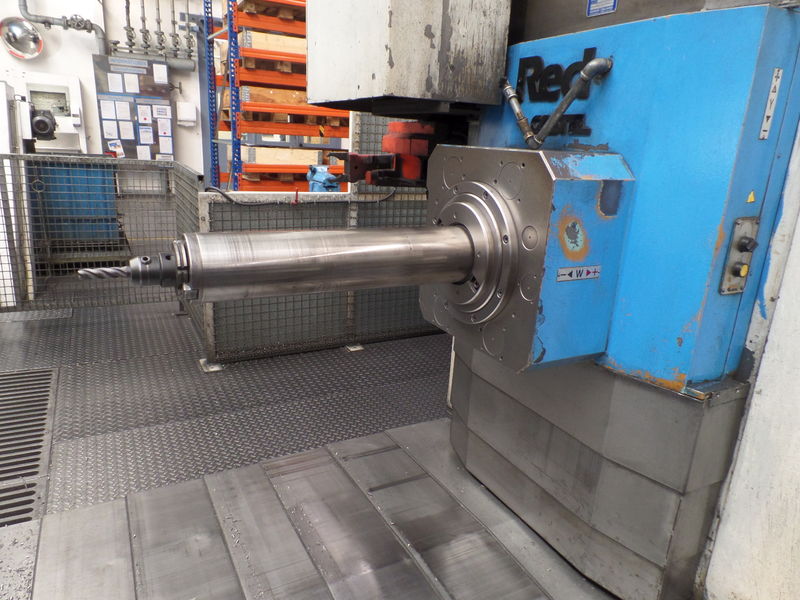

Working spindle
Quill diameter	130 mm
Spindle taper DIN 6987140	ISO 50
Spindle power	37 kW
Gear steps	2
Torque gear step 1/2	2360/590 Nm
Spindle speed	4-2.500 min-1

Clamping table
Max. workpiece weigth	10.000 kg
Clamping size	1.600 x 2.000 mm
No. of T-slots	9 28H8
Measuring system resolution	0,001 Grad

Tool changer

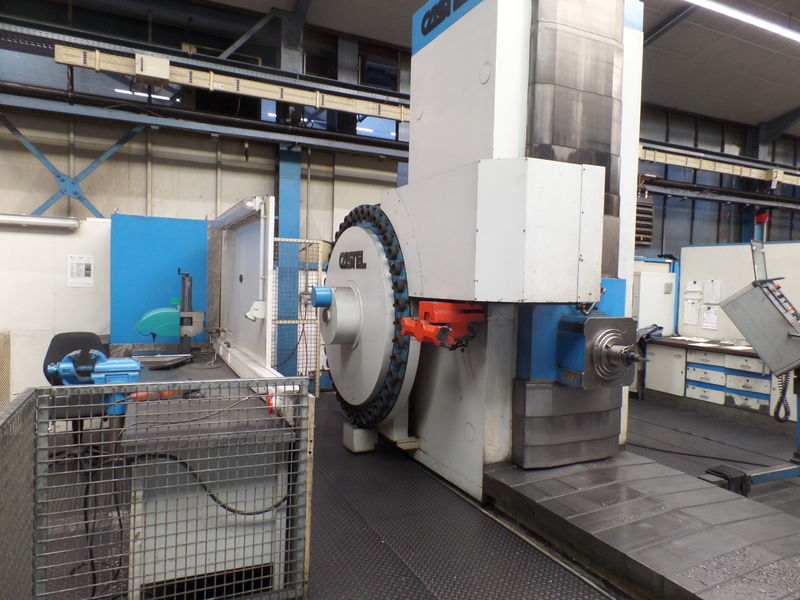

Drum magazine	40-fold

Feed
Feed range X-Y-Z axis	0-10.000 mm/min
Feed range W-axis	0-8.000 mm/min
Rapid feed X-axis	10.000 mm/min
Rapid feed Y, Z, W-axis	8.000 mm/min

Dimensions
Total weight	38.500 kg
Length x Width x Height	7,7 x 7,0 x 4,3 m
Total connected load	50 kVA

Euqipment

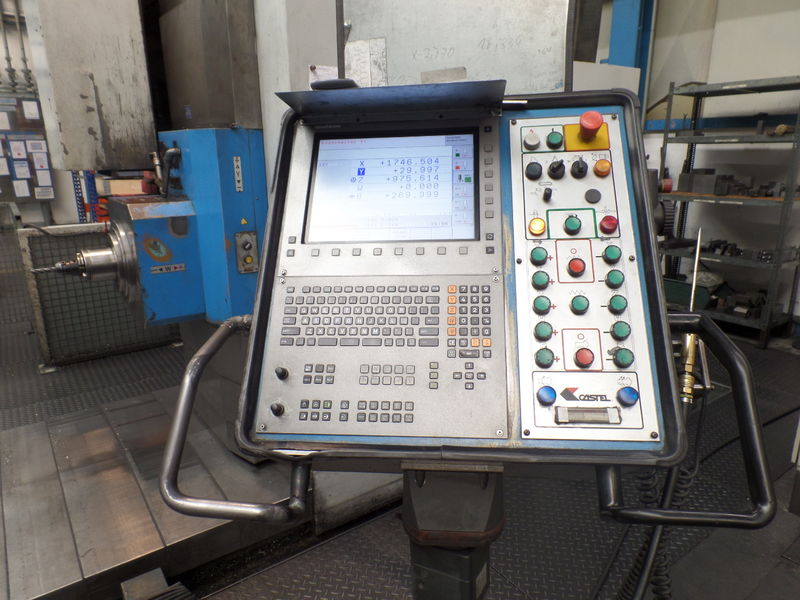

CNC-control HEIDENHAIN iTNC 530	[nbsp]
Tool changer 40-fold	[nbsp]
Coolant tank with pump	[nbsp]
Chip conveyor	[nbsp]
Basic equipment tool holder	[nbsp]
