| manufacturer: | BOEHRINGER |
| type: | DUS 630 ti-3000 |
| built: | 2005 |
| control: | HEIDENHAIN MANUAL PLUS |
Offer Data
Cycle Lathe
working area
| swing diameter over bed: | 640 mm |
| swing diamter over saddle: | 435 mm |
| turning length: | 3.000 mm |
| adjustment face plate: | 345 mm |
| bed width | 360 mm |
| turning tool cross h x w | 32 x 25 mm |
main spindle
| main spindle: | size 11, DIN 55027 |
| spindle head diam. in front bearing: | 170 mm |
| spindle bore: | 128 mm |
| speed total: | 6-1.800 min-1 |
| power 100/60 % ED: | 19/23 kW |
| speed range gear step 1: | 6-367 min-1 |
| speed range gear step 2: | 15-1.800 min-1 |
| max. torque at main spindle: | 1.864 Nm |
feed drive
| feed force longitudinal/cross: | 12,5 / 7,1 kN |
| feed rate longitudinal/cross: | 0,01 - 50 mm/U |
| rapid traverse longitudinal/cross max: | 10/4 m/min |
tailstock
| quill diameter: | 100 mm |
| quill stroke: | 190 mm |
| quill taper: | MK 5 |
tool holder
| tool holder: | PARAT size 3 |
tool turret

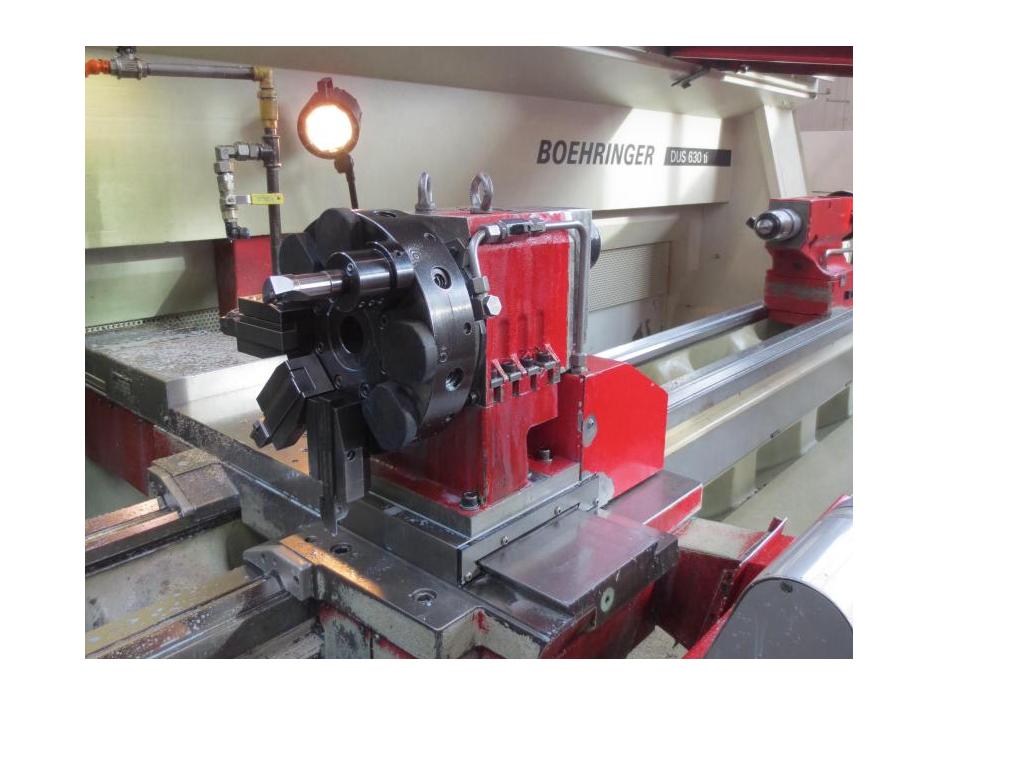

| 8-fold tool turret SAUTER, mounted in front of center, automatically swiveling with internal coolant supply, tool taper DIN 69880 30 x 55. Alternating with PARAT-holder modules. |
dimensions, weight
| length x width x height: | 5,8 x 2,2 x 2,2 m |
| weight: | ca. 6.500 kgs |
processing cycle
|
turning cycle, recessing cycle, thread cycle, bore-/tapping cycle, grinding undercut cycle, thread undercut cycle, DIN-programming cycle. |
Accessories
|
3-jaw chuck SCHUNK ROTA S 315 + ROTA S 500 , rear chuck BISON 400,
|
