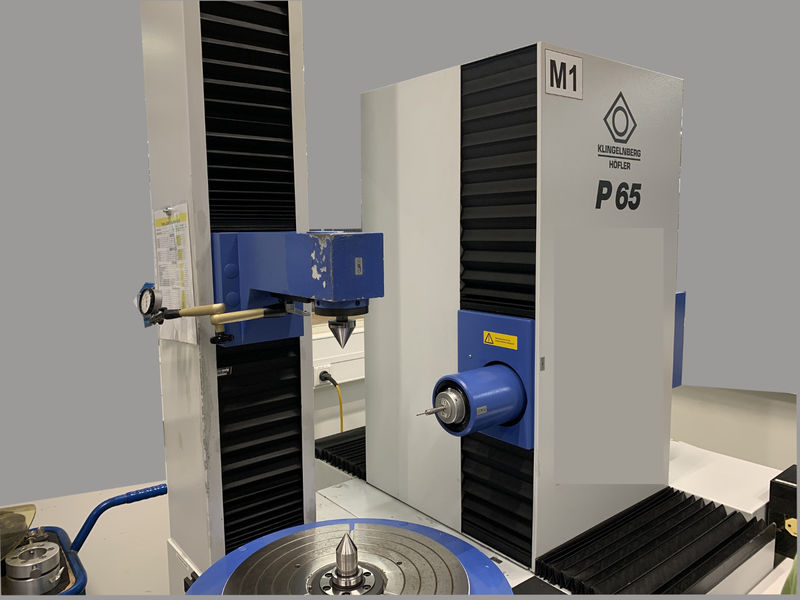

used CNC Precision Measuring Center KLINGELNBERG P 65

manufacturer: KLINGELNBERG
type: P 65
built: 1999
EXW Kleinostheim

Technical Equipment/Features

main data:
measurable tooth size (module) 0,5-15 mm
vertical measuring range (Z-axis) max. 550 mm
hoizontal measuring range  (X-axis) +/- 200 mm
helix angle depending on the software equipped 0-90°
clampable workpiece diameter between centres 650 mm
max. workpiece weight incl. clamping devices 500 kg
center distance 1.000 mm
tip diameter at the supports 40 mm
permissible moment of inertia 30 kgm2
base diameter on the machine table 104-460 mm
dimension, weight:
dimension approx. 2,5 x 1,5 x 2,4 m
machine weight approx 3.000 kg
supply connections:
supply voltage 400 V
frequency 50 Hz
power input 3 kVA
cross section of supply line 2,5 mm2
fuse 3 x 20 A
Equipment, Accessories
  • Counterholder with tailstock
  • Workshop PC HP EliteDesk and intel CORE i5 vPro Processor new in 2015 equipped with Windows 7 operating system
  • 19‘‘ Screen, keyboard and mouse
  • Operating terminal with joystick
  • Continuous measuring equipment monitoring by Klingelnberg, last calibration 2019

KLINGELNBERG Software for measuring:
- Straight toothed spur gears
- helical gears
- Internal gears
- Straight bevel gears
- Helical bevel gears
- Curved bevel gears
- Hobs
- Cutting wheels for slotting machines
- geometric tolerances

The software was converted to WINDOWS 7 in 2015.
