| manufacturer: | GILDEMEISTER |
| type: | CTX 600 |
| built: | 1994 |

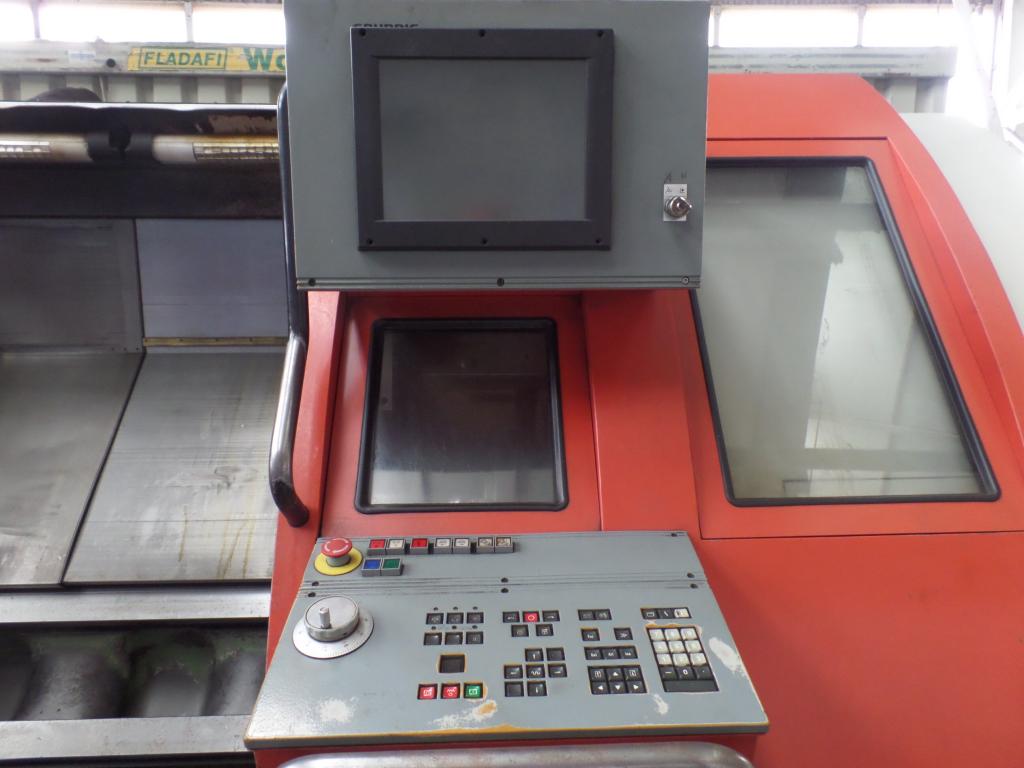

| control: | ELTRO PILOT TURN PLUS |
Offer Data

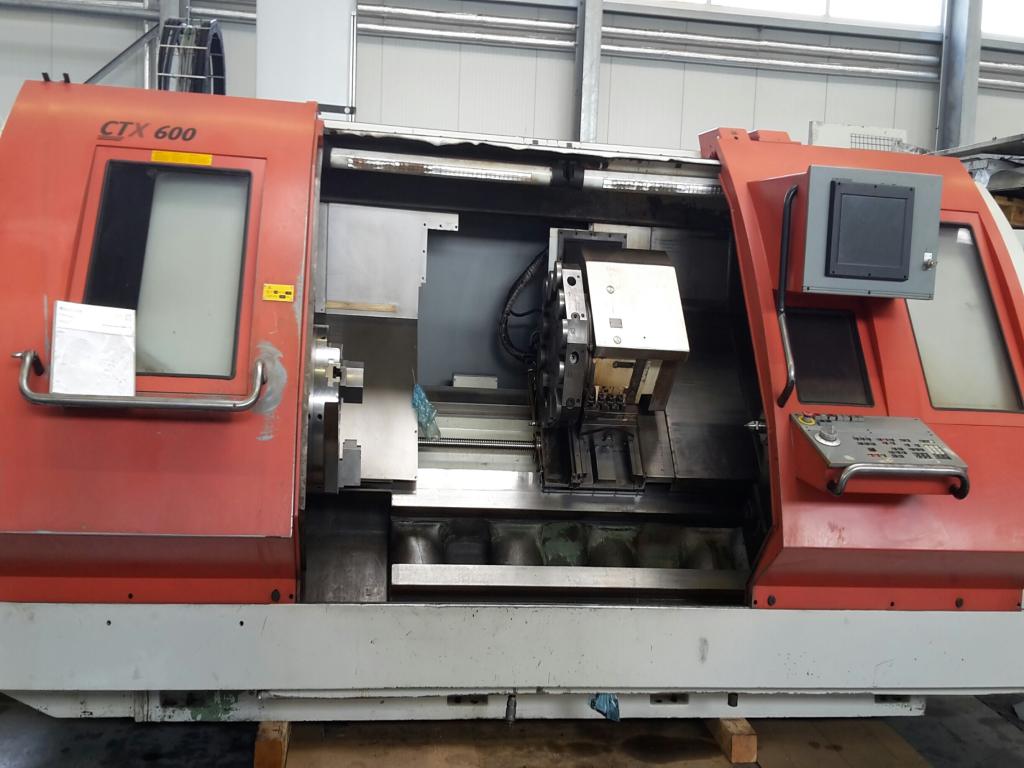

CNC-Lathe

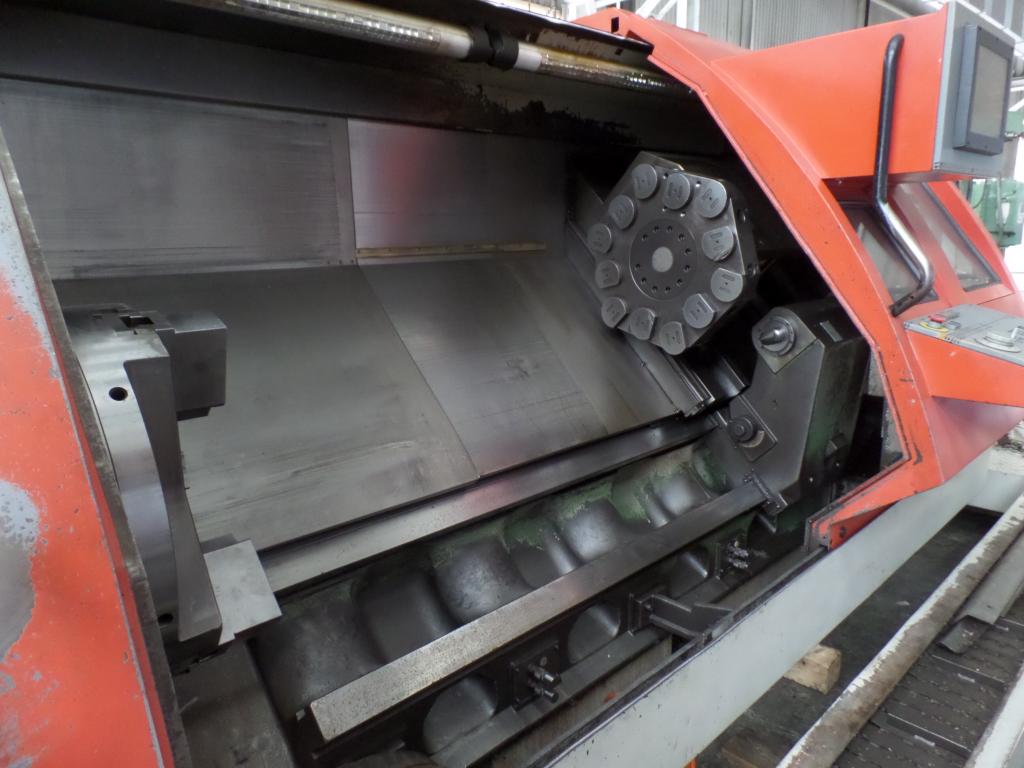

working area
| turning diameter over bed: | 660 mm |
| turning diameter over saddle: | 480 mm |
| turning length: | 2.000 mm |
feed drives
| feed rate: | 0,5 - 5.000 mm/min |
| rapid longitudinal/lateral: | 15/10 m/min |
| feed force during boring: | 15 kN |
main spindle
| spindle head: | flat flange 220 h5 |
| spindle boring: | 107 mm |
| spindle diameter in front bearing: | 140 mm |
| max. speed: | 3.000 min-1 |
| power: | 30 kW |

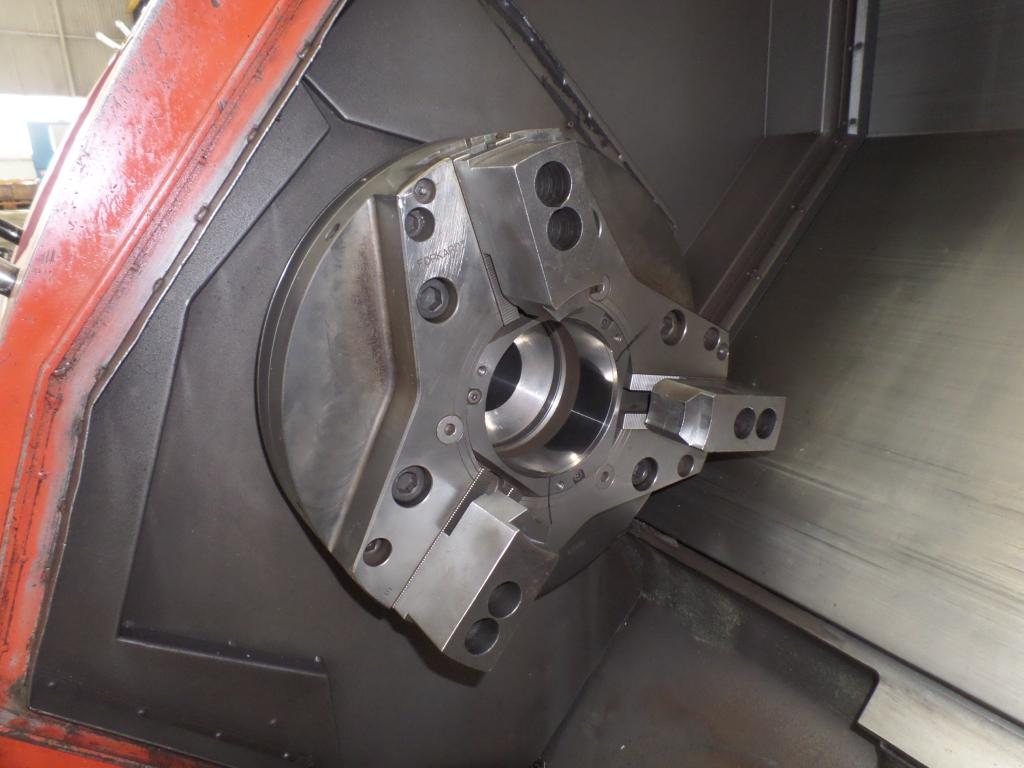

| power chuck: | FORKARDT diameter 500 mm |

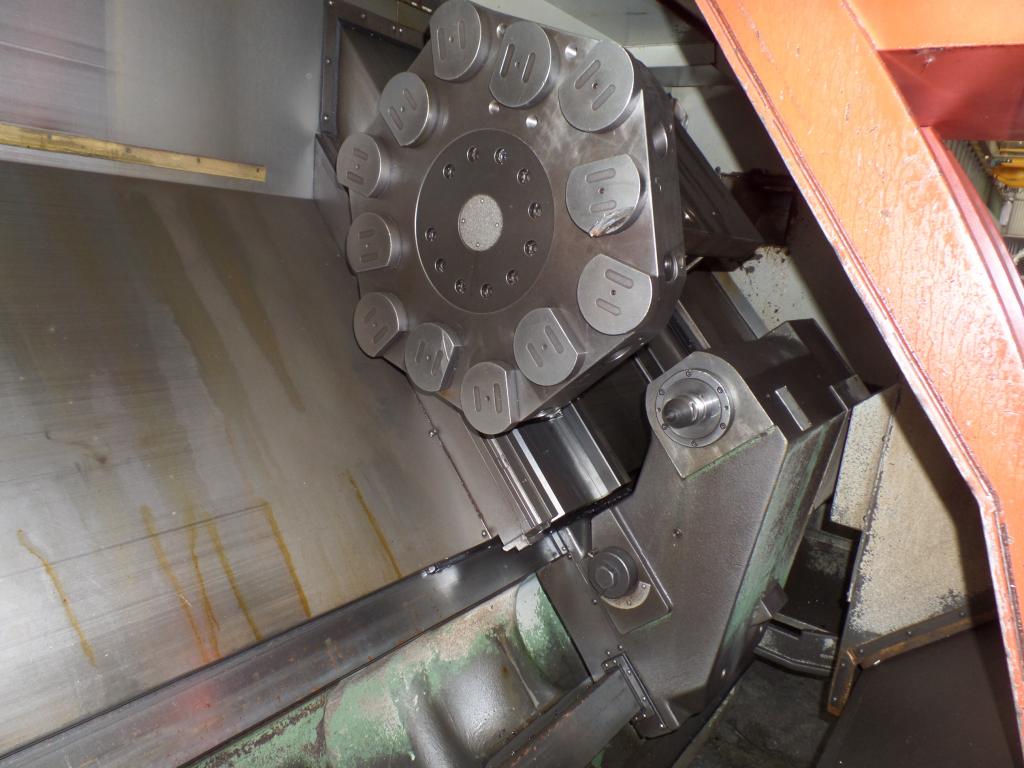

tool turret
| tool taper: | 12 x VDI 50, DIN 69880 |
tailstock
| quill diam.: | 120 mm |
| quill stroke: | 120 mm |
| taper: | MK 5 |
measuring and weight
| dimensions l x w x h: | 7,6 x 5,4 x 1,9 m |
| weight: | 7.550 kg |
Equipment

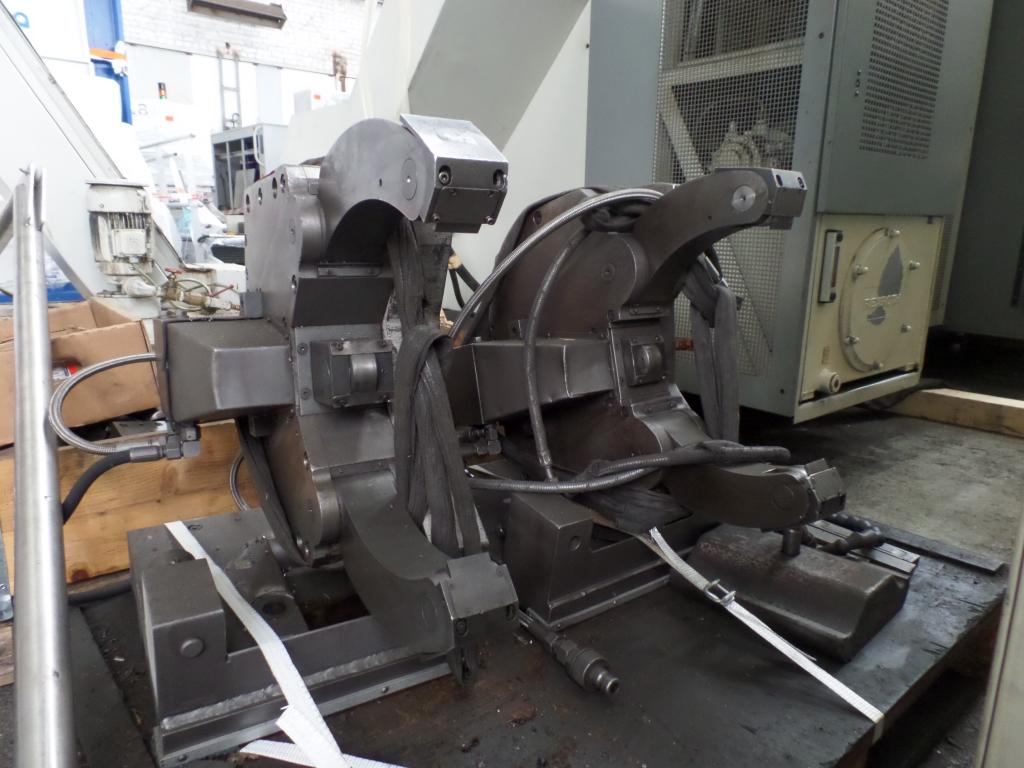

| CNC – Lathe for turning operations, 2 piece self-centering steady's diam. 260 + 420 mm, coolant equipment with integrated chip conveyor, power chuck FORKARDT Ø 500 mm. |
