manufacturer: STOLLE
built: 2011
size clamping area: ca. 3.000 x 1.500 mm
size base surface: ca. 1.500 x 1.200 mm
weight: ca. 6.210 kg



Ab Lager verfügbar

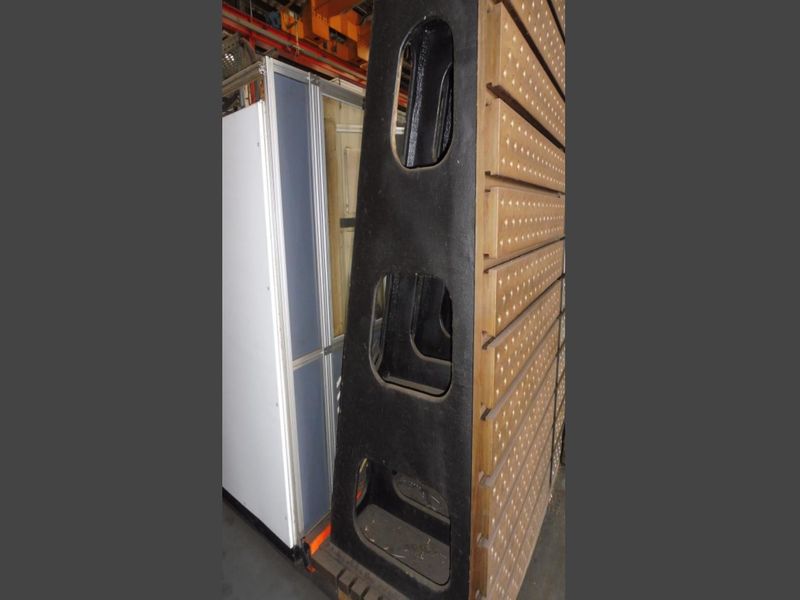

The STOLLE clamping angles are manufactured in a stable,
box-shaped cast construction
made of dense special cast iron with steel addition.
The outer surfaces are machined according to DIN 876/III,
the edges are angular to it.

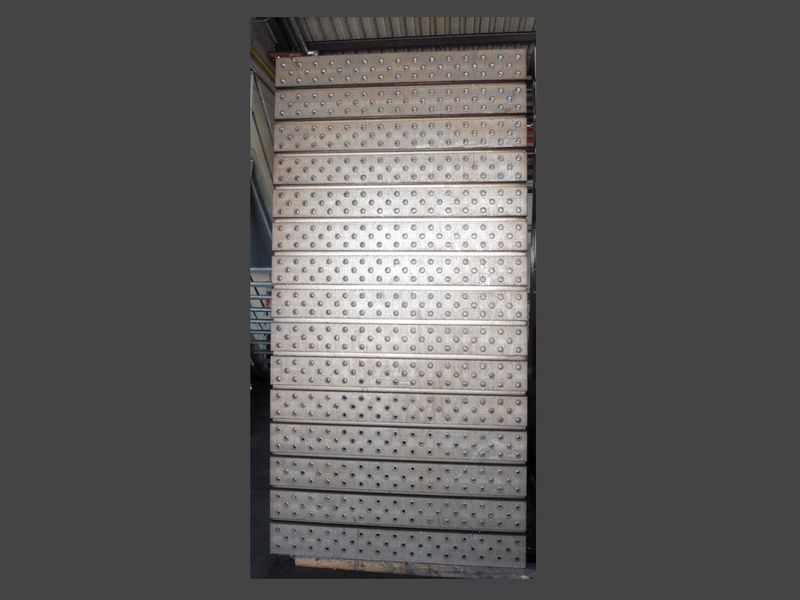

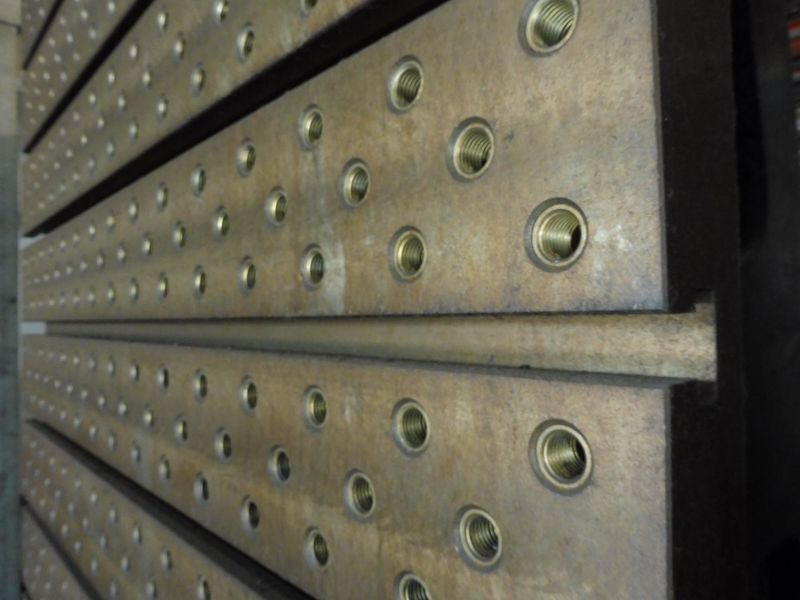

The clamping surface contains 14 T-slots according to DIN 650-28H12
at intervals of 200 mm as well as additional 660 threaded holes M 24
with ensat inserts.
The base surface is provided with a hole grid.
The raw surfaces are cleanly blasted and primed.
