| manufacturer | MILLUTENSIL |
| typ | BV 30 ER |
| built | 2012 - put into operation June 2012 |
Offer Data

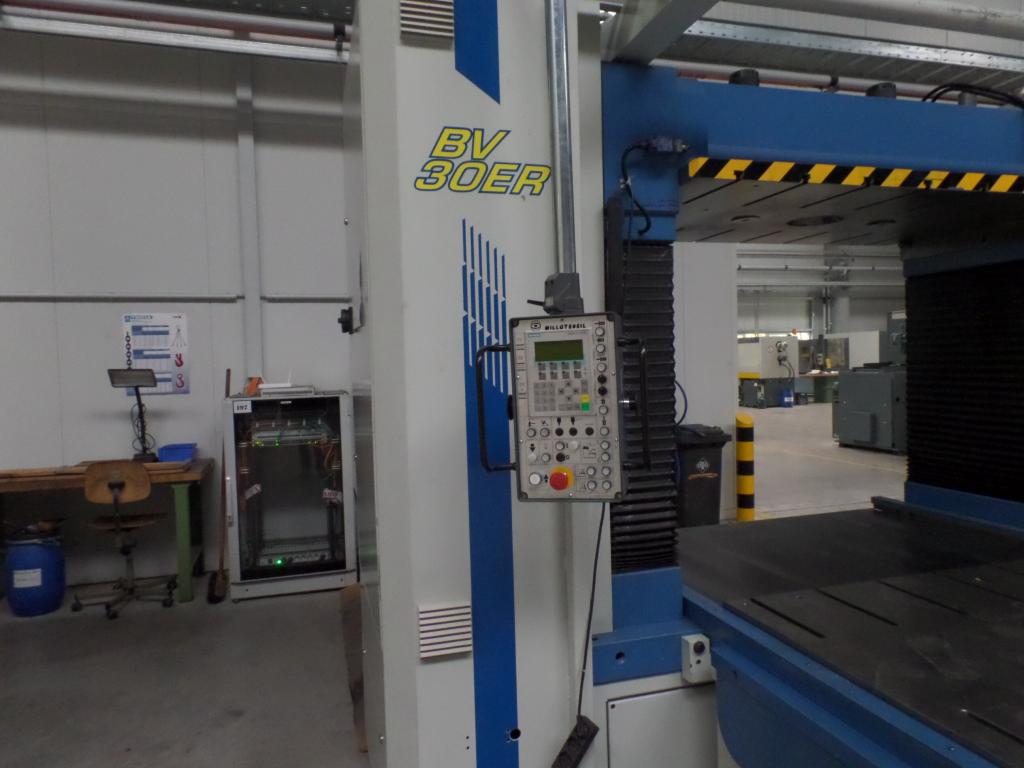

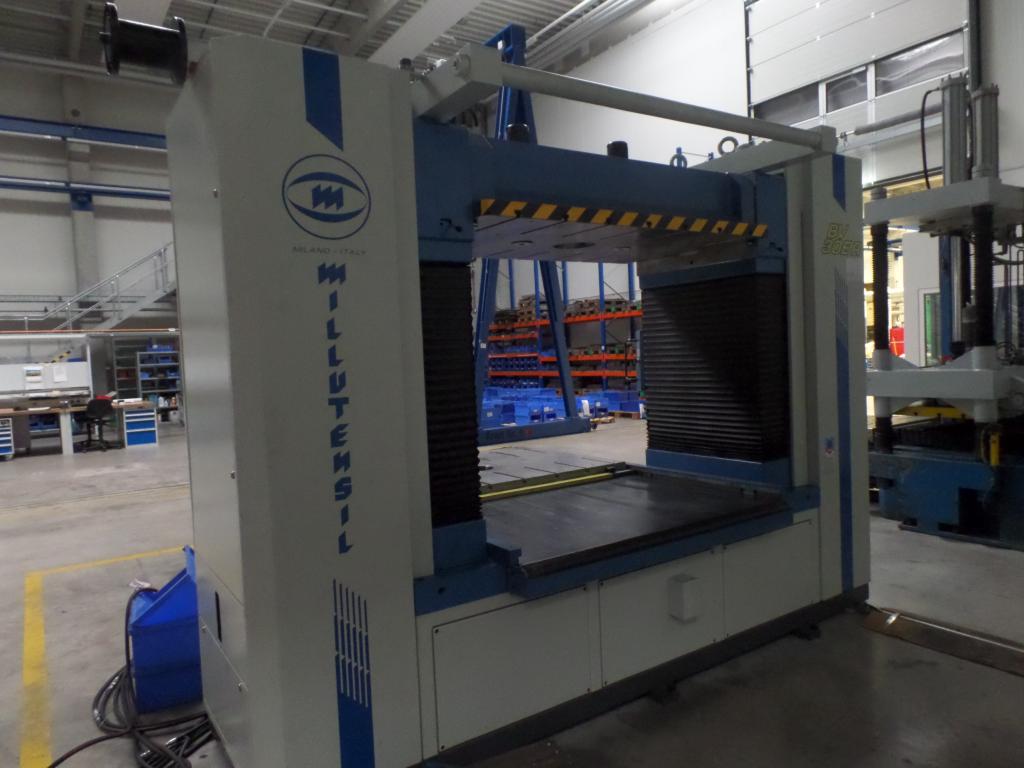

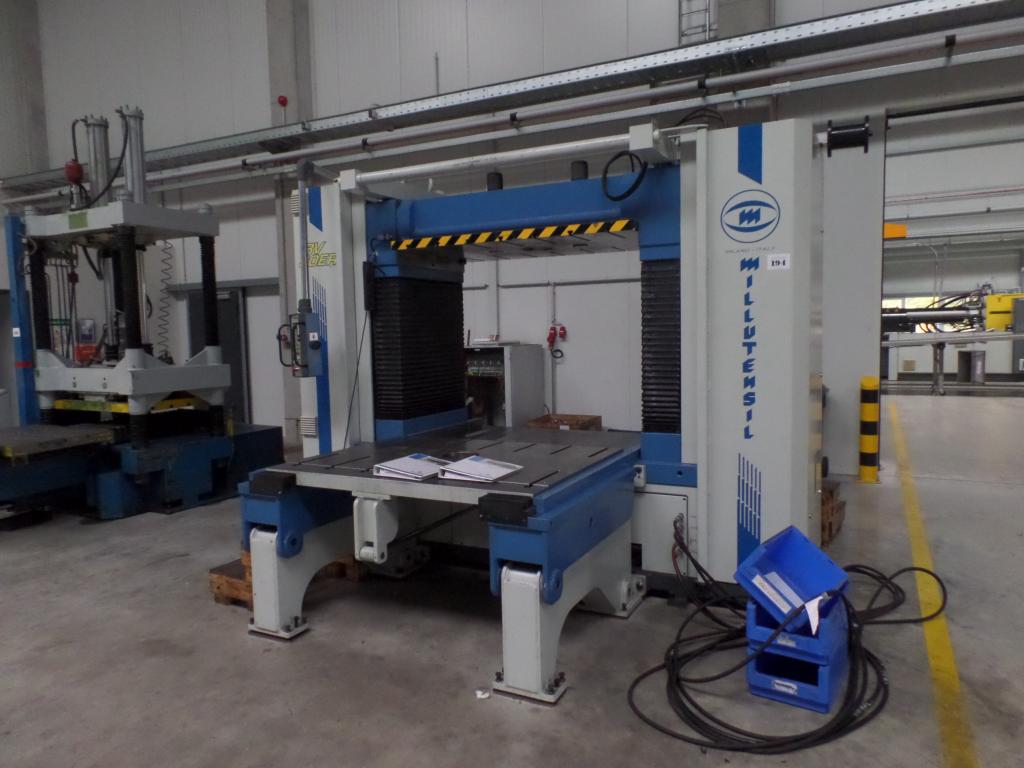

Die & Mould Spotting Press, like new - put into operation June 2012
Technical Data
| table clamping size: | 1.500 x 1.000 mm |
| width of t-slots: | 18 mm (DIN650) |
| Ø of centre bore: | 200 mm |
| table hight: | 750 mm |
| min. installation hight: | 450 mm |
| max. installation hight: | 1.200 mm |
| vertical stokeupper table: | 750 mm |
| travel lower table: | 960 mm |
| max. loading lower plotting table: | 7.000 kgs |
| max. loading upper plotting table: | 2.500 kgs |
| max. closing force: | 500 kN |
| max. retraction force: | 300 kN |
| control range hydraulic: | 10 - 200 bar |
| connection for operation of core-pulls: | 1 + 1 (1 conflux + 1 drain) |
| swivelling angle lower table: | 0 - 75° stepless |
| single shots: | 2 pieces, hydraulic operation |
| ejector cylinder: | integrated inlower table |
| electrical connection: | 400 V, 50 Hz |
| dimesnsion: | ca. 3.200 x 2.350 x 2.665 mm |
| machine weight: | 9.300 kgs |
