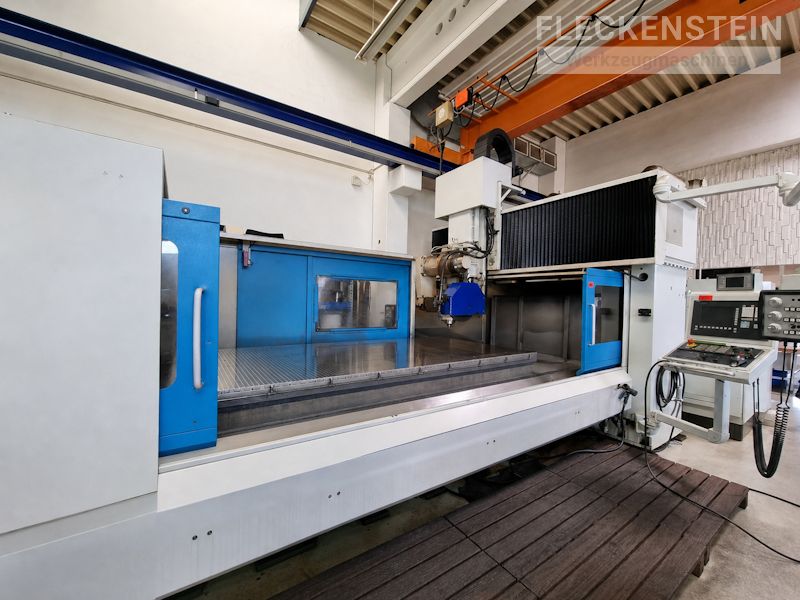

High precision flat and profile grinder
ABA TwinMaster 3015
Details
| Make: | ABA |
| Type: | TwinMaster 3015 |
| Built: | 2006 |

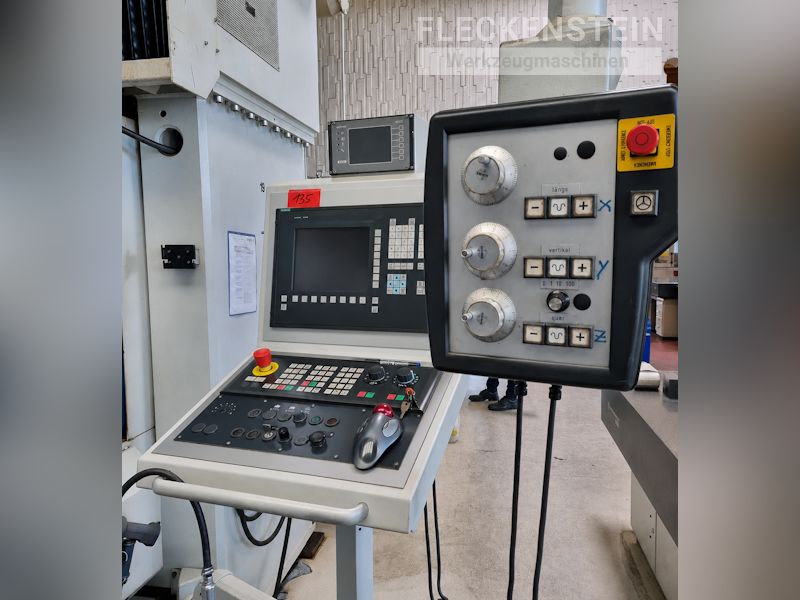

| Control: | SINUMERIK 840 D |
Description
The ABA TM 3015 CNC precision surface and profile grinding machine delivers outstanding accuracy and process reliability for demanding grinding applications on large workpieces. Equipped with a Siemens SINUMERIK 840 D control, generous travels of X 4,000 mm and Z 1,700 mm, and a 3,000 x 1,500 mm electro-permanent magnetic clamping table, the machine is ideally suited for surface, profile, groove and plunge grinding operations. Its powerful 35 kW grinding spindle, digital servo drives, advanced dressing technology and extensive equipment package ensure efficient, repeatable and high-quality grinding performance in precision manufacturing environments.
| Grinding area | |
| Travel X-Axis | 4.000 mm |
| Cross travel (Z-Axis) | 1.700 mm |
| Distance table surface – grinding spindle center | 1.050 mm Max. |

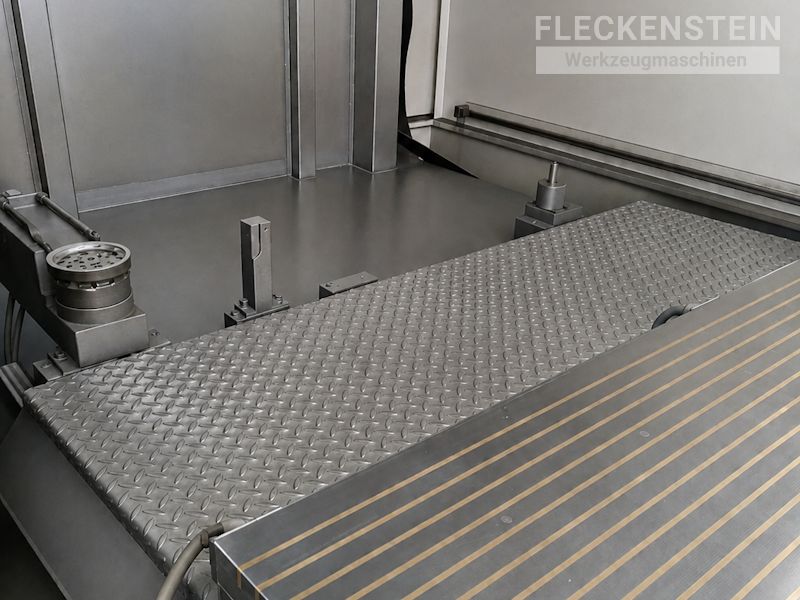

| Table | |
| Electro Permanent magnetic clamping plate with air-blow drilling | 3.000 x 1.500 mm |
| Max. workpiece weight | 4,5 t |

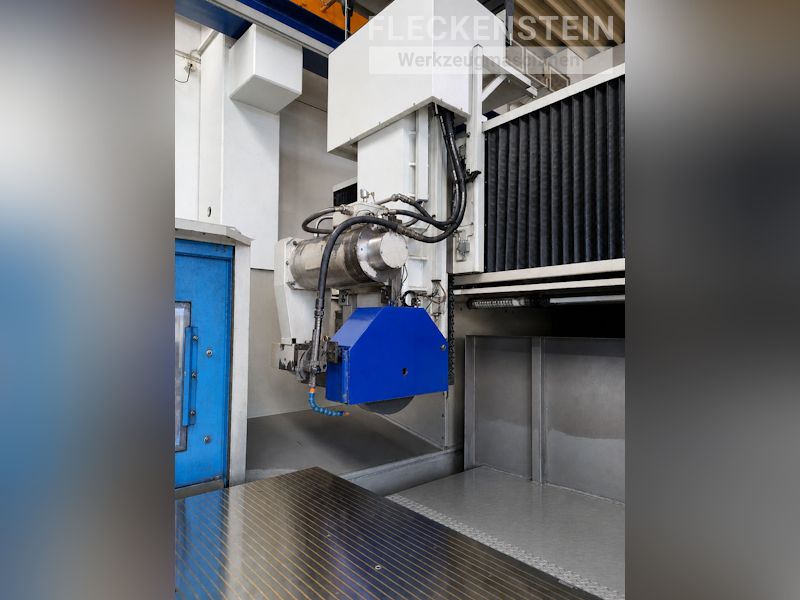

| Grinding spindle | |
| Power | 35 kW |
