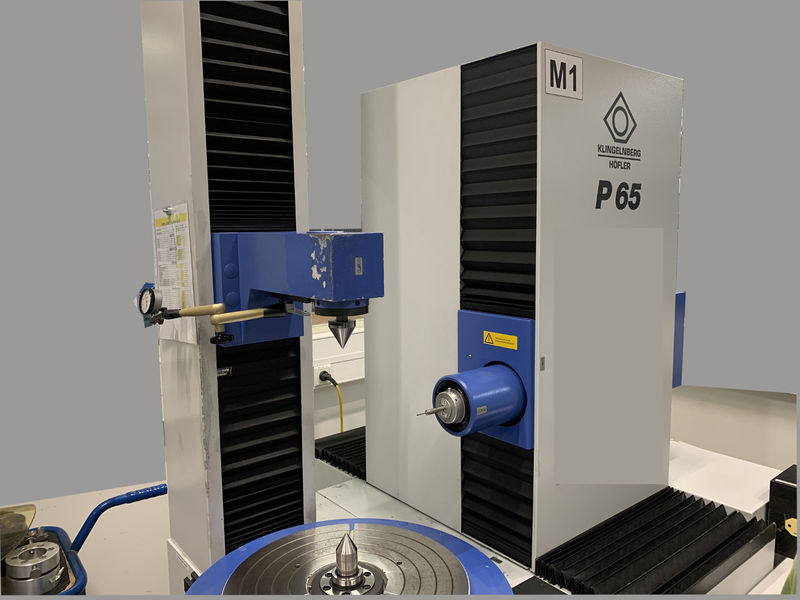

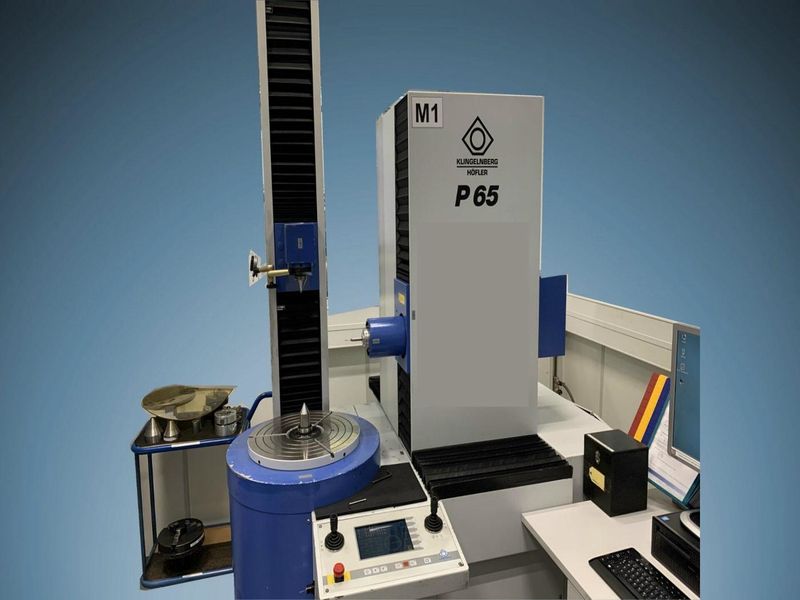

Used CNC Precision Measuring Center KLINGELNBERG P 65
Details
| Make: | KLINGELNBERG |
| Type: | P 65 |
| Built: | 1999 |
Equipment & Accessories

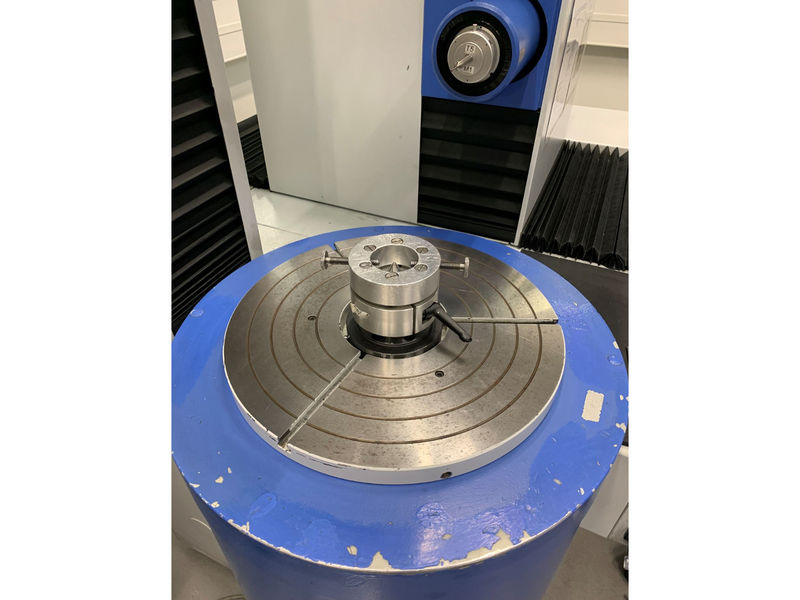

- Counterholder with tailstock
- Workshop PC HP EliteDesk and intel CORE i5 vPro Processor new in 2015 equipped with Windows 7 operating system
- 19‘‘ Screen, keyboard and mouse
- Operating terminal with joystick
- Continuous measuring equipment monitoring by Klingelnberg, last calibration 2019
KLINGELNBERG Software for measuring:
- Straight toothed spur gears
- Helical gears
- Internal gears
- Straight bevel gears
- Helical bevel gears
- Curved bevel gears
- Hobs
- Cutting wheels for slotting machines
- Geometric tolerances
The software was converted to WINDOWS 7 in 2015.
| Main data | |
| Measurable tooth size (module) | 0,5-15 mm |
| Vertical measuring range (Z-axis) | max. 550 mm |
| Hoizontal measuring range (X-axis) | +/- 200 mm |
| Helix angle depending on the software equipped | 0-90° |
| Clampable workpiece diameter between centres | 650 mm |
| Max. workpiece weight incl. clamping devices | 500 kg |
| Center distance | 1.000 mm |
| Tip diameter at the supports | 40 mm |
| Permissible moment of inertia | 30 kgm2 |
| Base diameter on the machine table | 104-460 mm |
| Dimension, weight | |
| Dimension approx. | 2,5 x 1,5 x 2,4 m |
| Machine weight approx | 3.000 kg |
| Supply connections | |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Power input | 3 kVA |
| Cross section of supply line | 2,5 mm2 |
| Fuse | 3 x 20 A |
