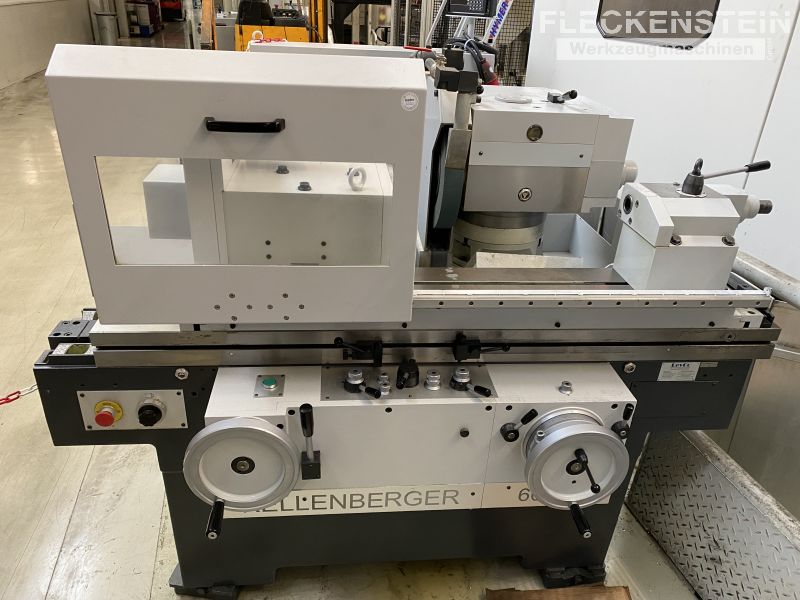

Used Universal cylindrical grinding machine KELLENBERGER 600U - 125
Details
| Make: | KELLENBERGER |
| Type: | 600 U - 125 |
| Built: | 1980 |
Do you have any questions?
Equipment & Accessories
Scope of geometric retrofit in 2018
- Slideways of X- and Z-axis regrinded, intertable and top table regrinded
- Centre height of headstock and tailstock readjusted
- Machine checked from the bottom up and rebuilt
- Drives for workpiece spindle and grinding wheel renewed with YASKAWA frequency converter
- Wearing parts replaced
- New machine painting in two-layer-structure with oil-resistant and abrasion paints Color RAL 7035 lightgrey and RAL 7016 anthracite
|

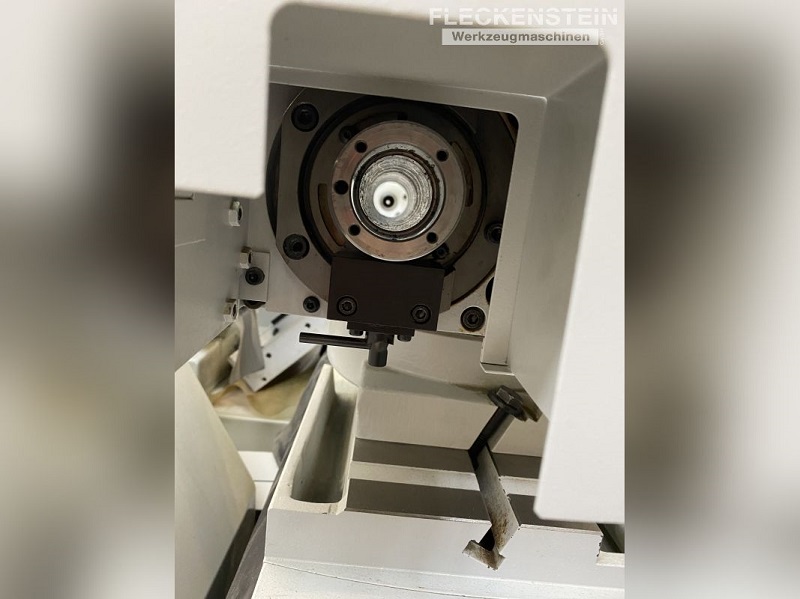

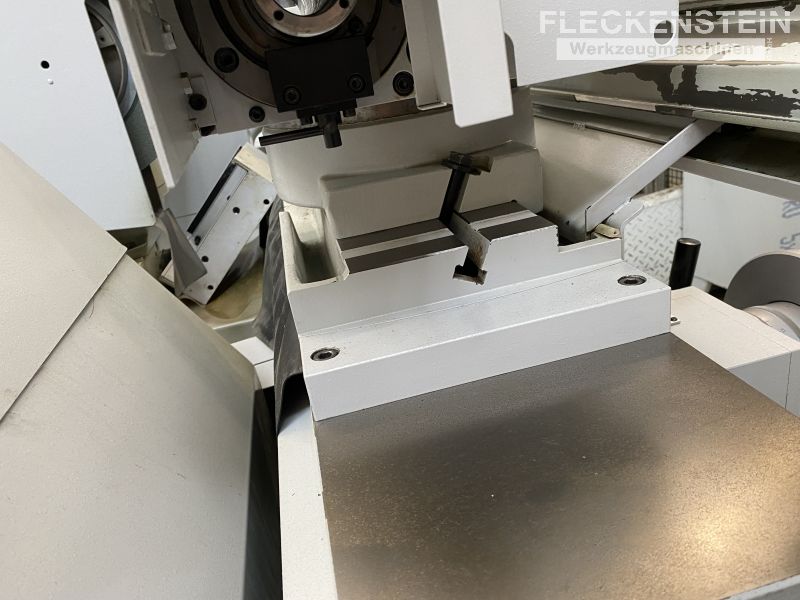

| Working area |
|
| Max. Peak width |
600 mm |
| Max. Workpiece Ø |
249 mm |
| Peak height |
125 mm |
|
| Table |
|
| Max. Travel |
900 mm |
| Travel per handwheel rotation course /fine |
20 / 2,5 mm |
| Hydraulic wheel 0,02 - 6 |
mm/min stepless |
| Min. reversing distance |
2,5 mm |
| Holding time during reversing |
0 - 5 sec stepless |
| Swivel range |
11° |
|
| Cross slide |
|
| Max. Travel |
285 mm |
| Travel per handwheel rotation course/fine |
4/ 0,05 mm |
| Rapid flow and -return hydraulically |
40 mm |
| Hydraulic feed |
0 - 0,95 mm/Ø |
| Micro stop of the feed |
0,001 mm per graduation mark |
|
| Infeed grinding |
|
| Infeed speed course/fine |
0,25 - 25 µ/sec |
| Longitudinal grinding |
1 - 30 µ |
| Infeed amounts per table reversal left, right or both sides course/fine |
[nbsp] |
|
| Grinding wheel |
|
| Max. Dimension |
Ø 1400x50x127 mm |
| Grinding wheel speed |
1.000 - 1.530 min-1 stepless |
| Speed control via frequency converter |
YASKAWA New in 2018 |
|
| Tailstock |
|
| Taper |
MK 3 |
| Pinole way |
30 mm |
| Pinolen-Ø |
50 mm |
|
| Workpiece spindle |
|
| Spitzenkonus |
MK 5 |
| Speed range workpiece |
20 -400 min - 1 |
| Swivel range |
360 ° |
|
| Machine dimensions |
|
| Space requirement l x b x h |
2,8 x 2,0 x 1,5 m |
| Weight |
2.650 kg |
