CNC - Travelling column milling machine SORALUCE FL-10.000
Details
| Make: | SORALUCE |
| Type: | SLP-10.000 |
| Built: | 2016 |

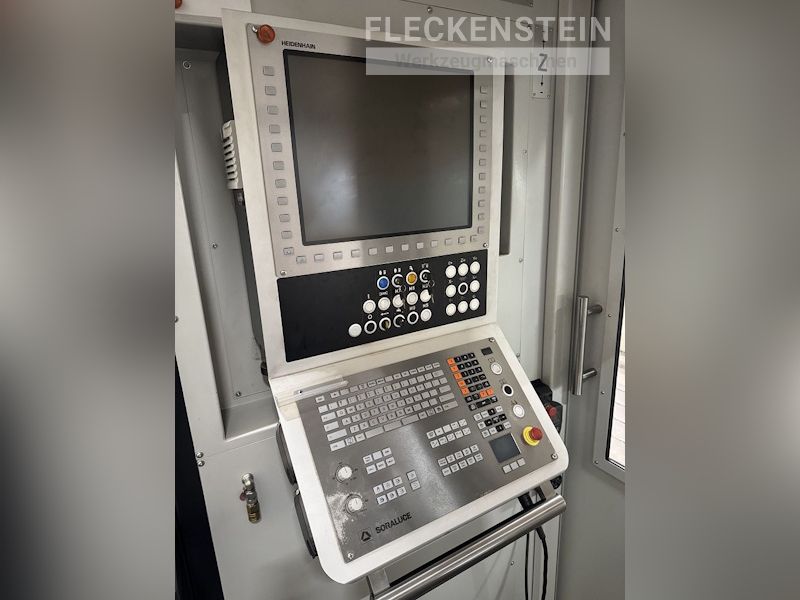

| Control: | HEIDENHAIN TNC 640 |
Description

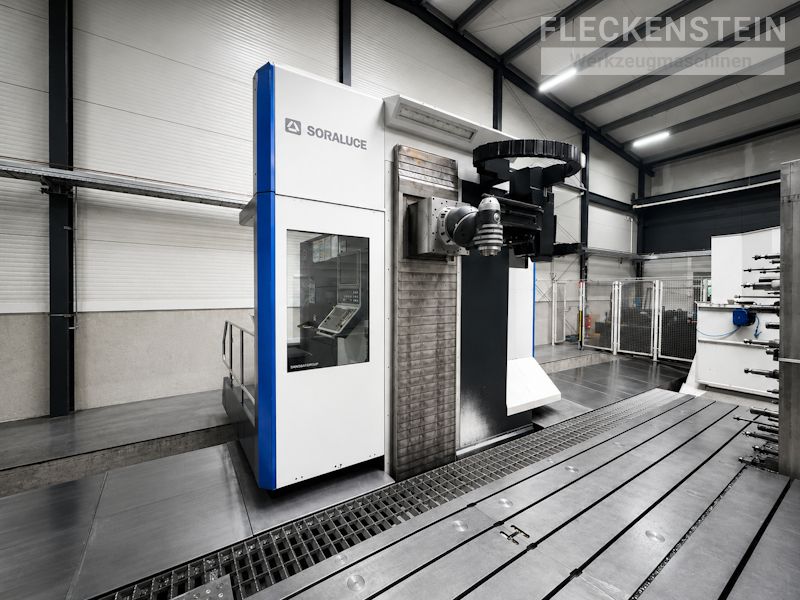

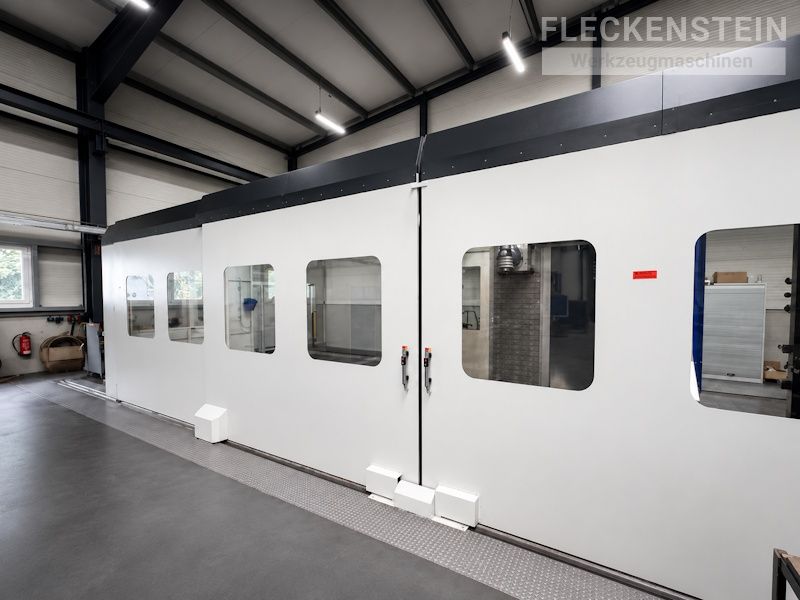

SORALUCE FL-10.000 CNC Travelling Column Milling Machine
The SORALUCE FL-10.000 is a high-performance CNC travelling column milling machine designed for precision machining of large and heavy workpieces. Equipped with a HEIDENHAIN TNC 640 CNC control, a 43 kW inline spindle, H205 universal milling head, and a 60-position automatic tool changer, this machine is ideally suited for toolmaking, mechanical engineering, energy, and heavy industry applications.

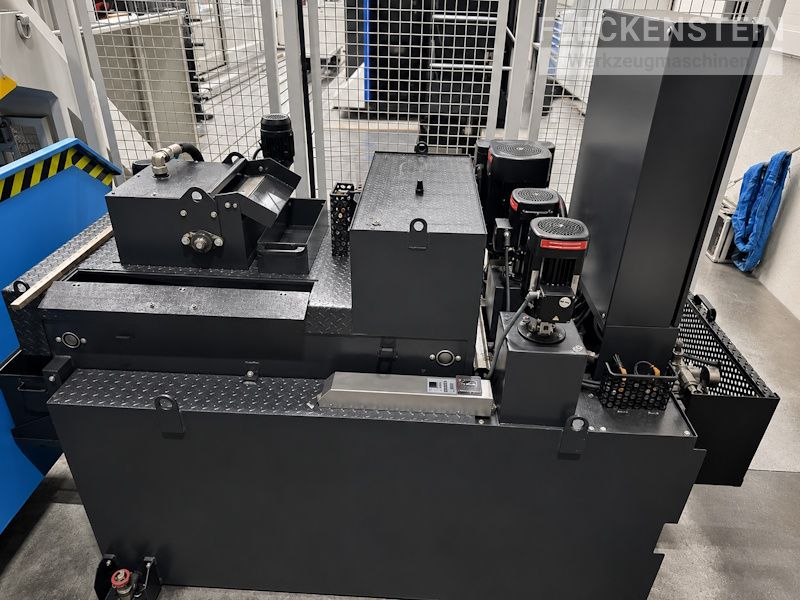

Offering impressive travels of 10,000 × 2,200 × 1,300 mm, an 11,000 × 2,000 mm clamping area, and a SK50 BIG Plus spindle, the FL-10.000 combines rigidity, accuracy, and machining flexibility. Premium features such as Adaptive Control, Dynamics Active Stabilizer (DAS), Spindle Speed Variation (SSV), 40 bar through-spindle coolant, Hexagon 3D touch probe, Brankamp collision monitoring, and 4th-axis preparation ensure maximum productivity and machining reliability.
| Machine Travels | |
| Longitudinal movement (X-axis) | 10,000 mm |
| Vertical movement (Y-axis) | 2,200 mm |
| Transverse movement (Z-axis) | 1,300 mm |
| Feeds | |
| X, Y, and Z axes, infinitely variable | 2 - 10,000 mm/min. |
| Max. feed forces X-Y-Z | 16,000 N |
| Clamping table | |

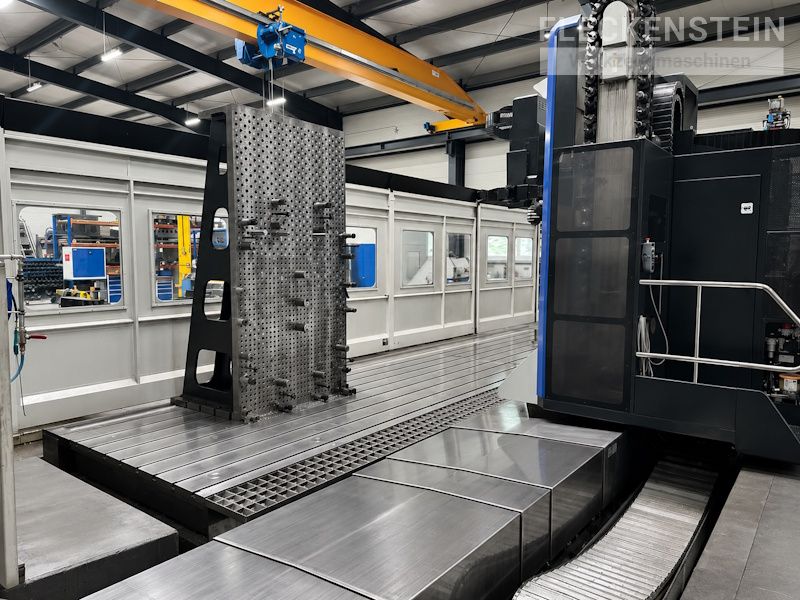

| Clamping surface | 11,000 x 2,000 mm |
| Max. workpiece weight | ca. 10,000 kg/m² |

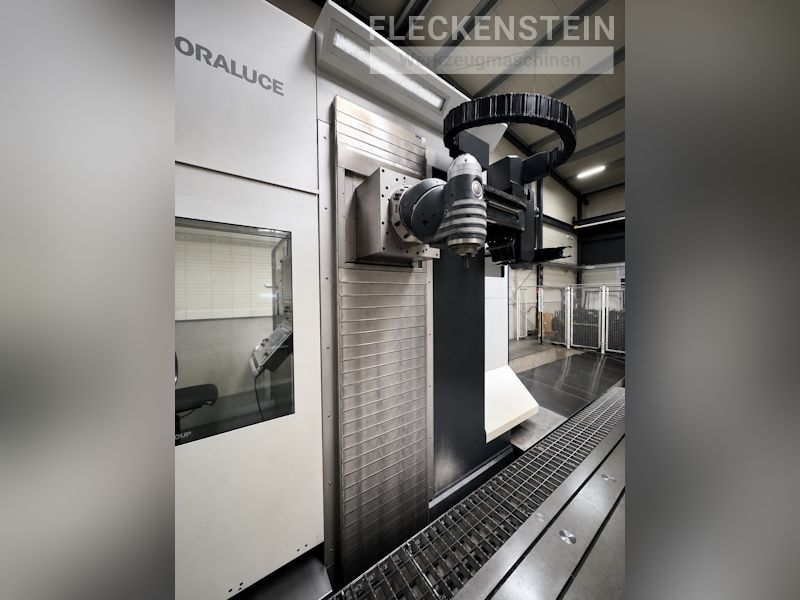

| Universal-NC-Milling Head H205 | |
| Indexing | 2.5 x 2.5 ° Hirth coupling |
| Power of Inline Spindle Motor | 43 kW |
| Speed range, infinitely variable | 15 - 5,000 rpm |
| Max. torque | 900 Nm |

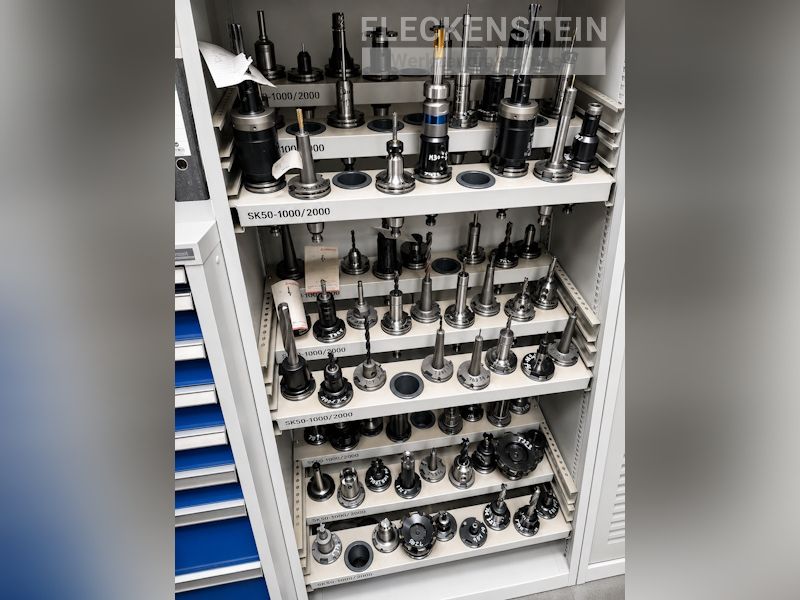

| Tool holder | SK50 BIG Plus DIN 69871-AD |

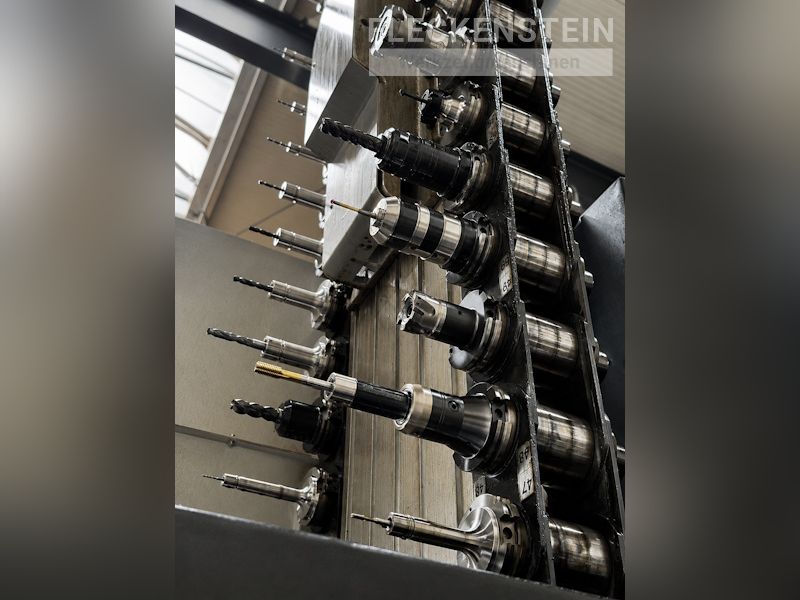

| Automatic Toolchanger | |
| Tool positions | 60 |
| Dimensions and weight | |
| Machine footprint | approx. 18.0 x 6.0 m Without housing |
| Total height | approx. 4.9 m |
| Machine weight | approx. 40,000 kg |
