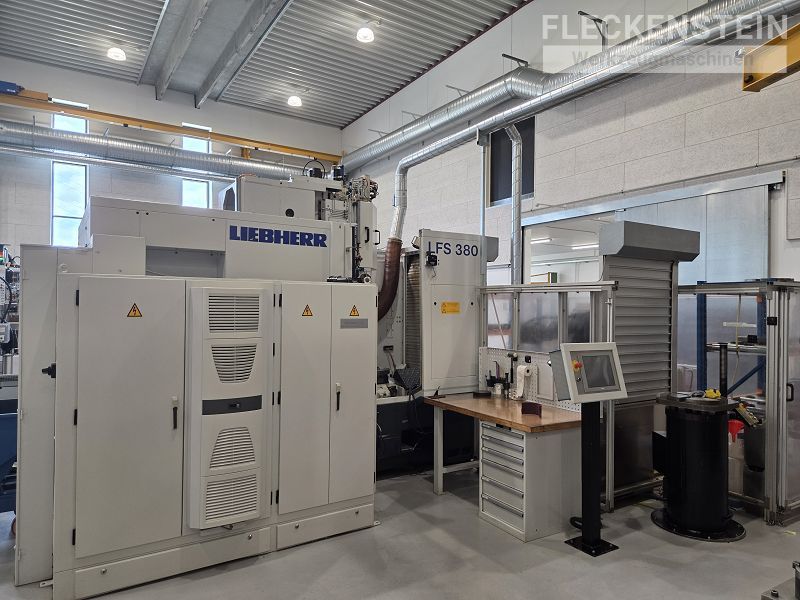

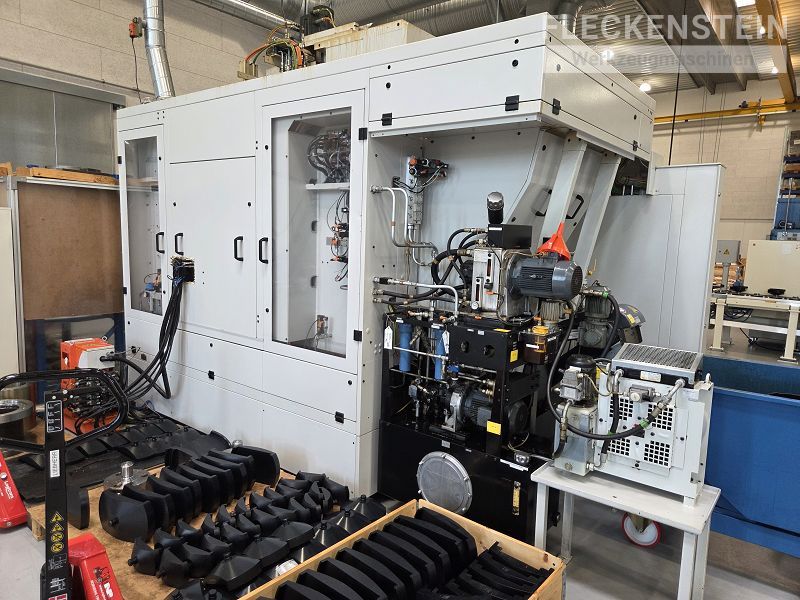

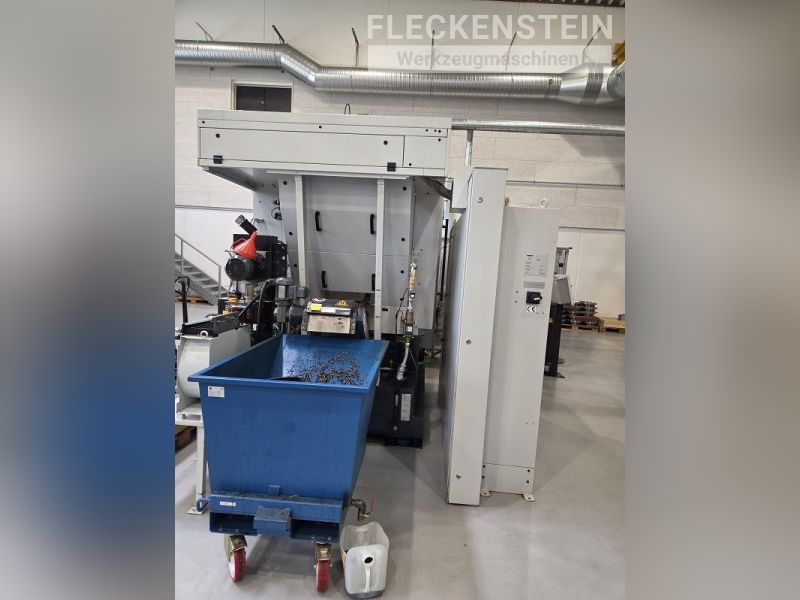

CNC - Gear Shaping Machine LIEBHERR LFS 380
Details
| Make: | LIEBHERR |
| Type: | LFS 280 |
| Built: | 2008 |

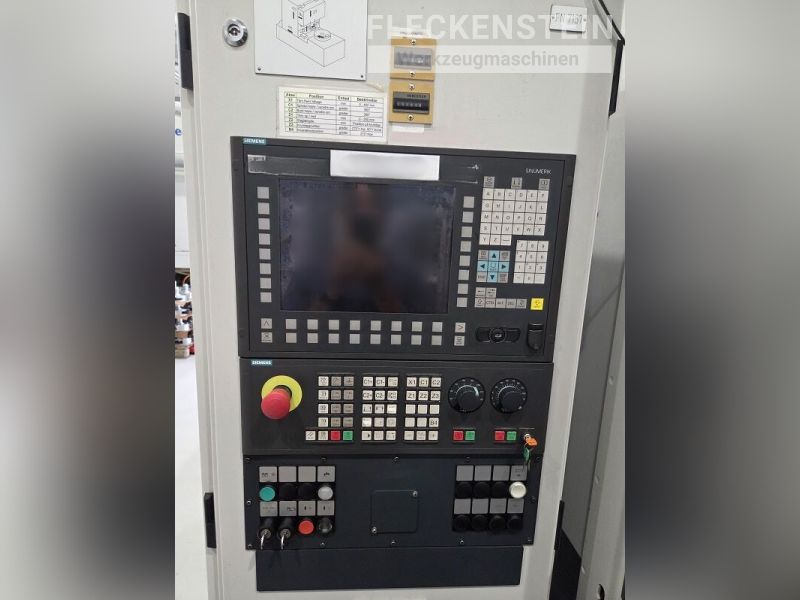

| Control: | SIEMENS Sinumerik 840D |

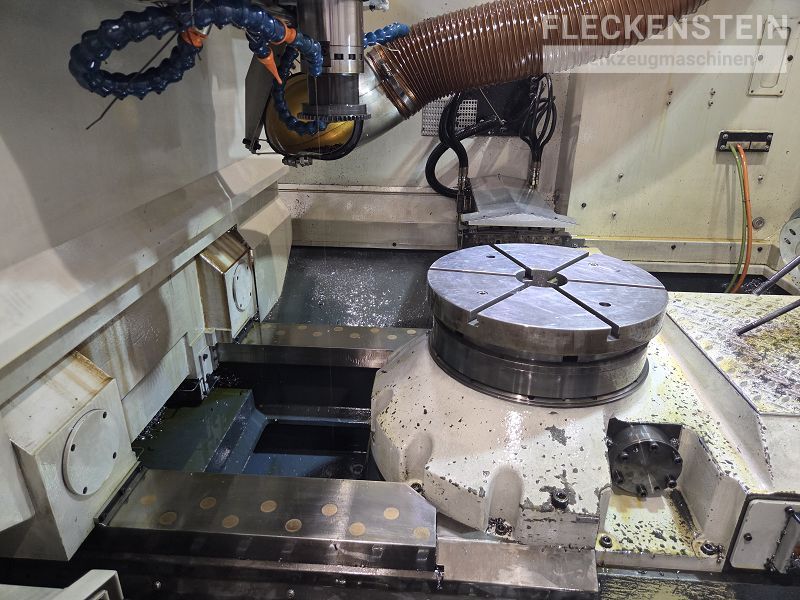

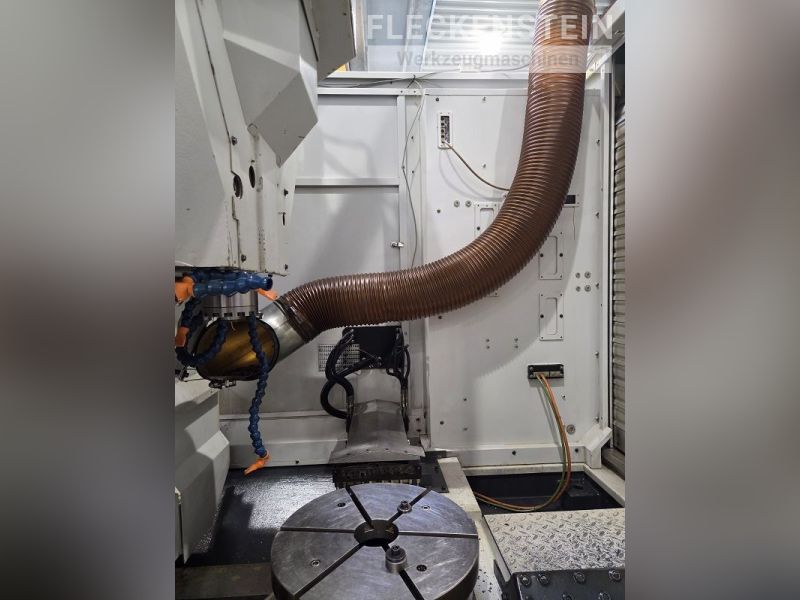

| Working area | ||
| Max. gear diameter | Ø 380 mm | Outside + Inside |
| Max. workpiece diameter | 400 / 600 (800) mm | Outside + Inside (limited) |
| Max. gear width | 200 mm | |
| Center distance between gear head and table center min./ max. | -50 / 450 mm | |
| Travel range of lifting position | 250 mm | (Z-Axis) |
| Max. module for straight gearing | 6 mm | |
| Max. axial travel | 250 mm |
