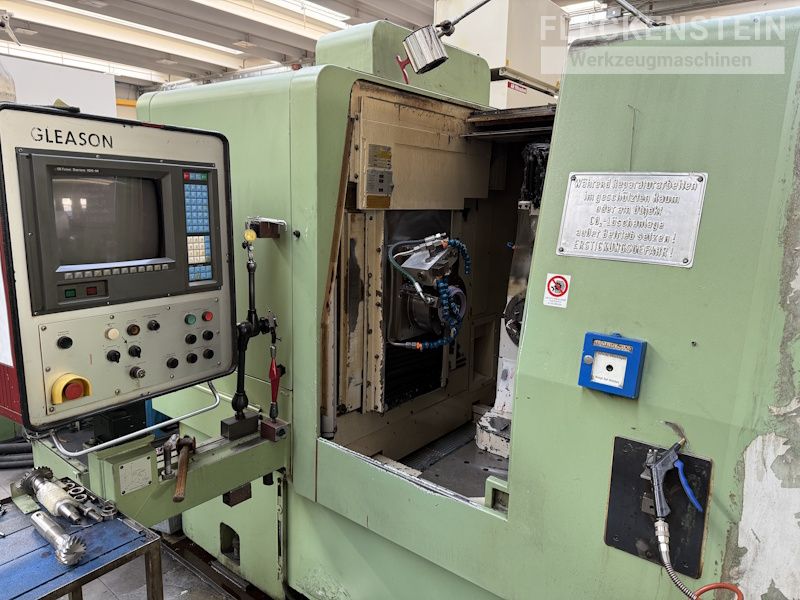

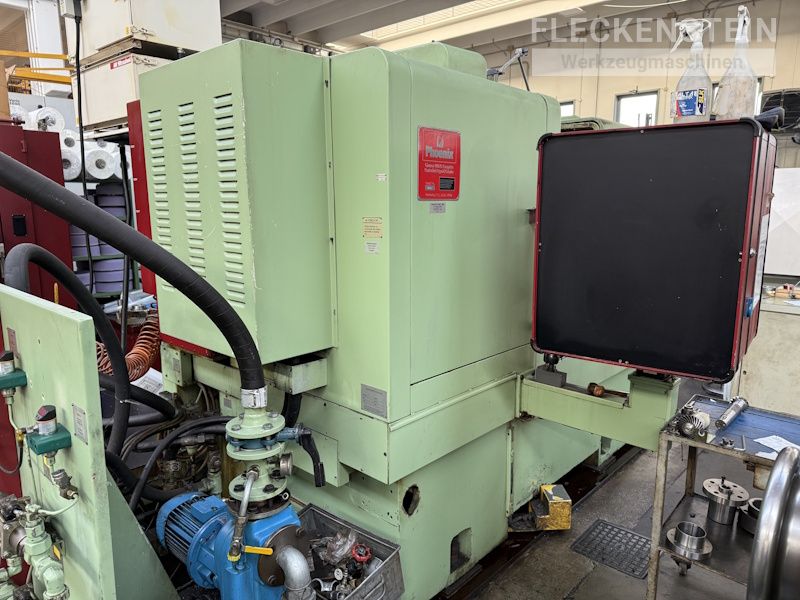

CNC-Bevel Gear Grinder
GLEASON PHOENIX 400HG
Details
| Make: | GLEASON |
| Type: | Phoenix 400HG |
| Built: | 1995 |
| Control: | FANUC Series 150M |
Request a quote
Description
The GLEASON Phoenix 400HG is a high-precision CNC bevel gear grinding machine designed for the efficient machining of spiral, hypoid, and Zerol bevel gears. Featuring a robust 6-axis design with an additional dressing axis, the machine enables fully interpolated movements between tool and workpiece, supporting both generating and formate grinding processes.
Equipped with a reliable FANUC Series 150M control system, the machine ensures synchronized axis movements, delivering exceptional profile accuracy, repeatability, and process stability. With a maximum workpiece diameter of 406 mm, a grinding spindle speed of up to 6,000 rpm, and advanced CNC-controlled dressing capabilities, the Phoenix 400HG is ideally suited for high-precision gear manufacturing applications.
The machine is designed for efficient setup and reduced changeover times, supported by a user-friendly Gleason HMI interface and integrated automation features such as automatic dressing and centralized lubrication. Additional equipment, including a RENISHAW centering system and a high-capacity coolant unit, further enhances machining accuracy and operational reliability. This makes the machine a powerful and cost-effective solution for demanding gear production environments.

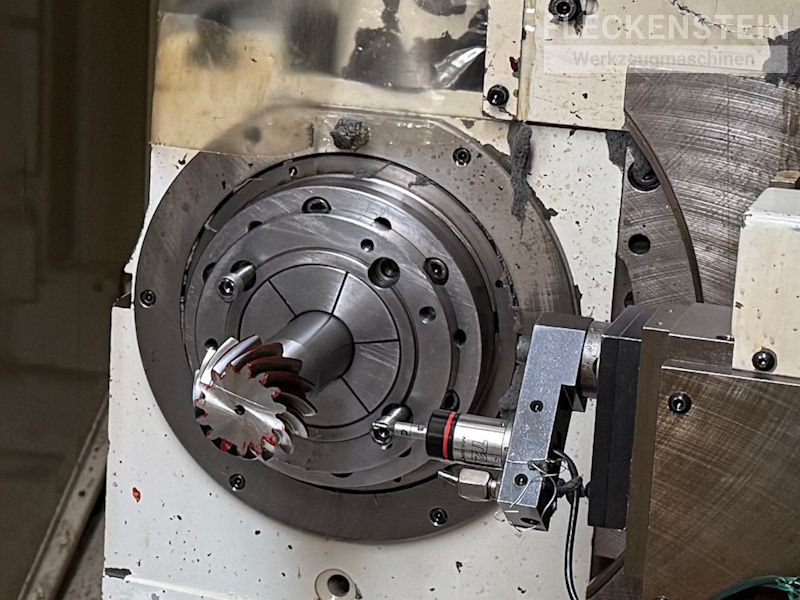

| Working Area | |
| Max. workpiece diameter | Ø 406,4 mm |
| Max. full depth | 25,4 mm |
| Max. face width | 66 mm |
| Maximum tooth ratio | 10:1 |
| Number of teeth | 5 - 200 |

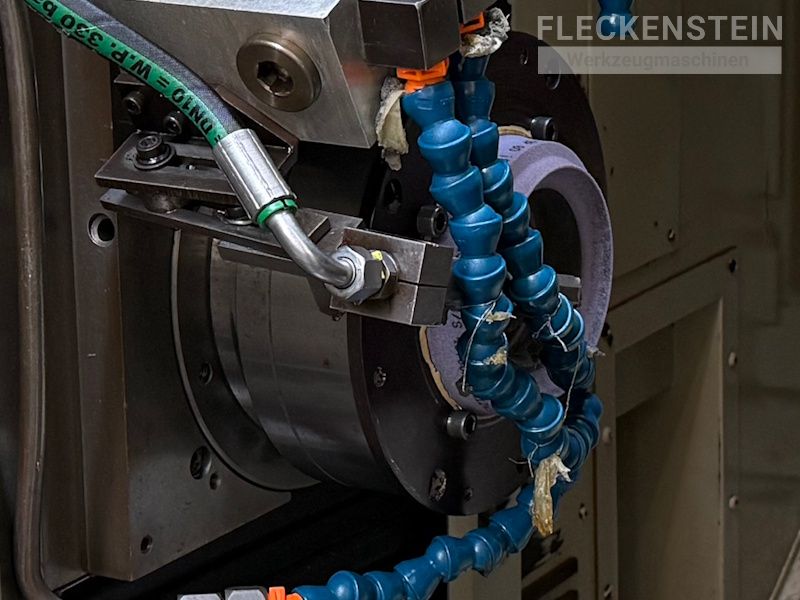

| Grinding wheel diameter, max. | Ø 20,4 inch |
| Machine specifications | |
| X-axis (horizontal workpiece slide) | -114 / +178 mm |
| Y-axis (vertical travel) | -178 / +190 mm |
| Z-axis (workpiece slide) | -13 / +500 mm |
| B-axis (tilting axis, taper angle) | - 3 / +90 ° |
| Machine center to workpiece spindle face | 165 mm fixed |
| Workpiece spindle diameter | 5 3/64 Inch Gleason No. 50 |
| Grinding spindle speed range | 900 – 6.000 U/min |
| Max. dressing spindle speed | 8.000 U/min |
| Dimensions and weight | |
| Footprint for the machine, including the cooling system and control cabinet L x W approx. | 5,5 x 4,6 m |
| Machine height approx. | 2,54 m |
| Machine weight approx. | 10.000 kg |
| Equipment and Accessories | |

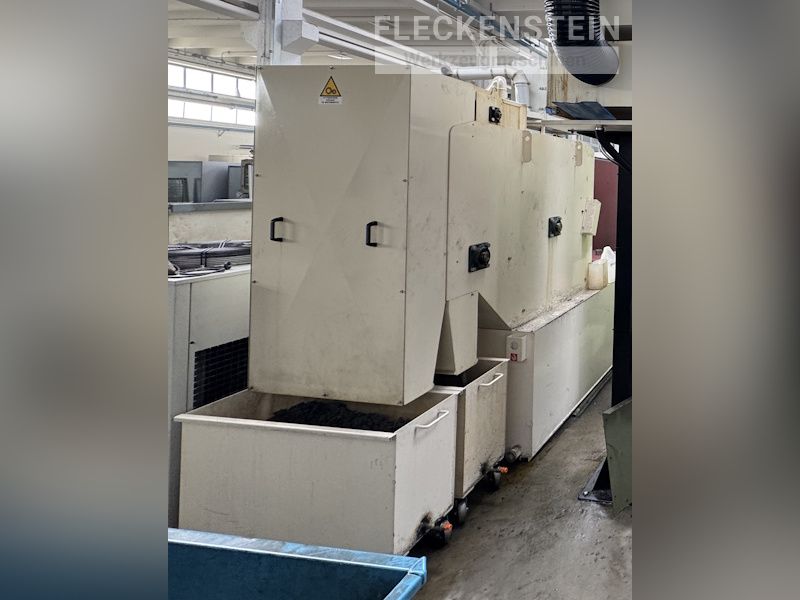

| • GLEASON PHOENIX 400HG CNC machine with FANUC 150M control system • Gleason HMI – user interface for easy entry of gear parameters and correction values • Automatic dressing unit with dressing spindle • Fully CNC-controlled machine design optimized for the shortest setup and changeover times as well as the highest gear accuracy and grinding performance • All axes and spindles equipped with FANUC drive technology • Central lubrication system • RENISHAW electronic centering device for precise rotational positioning of the workpiece • Coolant system with recirculation, oil tank approx. 1,000 L • Prepared for oil mist extraction • Full enclosure of the work area • Hydraulic power unit • Machine light • Manuals |
' |
