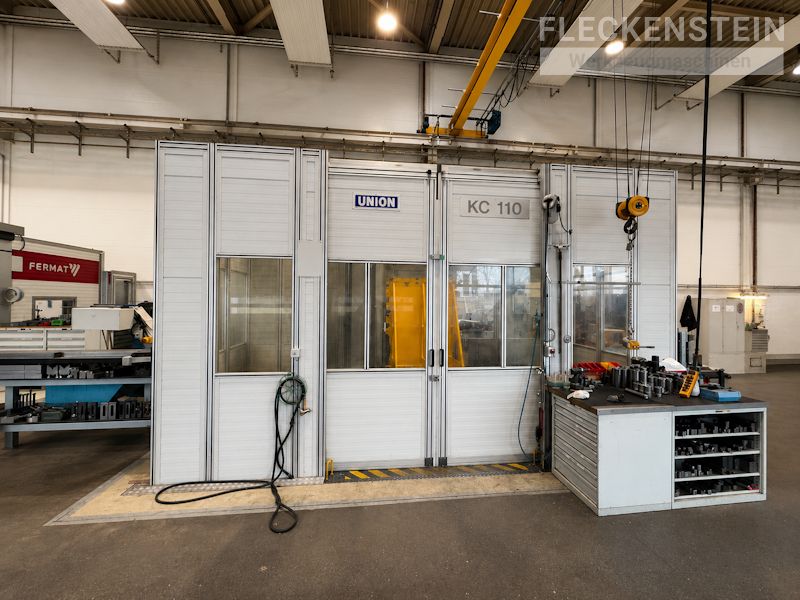

Boring Mill T-Type
UNION KC110
Video about the machine
Details
| Make: | UNION |
| Type: | KC110 |
| Built: | 2008 |

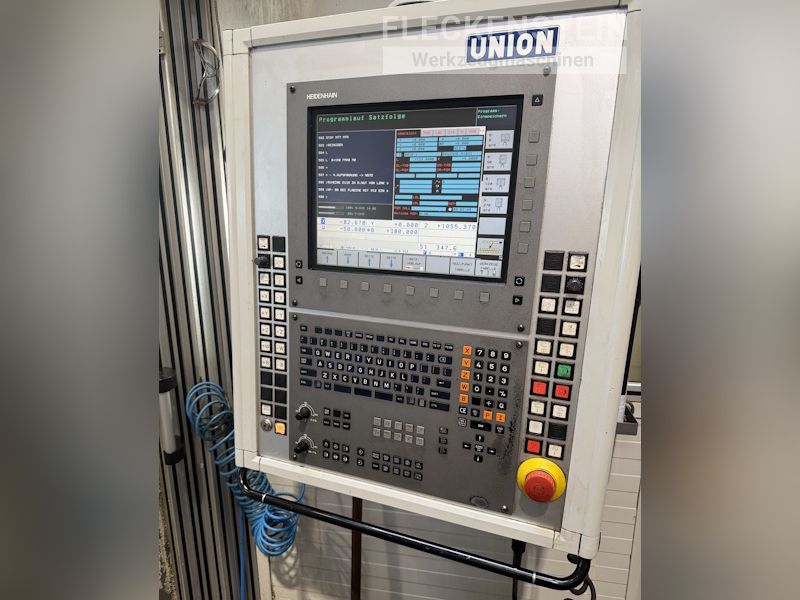

| Control: | HEIDENHAIN iTNC 530 |
Description

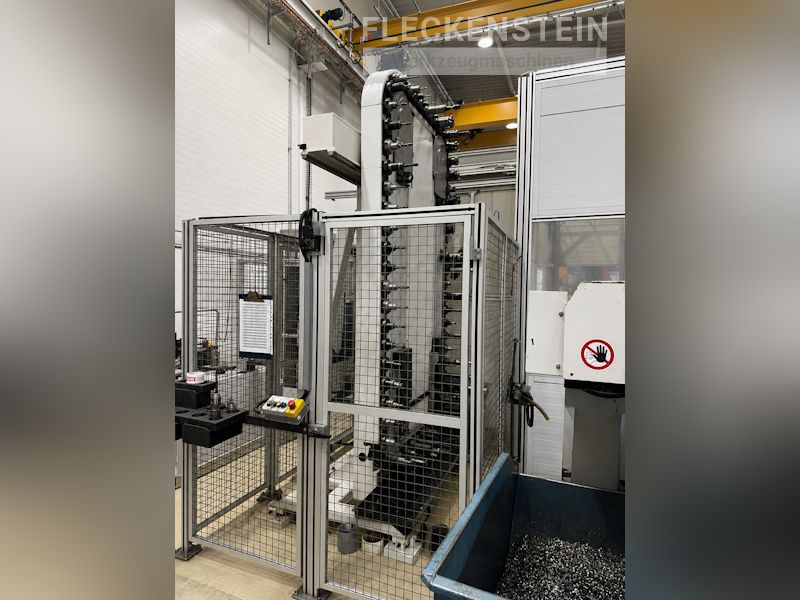

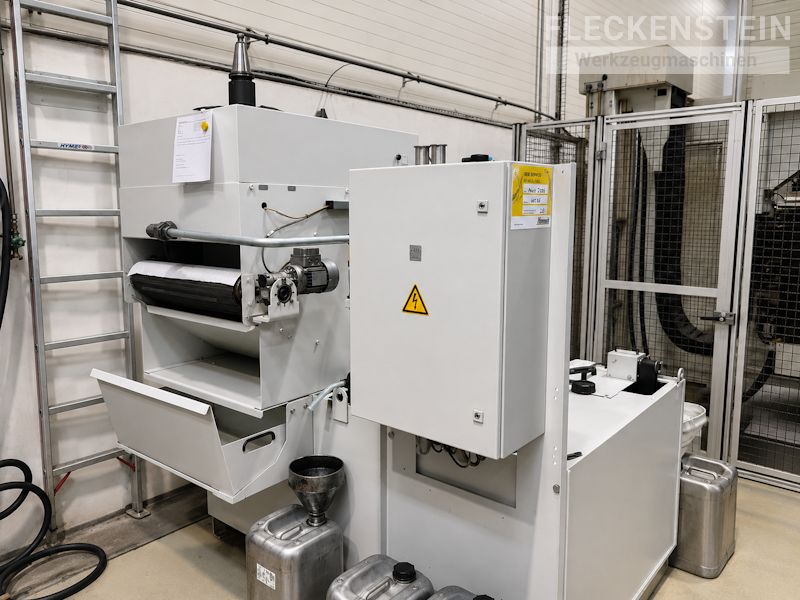

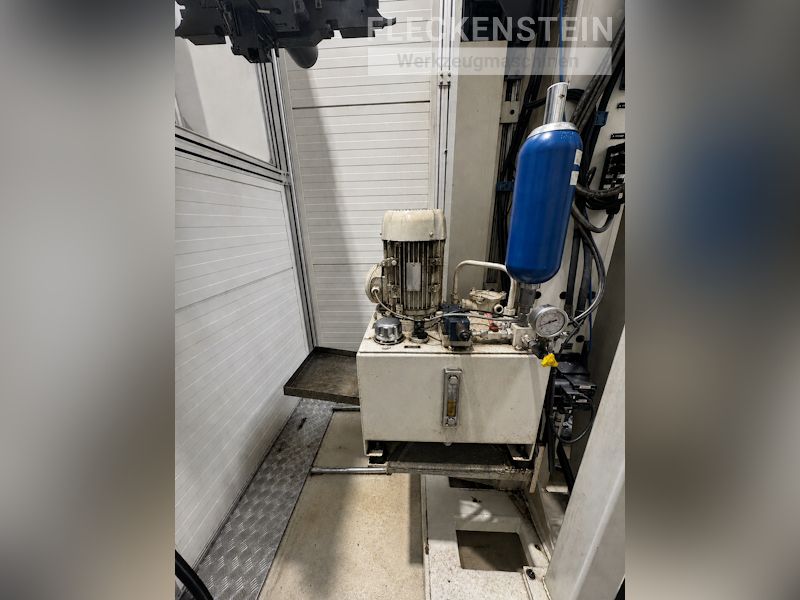

The UNION KC 110 CNC boring mill in rigid T-type cross-bed design offers outstanding precision, power and reliability for efficient complete machining of prismatic workpieces. Equipped with a HEIDENHAIN iTNC 530 control, a 110 mm spindle and continuously variable spindle speeds up to 3,000 rpm, the machine is designed for demanding heavy-duty machining applications. With travels of X 2,500 mm, Y 2,000 mm and Z 1,500 mm, the UNION KC 110 is perfectly suited for large-scale machining tasks in modern production environments. Additional highlights include a 60-position automatic tool changer, high-pressure coolant system and an extensive refurbishment package ensuring long-term performance and accuracy.

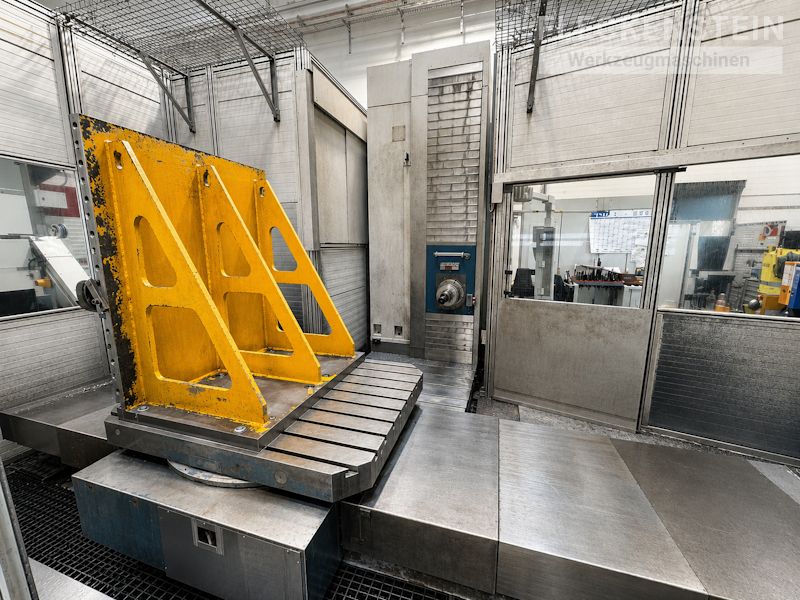

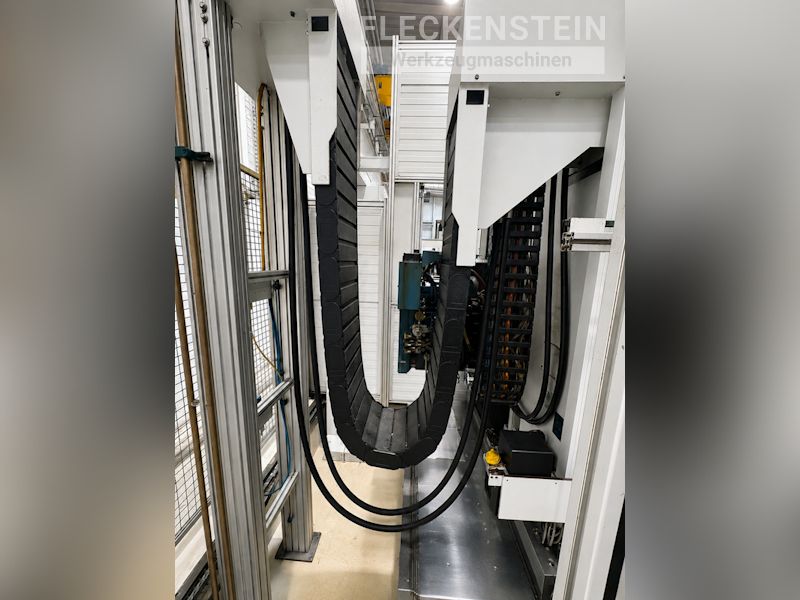

| Working area | |
| X-Axis, lateral movement table | 2,500 mm |
| Y-Axis, vertical movement spindle unit | 2,000 mm |
| Z-Axis, longitudinal movement column | 1,500 mm |
| W-Axis, movement quill | 550 mm |
| B-Axis, number of positions | 360,000 x 0.001° |
| Machining unit | |

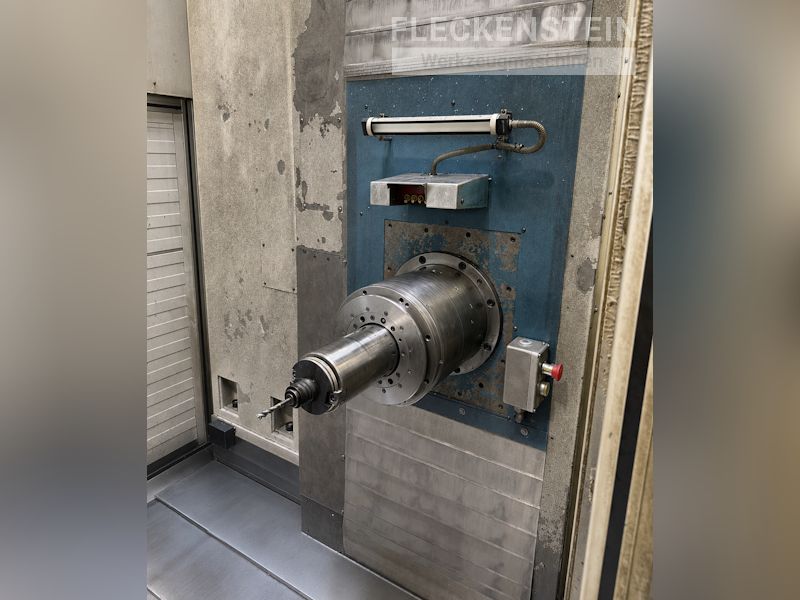

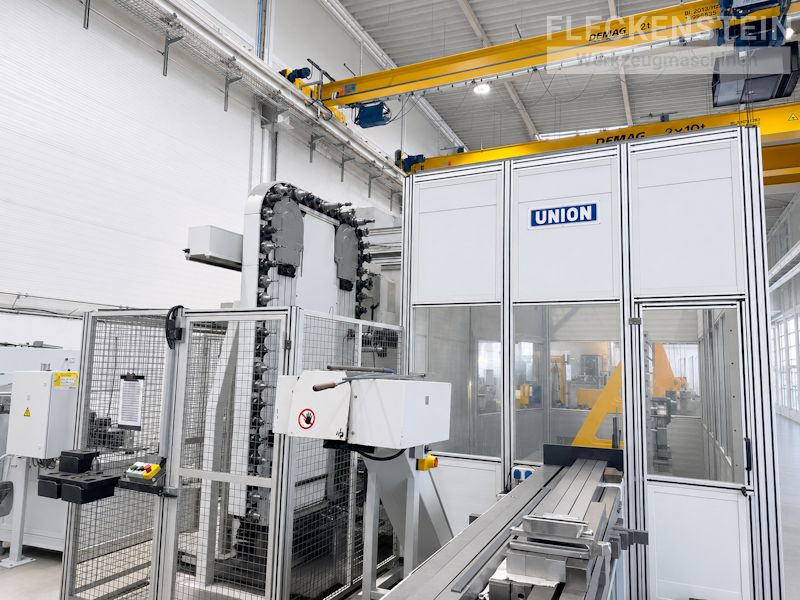

| Spindle diameter | 110 mm |
| Spindle speed, stepless | 5 - 3,000 min-1 |
| Lowest position above table surface | 0 mm |
| Spindle taper (short tapere cc. to DIN 69871) | SK 50 Form AD |
| Spindle power S1 (100%) / S6 (60%) | 22/27 kW |
| Max. torque at spindle | 2,012 Nm |
| NC – rotary table | |
| Clamping surface | 1,600 x 1,250 mm |
| Center hole in table | Ø100 H6 mm |
| Table load (max.200mm outside table center) | 6,000 kg |
| Tool magazine | |
| Number of pockets | 60 |
| Max. tool-Ø adjacent slots occupied | 125 mm |
| Max. tool-Ø adjacent slots free | 250 mm |
