| manufacturer: | HESSAPP |
| type: | DV 120 |
| built: | 1999 |
| control: | SIEMENS SINUMERIK 840 C |
Offer Data

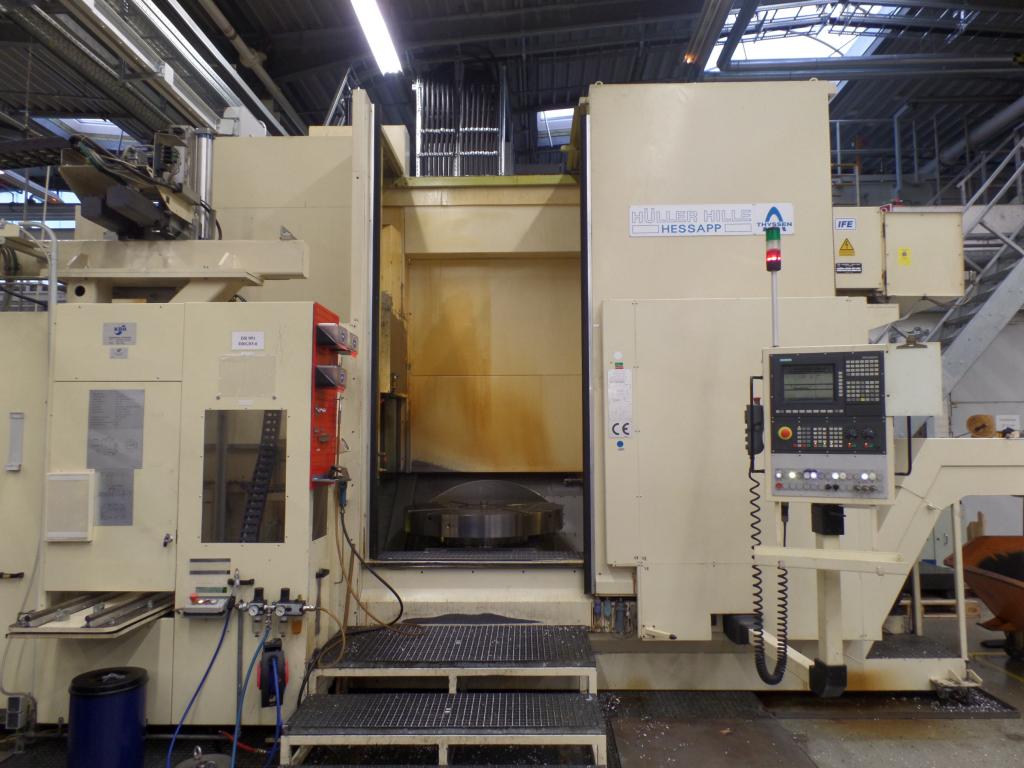

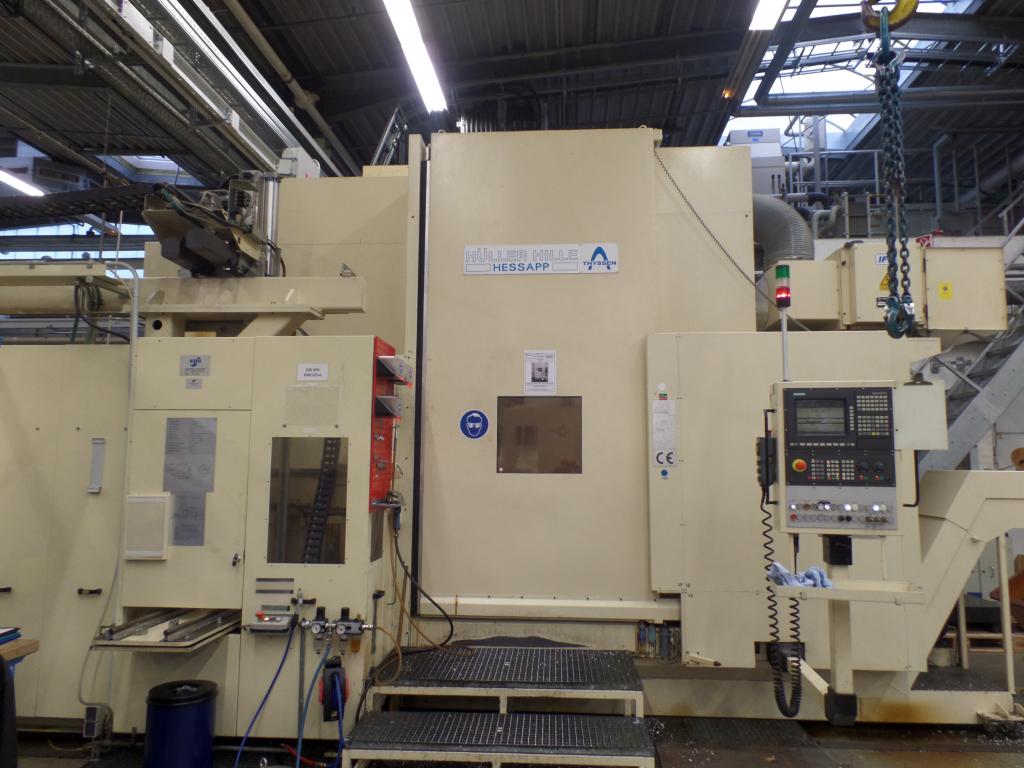

2 piece used CNC Vertical Lathes, in very good condition
working area

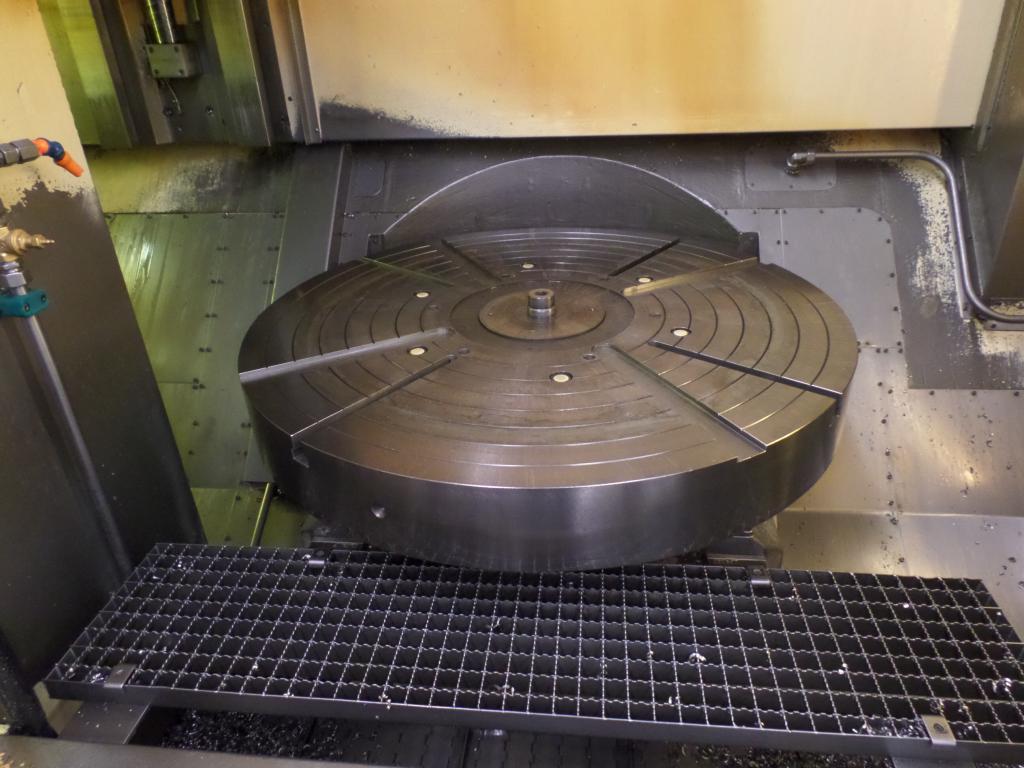

| face plate diam: | 1.200 mm |
| turning diam: | 1.000 mm |
| swing diam: | 1.250 mm |
| turning height: | 1.000 mm |
main spindle
| cylindrical spindel taper - diam.: | 640 mm |
| spindle diam. front bearing: | 500 mm |
| spindle speed 1 gear step: | 3,15 - 112 min-1 |
| spindle speed 2 gear step: | 12,5 - 450 min-1 |
| power: | 63 kW |
cross slide
| total travel X-axis: | 1.400 mm |
| travel X-axis from spindle center to the left side: | - 1.022 mm |
| travel X-axis from spindle centre to the right side: | 378 mm |
| travel Z-axis: | 1.000 mm |
| ram stroke (stroke extension) Z-axis: | 300 mm |
| ram section: | 220 x 217 mm |
| rapid feed X- and Z-axis | 14.000 mm/min |
tool magazine
| number of tools: | 40 |
| tool taper DIN 69880: | VDI 60 |
| tool length max.: | 380 mm |
| tool weight max.: | 35 kg |

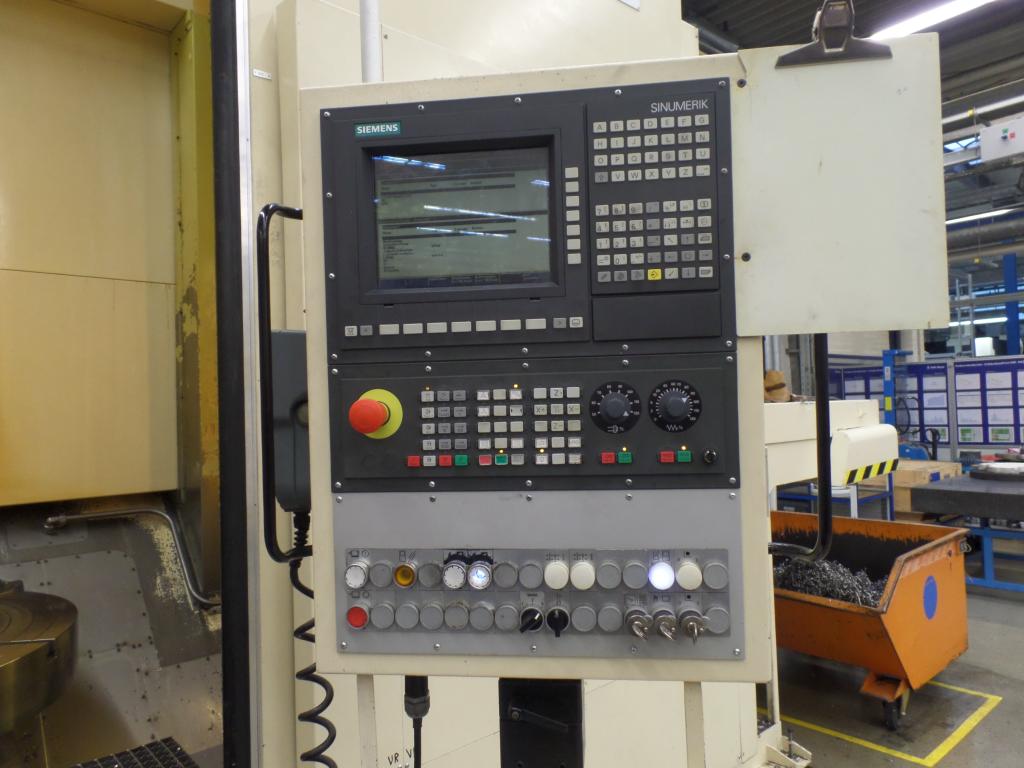

CNC-control
SINUMERIK 840 C
measuring and weight
| machine weight ca. | 22 to. |
| dimension l x w x h ca. | 10,8 x 4,2 x 4,2 m |
Accessories
| manual face plate ø 1.200 mm, hydraulic clamping cylinder for additional power chuck, vertical stroke extension Z-axis-hydraulical, the working position are in both end positions in clamped state, chip conveyor, without coolant tank (has been connected on a central coolant) |
