| manufacturer: | MAX MÜLLER |
| type: | MDW 20 M x 3000 |
| built: | 2000/2002 |
| control: | SINUMERIK 840 C |
Offer Data

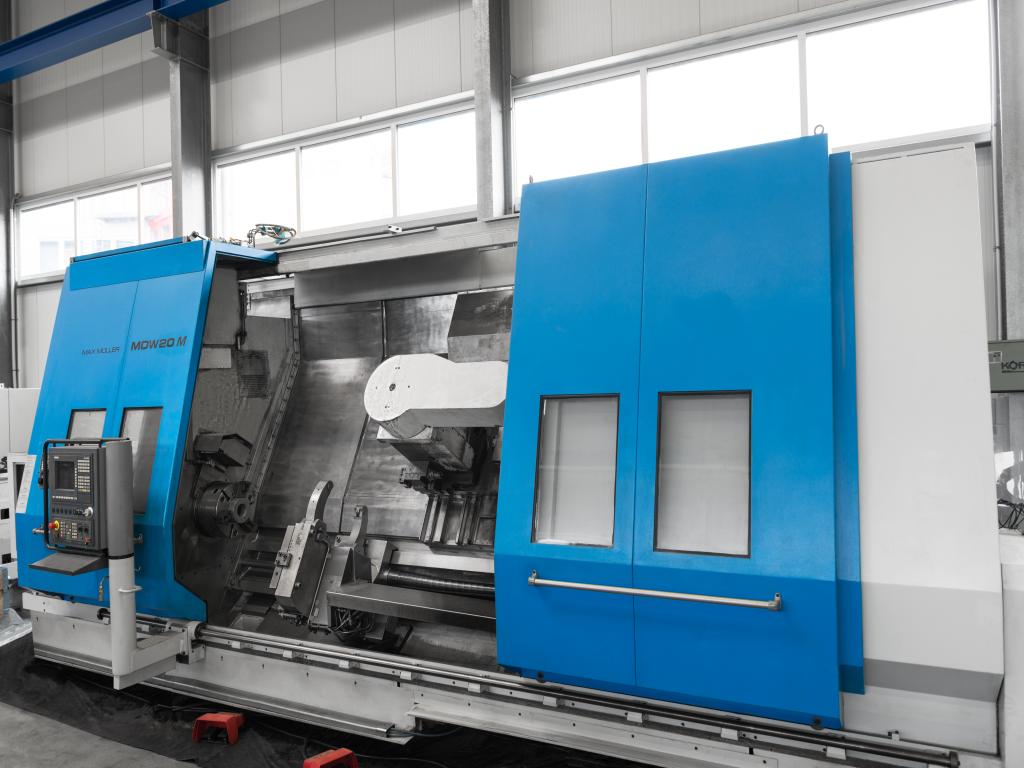

CNC-Lathe for Turning-, Milling- and Boring.
working area
| swing diameter over bed: | 850 mm |
| swing diamter over longitudinal slide: | 690 mm |
| distance between centers: | 3.050 mm |
| turning length: | 2.960 mm |

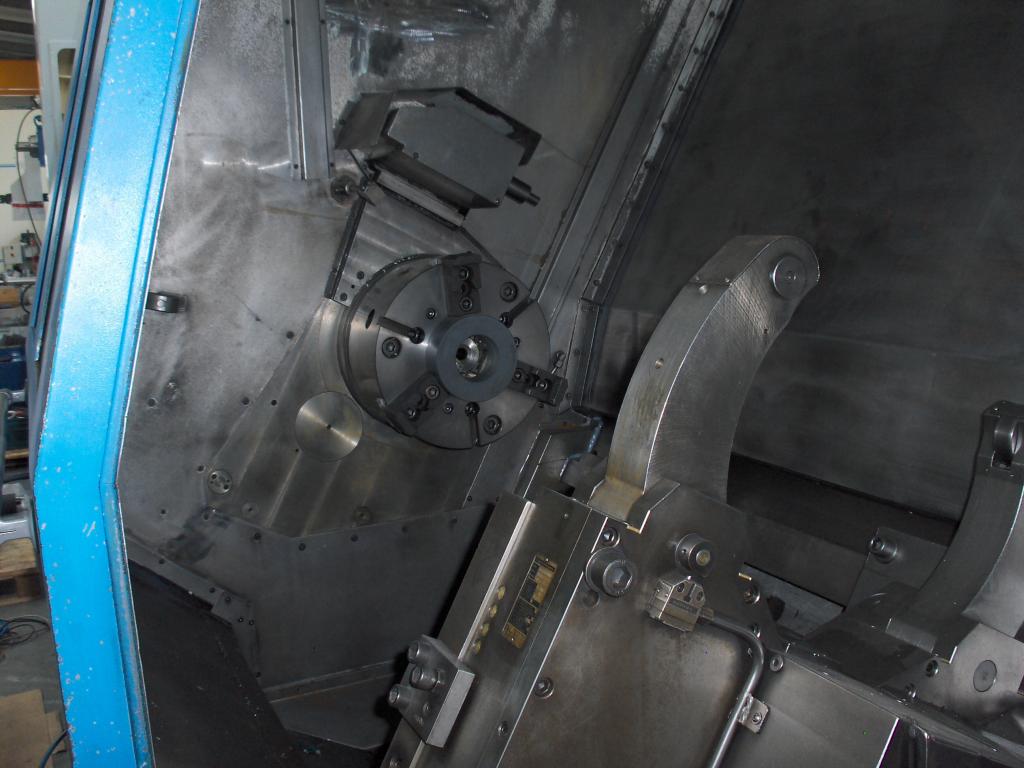

main spindle
| main spindle: | size 15, DIN 55026 |
| diameter in front bearing: | 200 mm |
| max. speed: | 1.800 min-1 |
| gear steps: | 4 (7-250, 14-490,28-1.000, 56-1.800 min-1) |
| power on 100/60 % ED: | 60/71 kW |
| torque 1.gear step 100/60%: | 6.370/7.500 Nm |
| C-axis max. speed: | 16 min-1 |

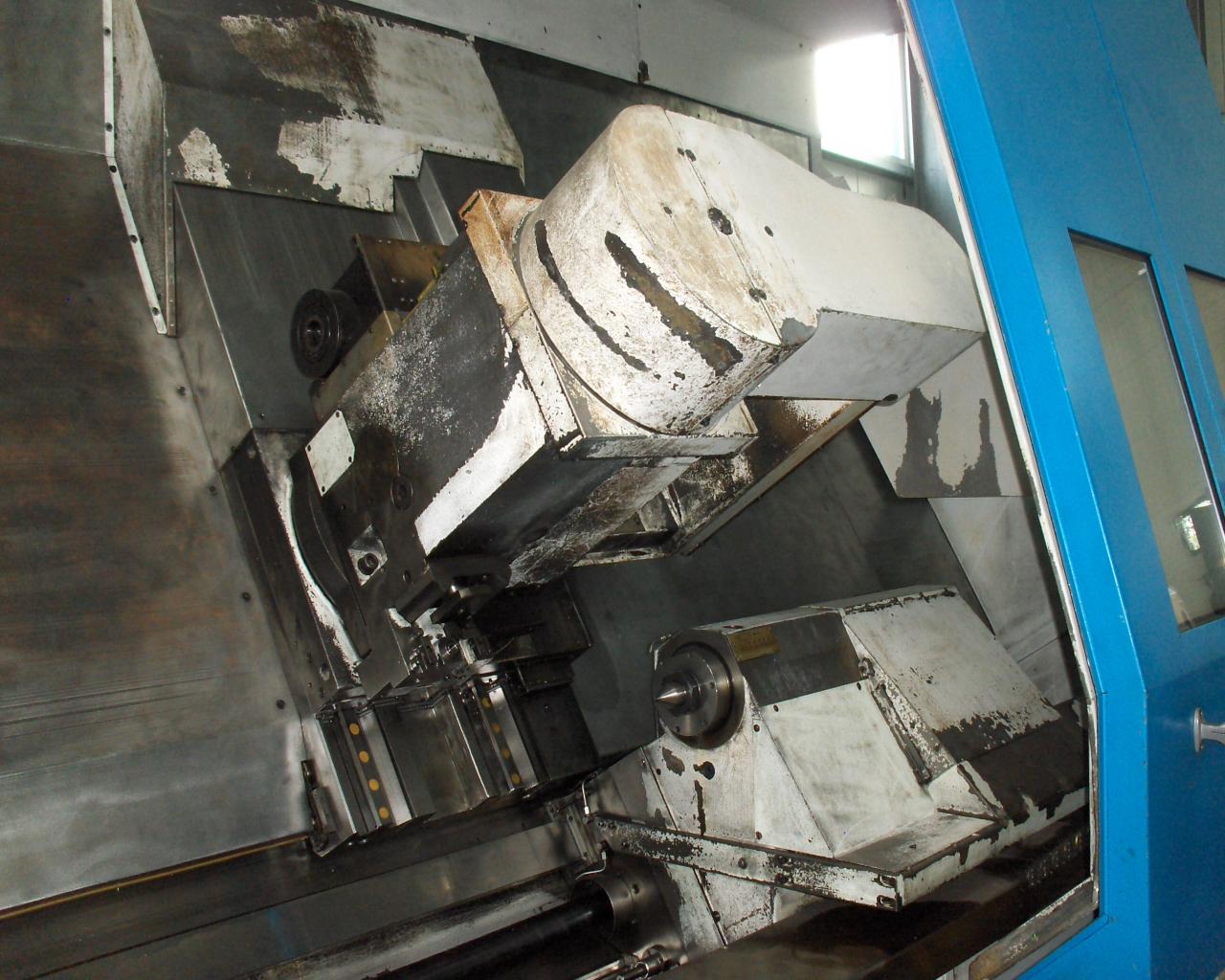

Turning-, Milling-, Boring Unit
| tool taper: | CAPTO C6/MM - prism for boring bars |
| speed range: | 56-3.000 min-1 |
| power on 100/40 % ED: | 20/30 kW |
| max. torque: | 300 Nm |
| trave Y-axis: | 250 mm (+125/-125 mm) |
| swivelling angle B-axis (milling spindle): | 270° each 1° indexing position |

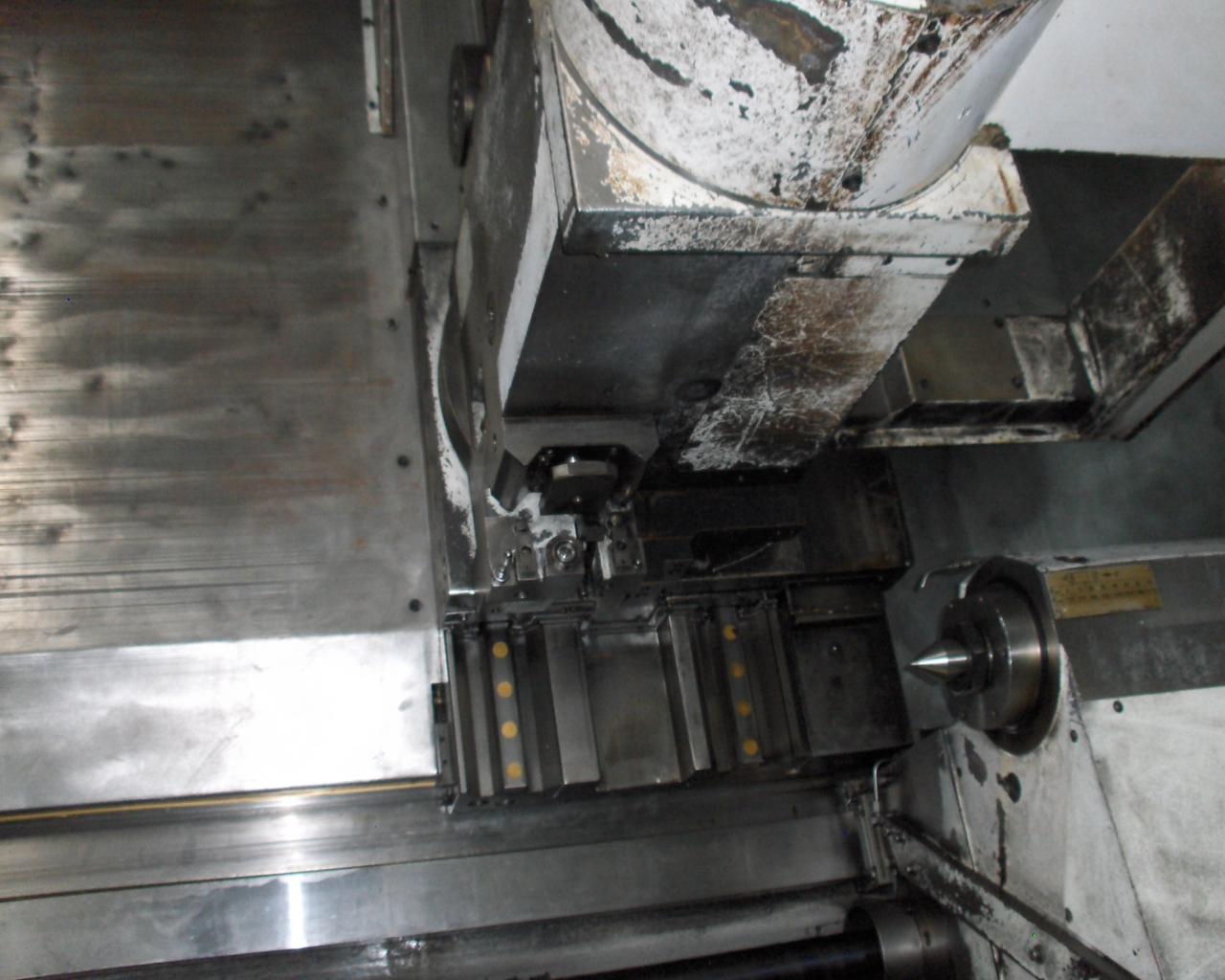

tailstock
| quill diameter: | 160 mm |
| quill stroke: | 160 mm |
| max. workpiece weight: | 4.000 kg (chuck+steady+tailstock) |
| tailstock = NC - moveable | |

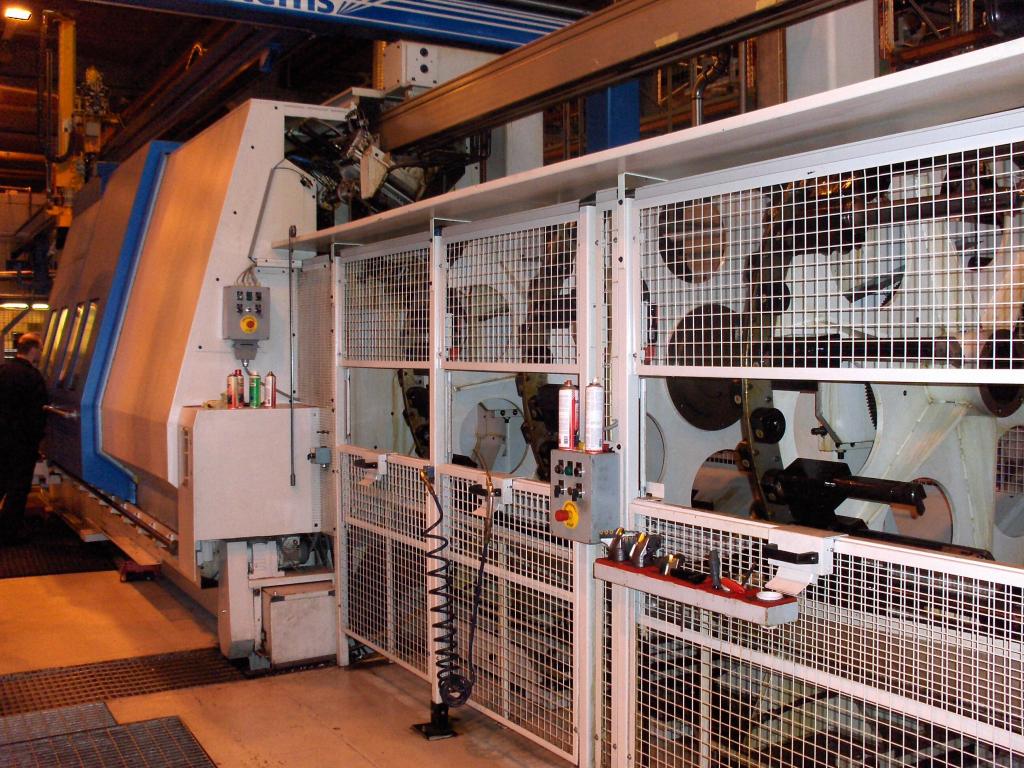

tool changer
| tool taper: | CAPTO C 6, MM - prism for boring bars |
| number of tool places: | 180 |
Accessories
| CNC – Lathe for Turning-, Milling- and Boring, Turning-, Milling-, Boring Unit with CAPTO 6 – tapers for Milling Operations and MAX MÜLLER prism taper for boring bars with 800 mm length, steady self centering Ø 75 – 408 mm, coolant equipment without tank and filtering unit however with pump display, coolant through milling spindle, 2 piece chip conveyor, chip breaking unit, power chuck Ø 400 mm, ca. 50 piece diverse tool tapers. |
