CNC Boring- and Milling Machine CASTEL RED 1T10 A 40
| manufacturer: |
CASTEL |
| type: |
RED 1T10 A 40 |
| built: |
1992 |
| control: |
HEIDENHAIN iTNC 530 |
Technichal Equipment / Features
| X-axis, lateral movement table |
3.100 mm |
| Y-axis, vertical movement spindle unit |
1.800 mm |
| Z-axis, longitudinal movemet column |
2.000 mm |
| W-axis, movement quill |
800 mm |

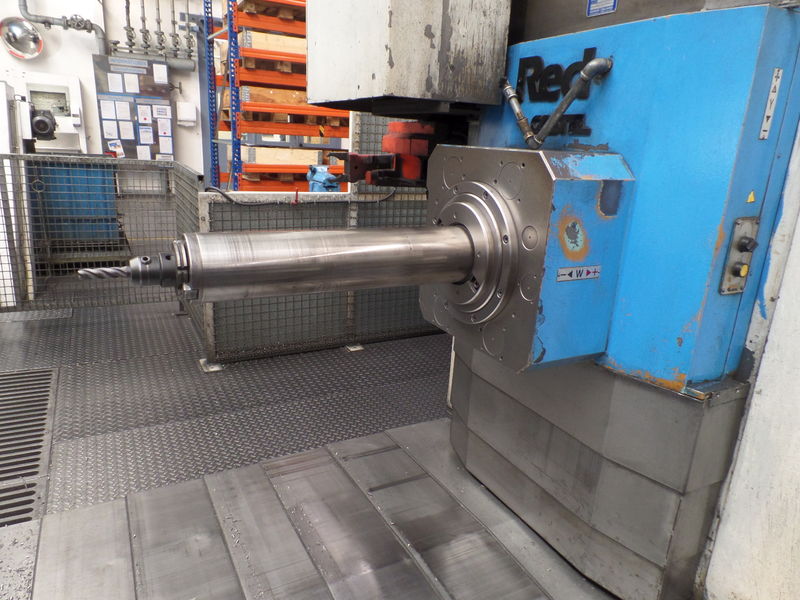

| working spindle: |
|
| quill diameter |
130 mm |
| spindle taper DIN 6987140 |
ISO 50 |
| spindle power |
37 kW |
| gear steps |
2 |
| torque gear step 1/2 |
2360/590 Nm |
| spindle speed |
4-2.500 min-1 |
| clamping table: |
|
| max. workpiece weigth |
10.000 kg |
| clamping size |
1.600 x 2.000 mm |
| no. of T-slots |
9 28H8 |
| measuring system resolution |
0,001 Grad |
| tool changer: |
|

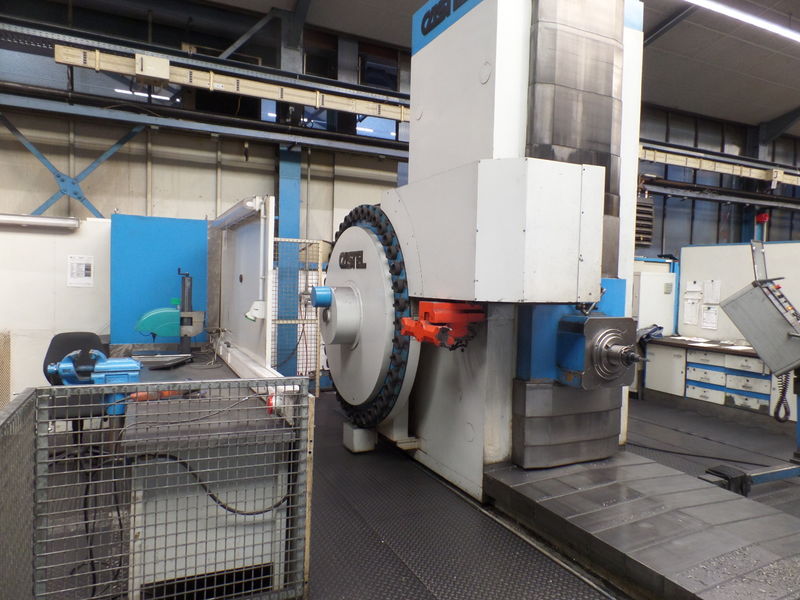

| drum magazine |
40-fold |
| feed range X-Y-Z axis |
0-10.000 mm/min |
| feed range W-axis |
0-8.000 mm/min |
| rapid feed X-axis |
10.000 mm/min |
| rapid feed Y, Z, W-axis |
8.000 mm/min |
| total weight |
38.500 kg |
| Length x Width x Height |
7,7 x 7,0 x 4,3 m |
| total connected load |
50 kVA |
| euqipment: |

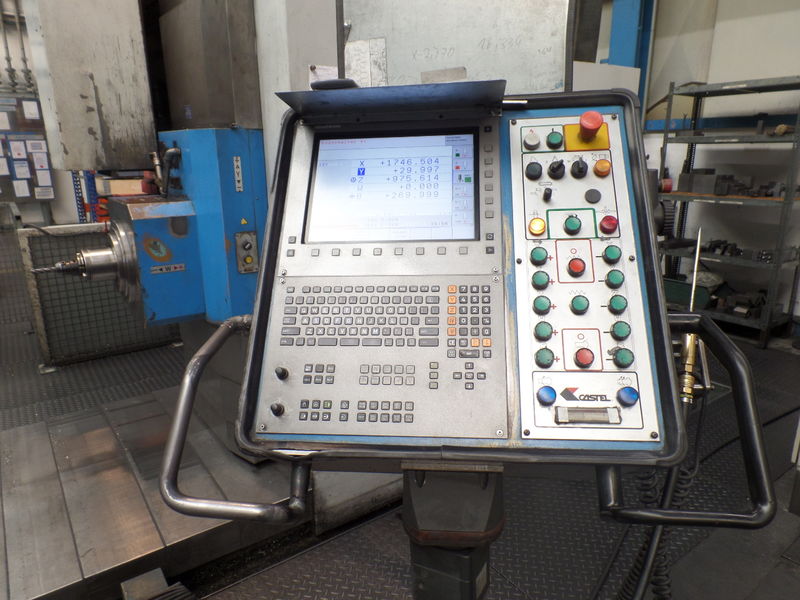

CNC-control HEIDENHAIN iTNC 530
tool changer 40-fold
coolant tank with pump
chip conveyor
basic equipment tool holder |
