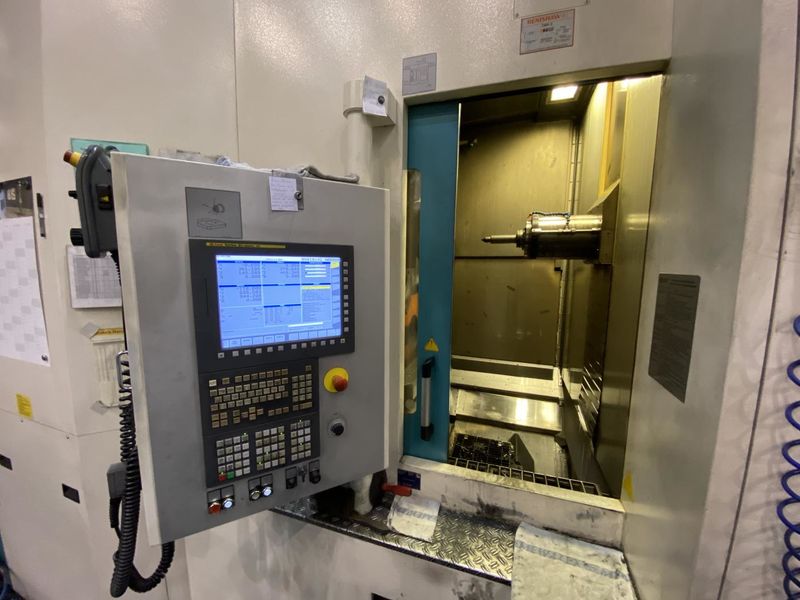

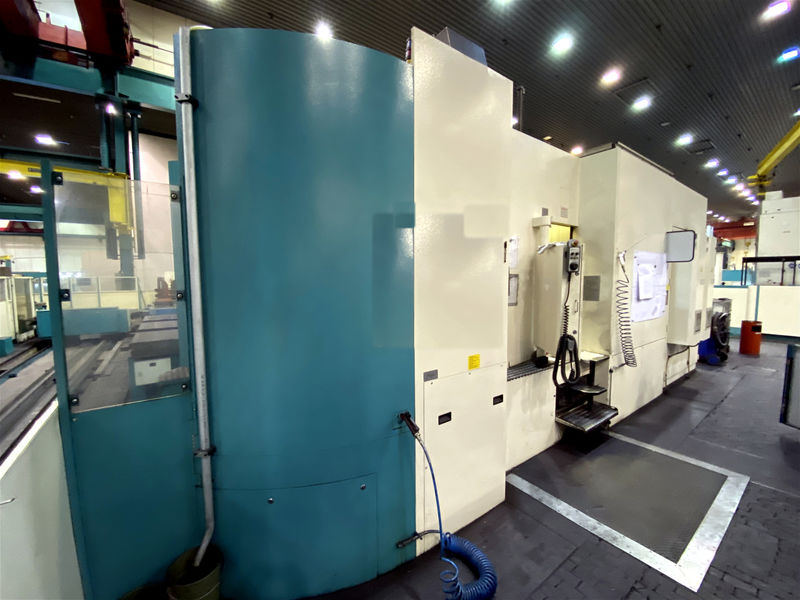

CNC-Horizontal Machining Center
STARRAG HECKERT HEC 800 ATHLETIC
Video about the machine
Details
| Make: | STARRAG HECKERT |
| Type: | HEC 800 ATHLETIC |
| Built: | 2009 |

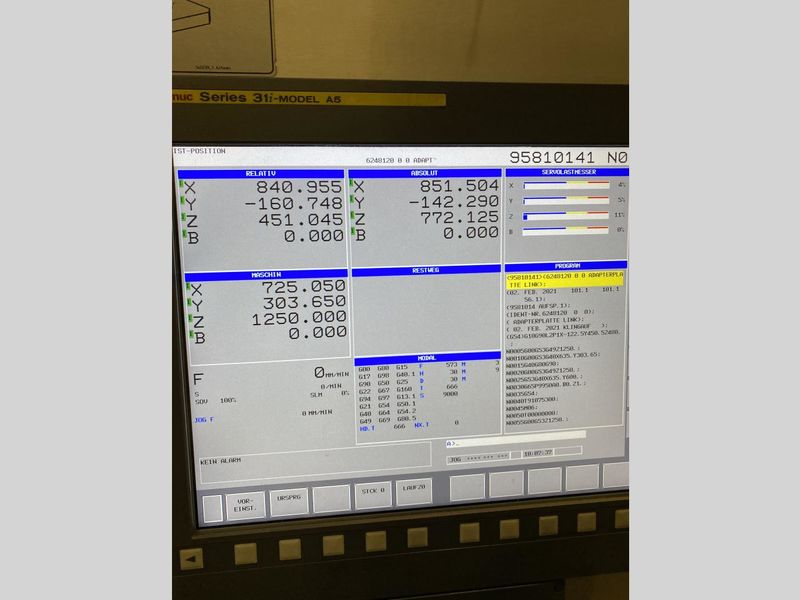

| Control: | FANUC Series 31i Model A5 |
Request a quote
Equipment & accessories
- 2-fold pallet changer
- 3 separate set-up stations with threaded hole pallets 800 x 1.000 mm
- Tool magazine with 165 places HSK-A 100, own operating terminal on the magazine side, make SIEMENS
- NC-rotary table, increment 0,001°
- Main spindle 6.000 min-1, 2 gear steps
- 3D-measuring probe make RENISHAW
- Electronical handwheel
- Machine enclosure with completely closed working area
- Chip conveyor
- Coolant unit with filter and booster pumps, internal coolant feed
- Exhaust mounted on the machine cover
- Program running hours approx ca. 18.200 h
| Travels | |
| X-Axis (headstock cross) | 1.450 mm |
| Y-Axis (headstock vertical) | 1.300 mm |
| Z-Axis (table longitudinal) | 1.300 mm |
| B-Axis (NC-rotary table) | 360.000° |
| max. workpiece size (Ø x height) | Ø1.750 x 1.400 mm |
| NC-rotary table | |
| pallet size | 800 x 1.000 mm threaded holes DIN55201 |
| smalles increment | 0,001° |
| reduced moment of inertia for payload | 250 kgm² |
| max. table load in center | 2.000 kg |
| Feed, rapid traverse | |
| feed range in X-Y-Z-Axis | 1-60.000 mm/min |
| feed force in X-Y-Z-Axis 100% ED | 20/18/20 kN |
| rapid traverse in X-Y-Z-Axis | 60 m/min |
| rapid traverse B axis (NC-rotary table) | 60 m/min |
| Main spindle | |
| diameter in front bearing | 100 mm |
| max. power, ED 100/60% | 37/45 kW |
| max. torque, ED 100/60% | 1.230/1.500 Nm |
| max. speed | 6.000 min-1, 2 gear steps |
| tool holder | HSK-A 100 DIN 69893 |
| Coolant system | |
| Connection to central coolant supply system | [nbsp] |
| Cooling lubricant unit with backwash filter | [nbsp] |
| low pressure circuit | ca. 2,5 bar ca. 125 l/min |
| internal cooling through the spindle centre | ca. 80 bar ca. 30 l/min |
| Tool magazine, tool changer | |
| Tower magazine with 180 storage locations in 3 towers | [nbsp] |
| 15 memory locations for extra-long tools between 450 and 800 mm realized in the storage. | [nbsp] |
| This reduces the total number of storage units by 15 to 165. | [nbsp] |
| max. tool Ø | 110 mm, secondary pitch occupied |
| tool holder | HSK-A 100 |
| tool Ø with restriction | 250 mm, secondary pitch free |
| tool length max. | 450/800 mm |
| tool weight max. | 35 kg |
| max. tool weight per tower | 600 kg |
| chip -to-chip time up to 12 kg / over 12 kg | ca. 5,0 / ca. 8,2 sec |
| pallet change time | ca. 20 sec |
| Machine dimensions & connection data | |
| space requirement | ca. 8,2 x 6,0 x 4,6 m |
| machine weight | ca. 31.000 kg |
| connected load | 90 kW |
| supply fuse | 160 A |
| operating frequency | 50 Hz |
| operating voltage | 400 V 3 AC |
