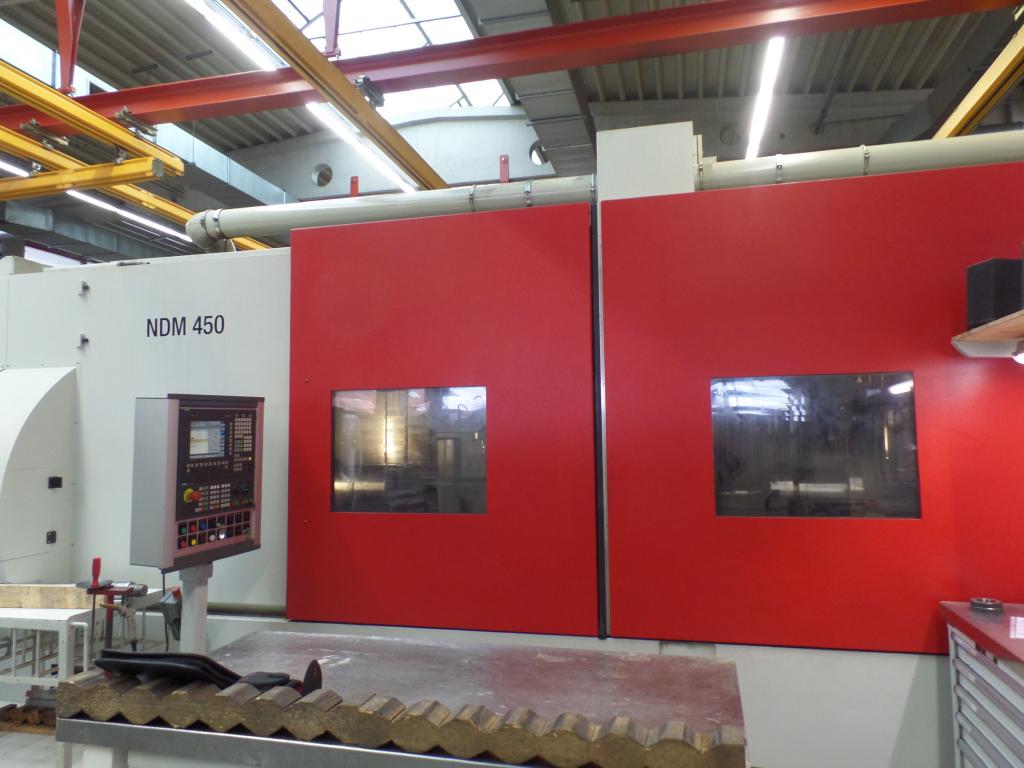

used CNC-Turning and Milling Machine MAG NDM 450-4-300
| manufacturer: |
MAG |
| type: |
NDM 450-4-300 |
| built: |
2008 |
| control: |
SINUMERIK 840 D - power line |
| |
|

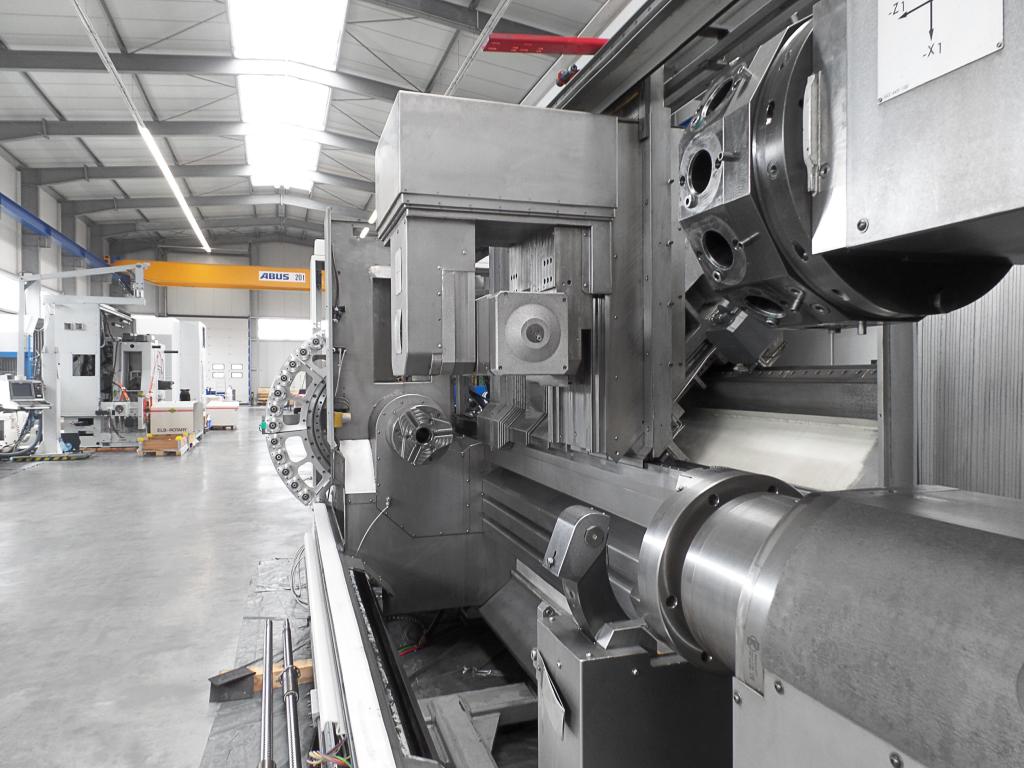

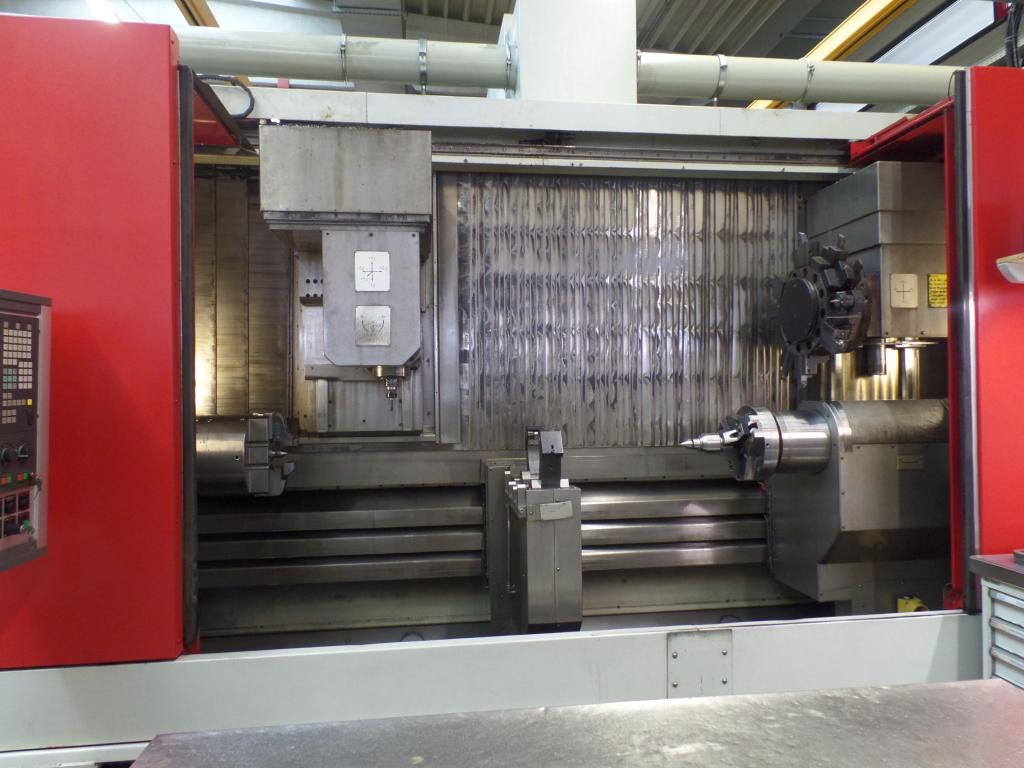

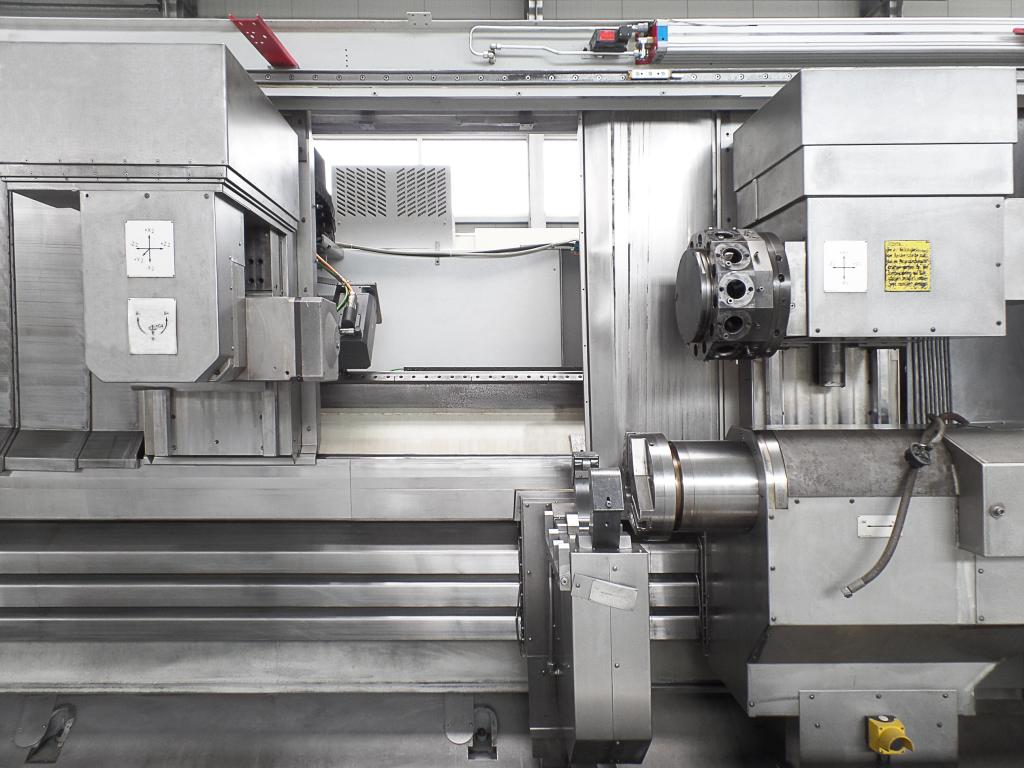

Very stable (32 to.) CNC turning and milling centre with Y- and B-axis, tool changer, steady rest and counter spindle for complete machining of workpieces up to 3,000 mm length.
Comparable manufacturers and types:
- WFL M40-G x 3,000 mm
- DMG MORI CTX GAMMA 3000 TC
Technical Equipment/Features
| working area: |
|
| swing Ø over bed |
700 mm |
| swing Ø over X-carriage |
600 mm |
| turning Ø |
450 mm |
| turning length |
3.000 mm |
| main spindle: |
|
| integrated spindle motor with C-axis |
0,01° |
| spindle nose DIN 55026 Typ A |
size 8 |
| spindle bore |
100 mm |
| spindle diameter in front bearing |
150 mm |
| clamping chuck |
FORKARDT 3 QLC/K315 |
| max. power, ED 40 % |
95 kW |
| max. torque, ED 40 % |
800 Nm |
| spindle speed |
0-3.100 min-1 |
| counter spindle: |
|
| integrated spindle motor with C-axis assembled at lower NC-carriage |
0,01° |
| spindle nose DIN 55026 Typ A |
size 8 |
| spindle bore |
100 mm |
| spindle diameter in front bearing |
150 mm |
| clamping chuck |
FORKARDT 3 QLC/K315 |
| drive power, ED 40 % |
95 kW |
| max. torque, ED 40 % |
800 Nm |
| spindle speed, max. |
0-3.100 min-1 |
| longitudinal travel |
3.100 mm |
| feed max. |
30 m/min |
| max. feed force, ED 100/25 % |
10/18 kN |
| diameter ball screw |
50 mm |
| measuring system W-axis |
rotativ |
| turn-mill spindle carrier at upper left carriage: |
|
| with integrated Y-axis under 45° |
|
| X-Y-Z-axis |
455 x +/-75 x 2.600 mm |
| rapid feed X-Y-Z |
30 m/min |
| max. working feed X-Y-Z |
15.000 mm/min |
| measuring system X- and Y-axis |
direkt |

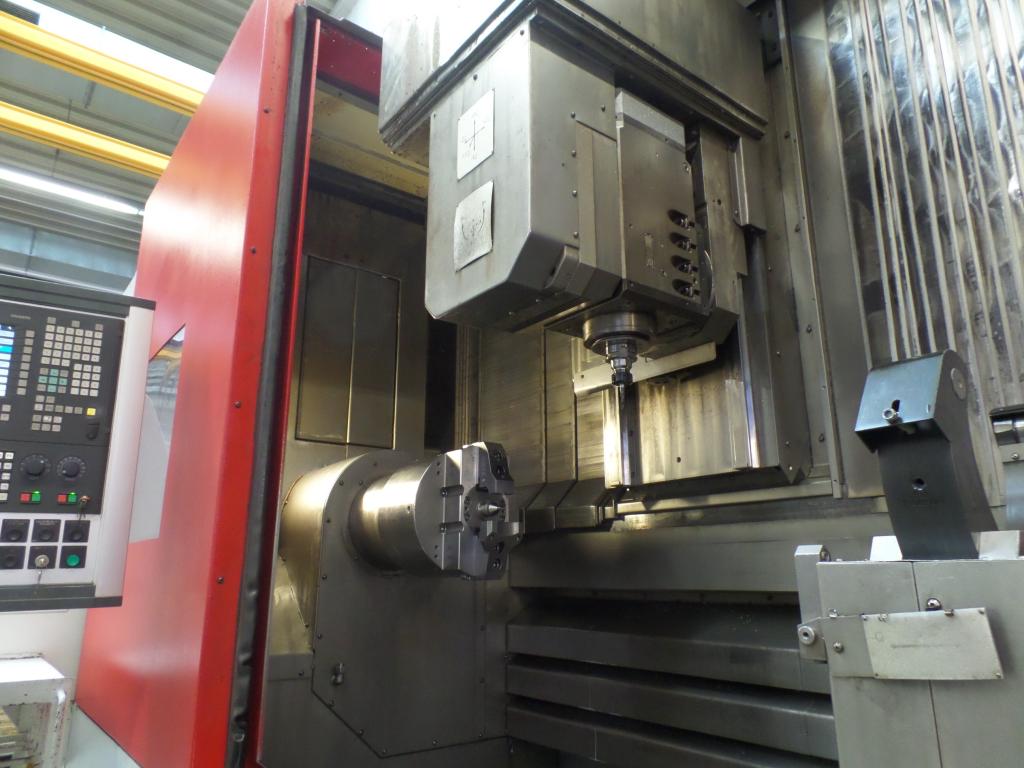

| B-axis on that upper left carriage with integrated motor spindle: |
|
| max. power, ED 100/40 % |
35/48 kW |
| max. torque, ED 40 % |
128 Nm |
| swivel range B-axis |
+/- 105° |
| tool taper |
HSK-A 63 |
| spindle speed max. |
7.000 min-1 |
automatic tool changer for B-axis with HSK-A 63 interface
|
|
tool magazine with 40 pc. tool places for HSK-A 63 tool tapers
|
nbsp] |

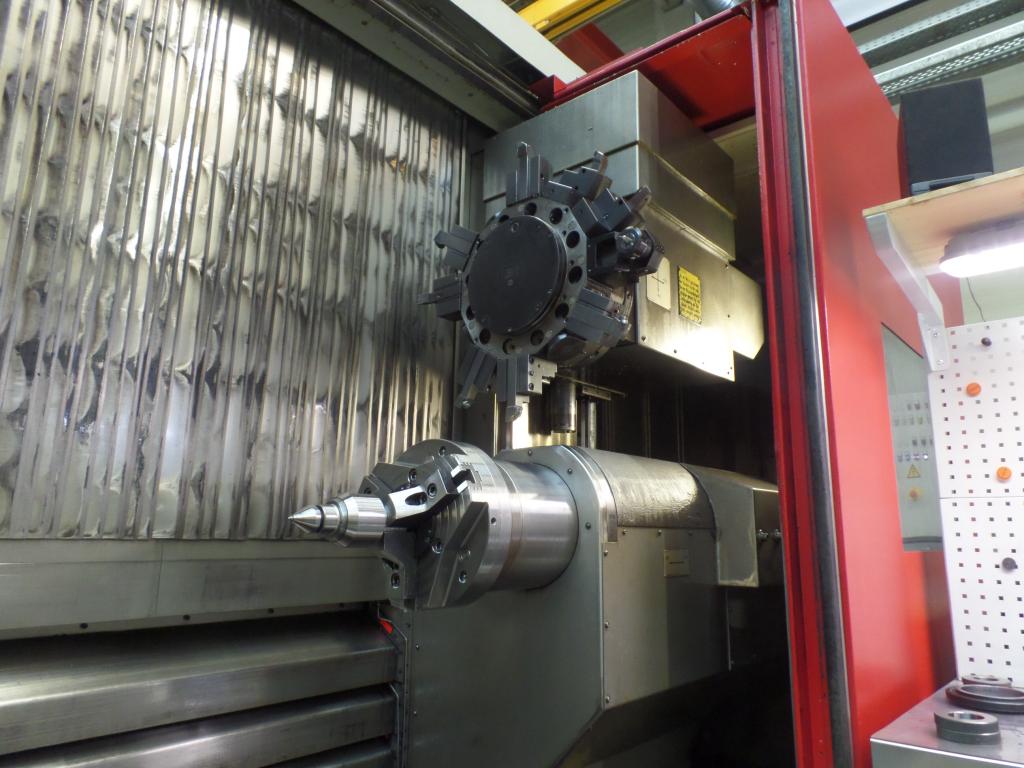

longitudinal and cross slide at upper right carriage
|
|
| with 12-fold tool turret with driven tools: |
|
| cross travel (X2) |
265 mm |
| longitudinal travel (Z2) |
3.050 mm |
| rapid feed Z-axis |
30 m/min |
| rapid feed X-axis |
15 m/min |
| max. feed power, ED 100/25 % |
10/18 kN |
| tool taper |
VDI 50 |
| max. speed of driven tools |
3.200 min-1 |
| max. power of driven tools 25% |
10 kW |
| max. torque of driven tools 25% |
100 Nm |
| NC-carriage lower left: |
|
| equipped with self-centering steady |
SMW SLU 5 |
| clamping range |
50-310 mm |
| rapid feed |
15 m/min |
| CNC-control: |
|
| SIEMENS, SINUMERIK 840 D power line |
|
