used 5-axis High Speed Machining Centre FIDIA K 199
| manufacturer: |
FIDIA |
| type: |
K 199 |
| built: |
2007 |
| control: |
FIDIA C 20 |
Typical area of application:
- three-dimensional milling on high speed
- scanning of models with storing of tool path
- three-dimensional measuring
Technical Equipment/Features
| working area: |
|
| X-axis |
1.800 mm |
| Y-axis |
900 mm |
| Z-axis |
850 mm |
| table size |
2.000 x 1.250 mm |
| max. table load |
12.000 kg |
| travels: |
|
| X-axis (longitudinal) |
1.650 mm |
| Y-axis (lateral) |
750 mm |
| Z-axis (vertical) |
850 mm |
| A-axis (milling head pitch) |
+95/-110° |
| C-axis (milling head roll) |
+/- 200° |
| rapid feed |
30 m/min |
| speeding up max. |
4 m/sec2 |

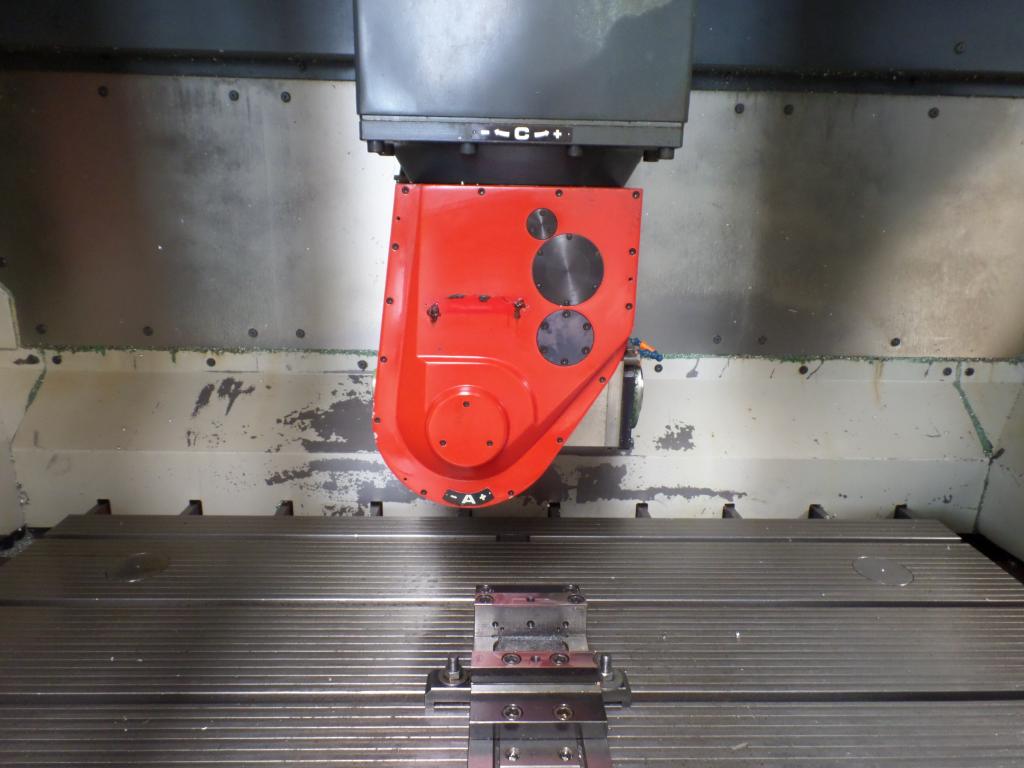

5-axis-milling head M5A/55-24 and milling spindle
|
|
Design of turning- and tilting head allows constant adjustment of working spindle in space. Rotation of A-axis and C-axis takes place via brushless motors an is transmitted by encoders which are mounted directly on the axis.
The control regulates the alignement of the head by constant interpolation and compensates the position of tool centre according to the spindle inclination.
The two swivelling axis A and C can be locked by hydraulically controlled devices in any position.
|
travel C-axis
|
+/- 200° |
| speed C-axis |
2.000°/min |
| Offset C-axis to spindle centre |
+95/-11° |
| travel A-axis |
850 mm |
| speed A-axis |
2.000 °min |
| spindle |
|
| max. power (S6-60%) |
55 kW |
| spindle speed |
240-24.000 U/min |
| speed continuos |
6.000 x 24.000 U/min |
| torque (S6-60%) |
87,5 Nm |
| spindle position encoder |
Resolver |
| spindle lubrication |
minimal air-oil mixture |
| unlocking tool taper (DIN 69893) |
HSK 63A |
| internal diameter in front bearing |
70 mm |
| external diameter of spindle |
210 mm |
| tool changing system: |
|
| no. of places |
24 St. |
| max. tool diameter |
100/75 mm neighbourplaces free/engaged |
| max. tool length |
300 mm |
| max. tool weight |
8 kg max. chain weight 140 kg |

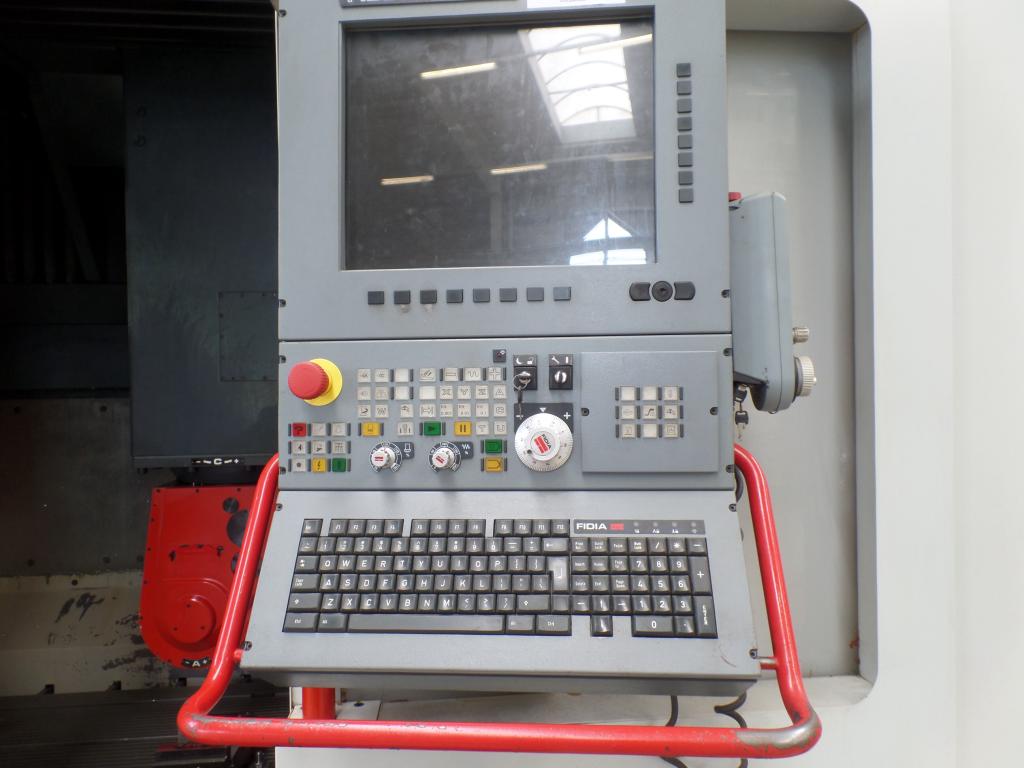

| NC-control FIDIA C 20 |
control with WINDOWS XP, CPU Pentium 4 - at least 2,8 GhZ and 512 MB RAM storage, 80 GB hard disc.
Incl. Programming language ISOGRAPH 2D 1/2 with DWG/DXF - interface
The integrated Software package HIMILL enables the creation of 3D-milling paths with interactive menus. HIMILL works in parallel with all other NC functions and includes:
- functions for reading defined surfaces, file formats IGES, VDA-FS and STL
- reading out digital files
- generation of STL models for reverse engineering
- independent scale factores on 3 axes
- reversal stamp/matrix
- interactive definition of a large number of milling areas and guided lines on the model
- roughing cycles with toric, flat and spherical cutters
- for high-speed milling, suitable roughing and finishing cycles
- "Pencil tracing" with toric, flat and spherical cutters
- control head 3 + 2 axis
- high-resolution graphical display of models
- recording of the residual material and guided optimization of the following milling areas
- storage of parameter sets
- automatable system for delayed calculations
|
| measurement: |
|
| L x W x H |
ca. 6,0 x 5,0 x 4,2 m |
| measurement ground plan |
ca. 5,1 x 4,7 m |
| machine weight |
ca. 15.000 kg |
equipment, accessories
|
- several tool tapers HSK 63
- 3D-touch probe manufacturer m&h, type RWP 38.47
- FIDIA HMS/01 HEAD MEASURING SYSTEM
measuring system for measurement and calibration of bi-rotary milling heads
- low pressure-coolant unit with coolant pump and separate tank,
capacity 300l
- 3 St. chip conveyor, 2 screw conveyor on the side of the table and a scraper conveyor across
- cooling unit for spindle cooling
- cooling unit for cooling of axis
- dust exhausting system, manufacturer LOSMA
- electronical handwheel FIDIA HPX21
- 2-axis milling head M5A/55-24
|
